Outside Temperature Display

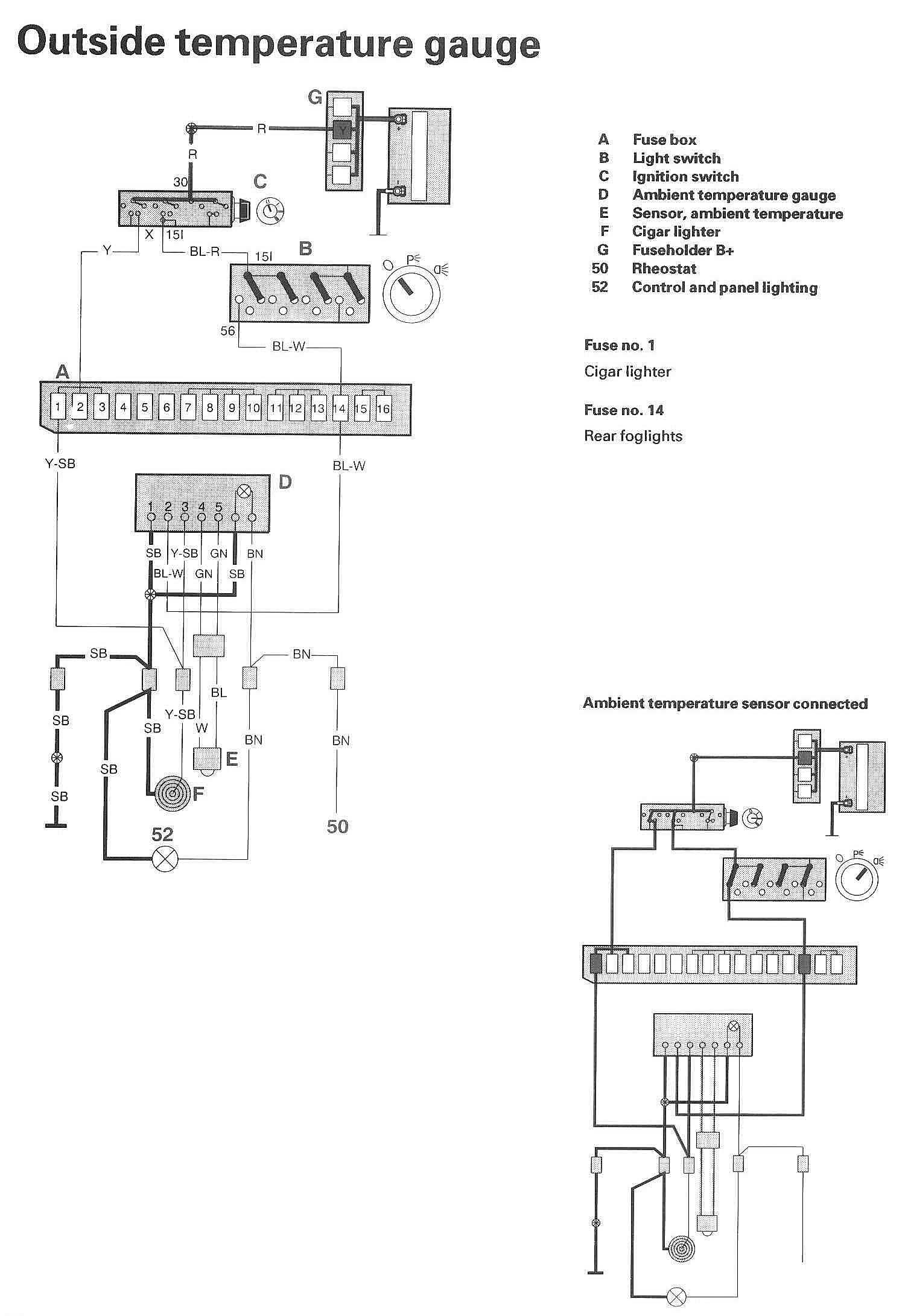

Wiring Diagrams:

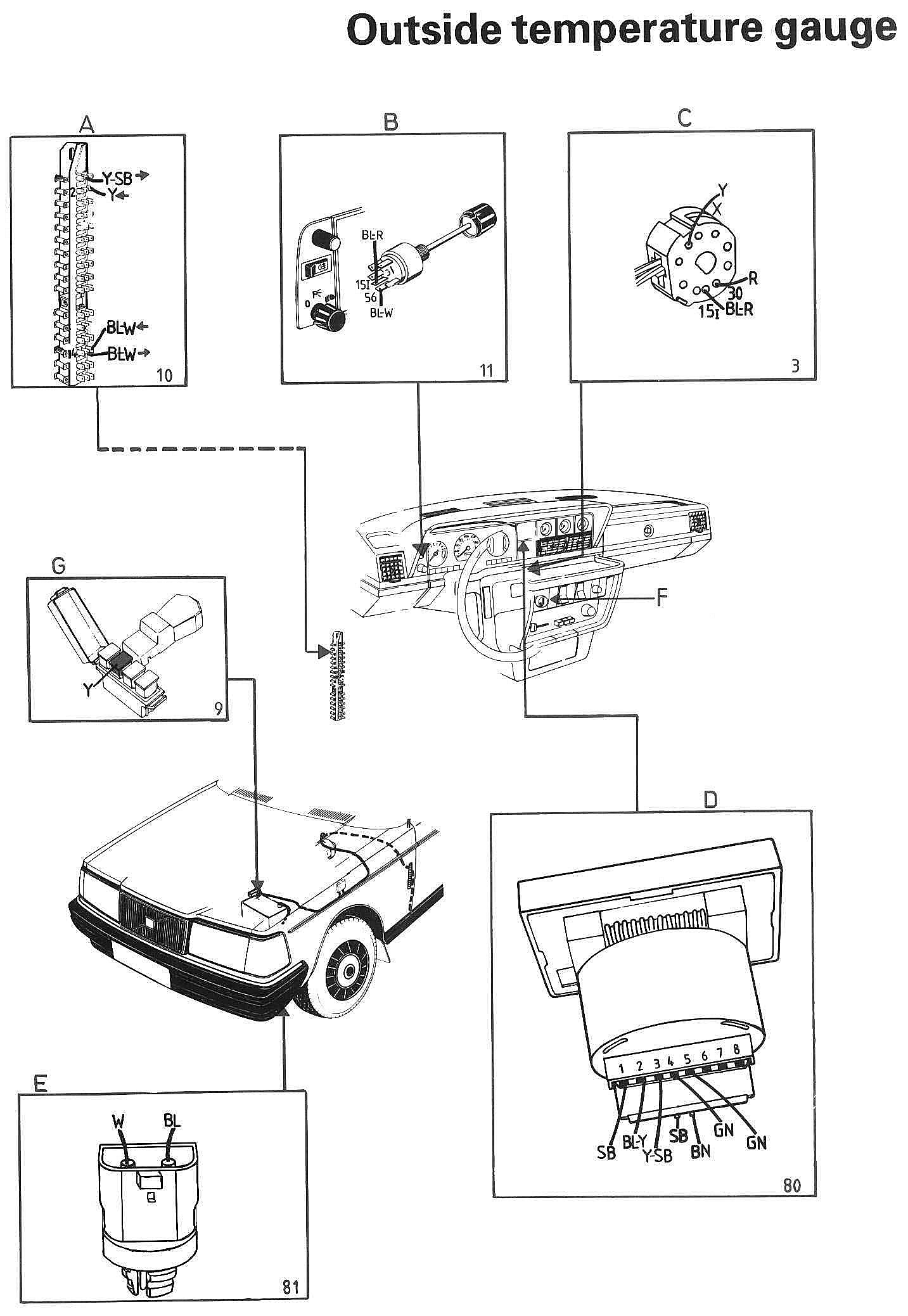

Component / Connector Views:

LEGEND
A Fusebox
B Light switch
C Ignition switch
D Ambient temperature gauge
E Sensor, ambient temperature
F Cigar lighter
G Fuse holder B+

50 Rheostat
52 Control and panel lighting
