Trailer Lighting Module

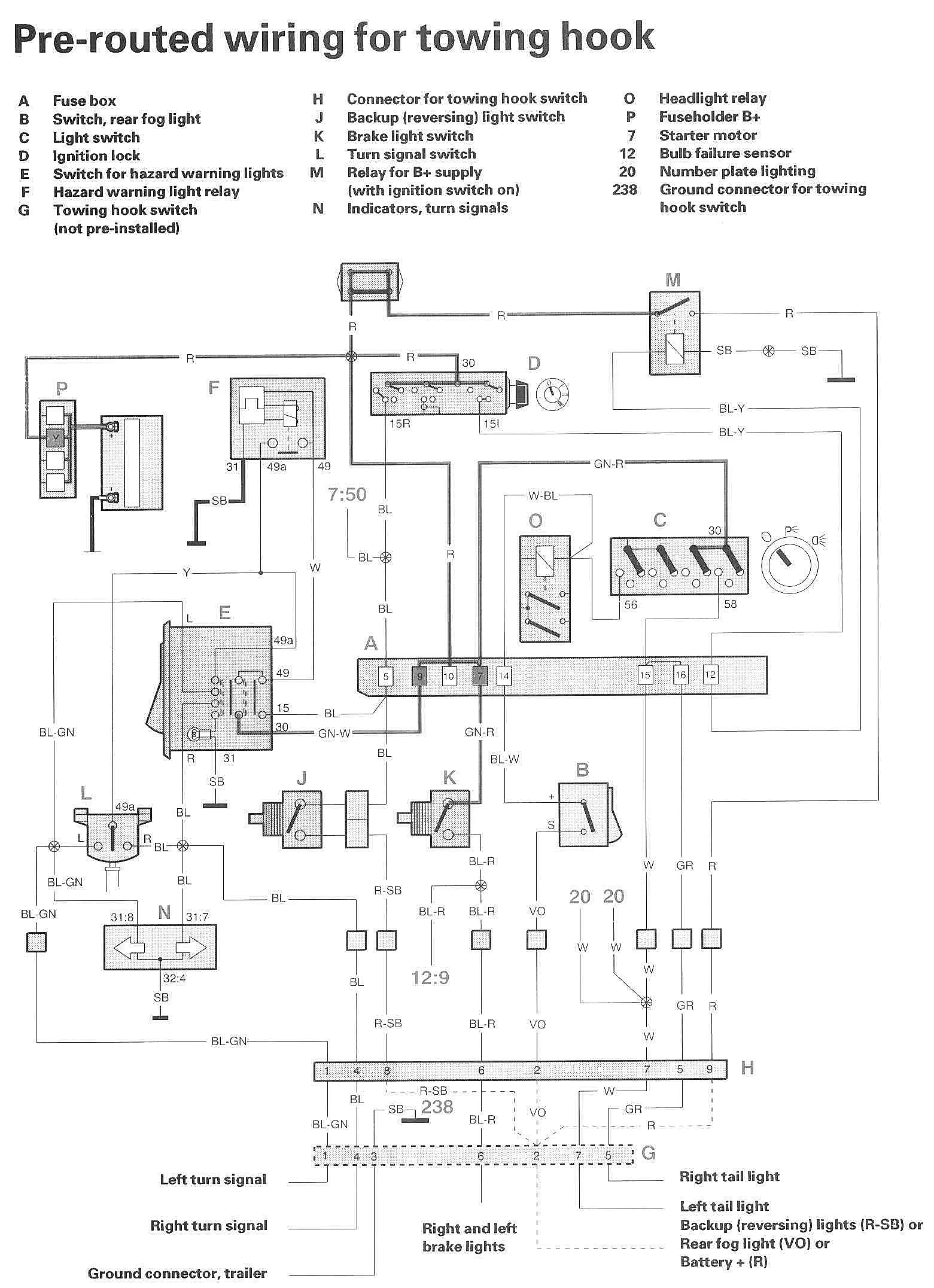

Wiring Diagrams:

Component / Connector Views:

LEGEND
A Fusebox
B Switch, rear fog light
C Light switch
D Ignition lock
E Switch for hazard warning lights
F Hazard warning light relay
G Towing hook switch (not pre-installed)
H Connector for towing hook switch
J Backup (reversing) light switch
K Brake light switch
L Turn signal switch
M Relay for B+ supply (with ignition switch on)
N Indicators, turn signals
O Headlight relay
P Fuse holder B+

7 Starter motor

12 Bulb failure sensor
20 Number plate lighting

238 Ground connector for towing hook switch
