Trunk Lamp

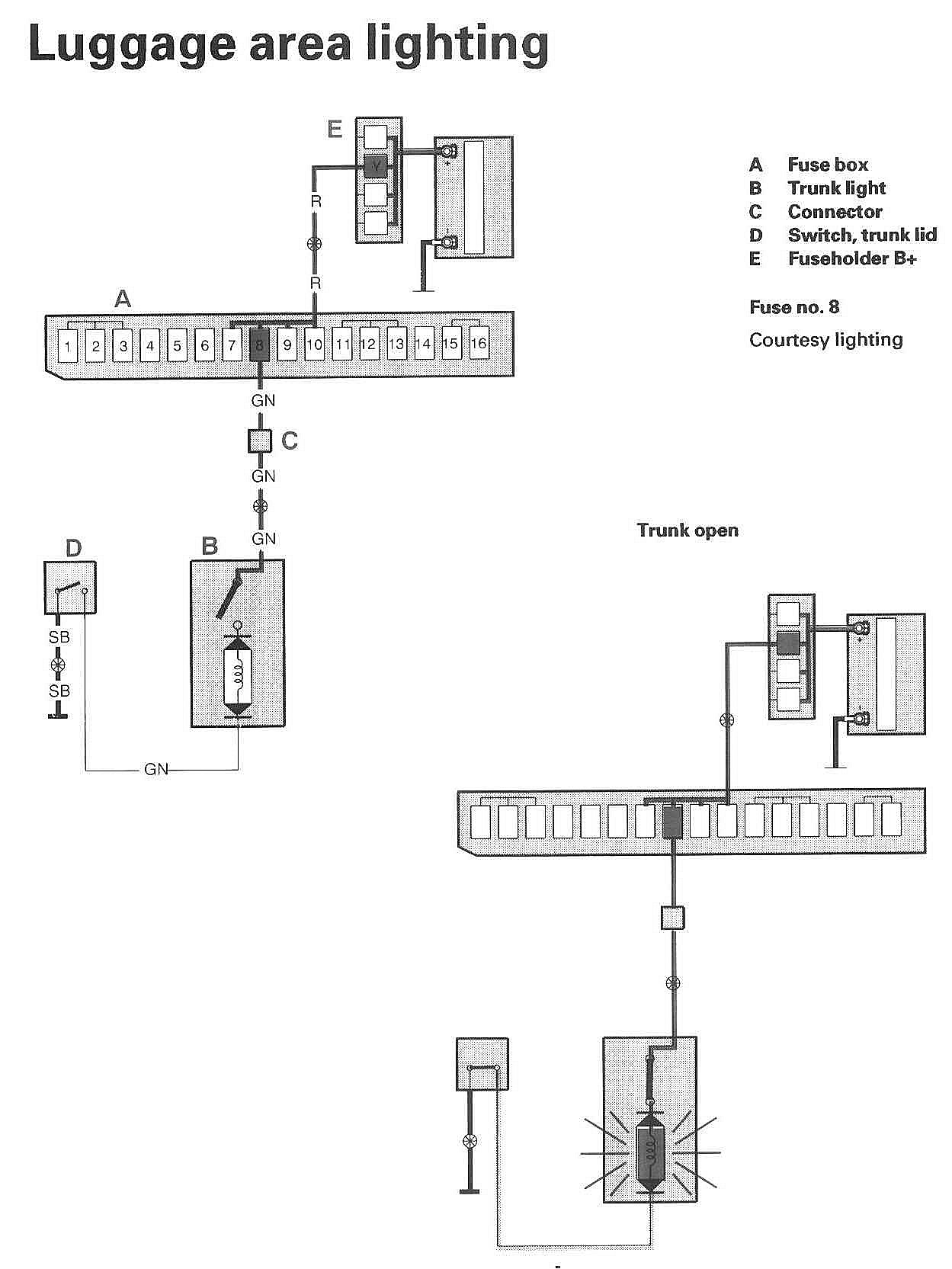

Wiring Diagrams:

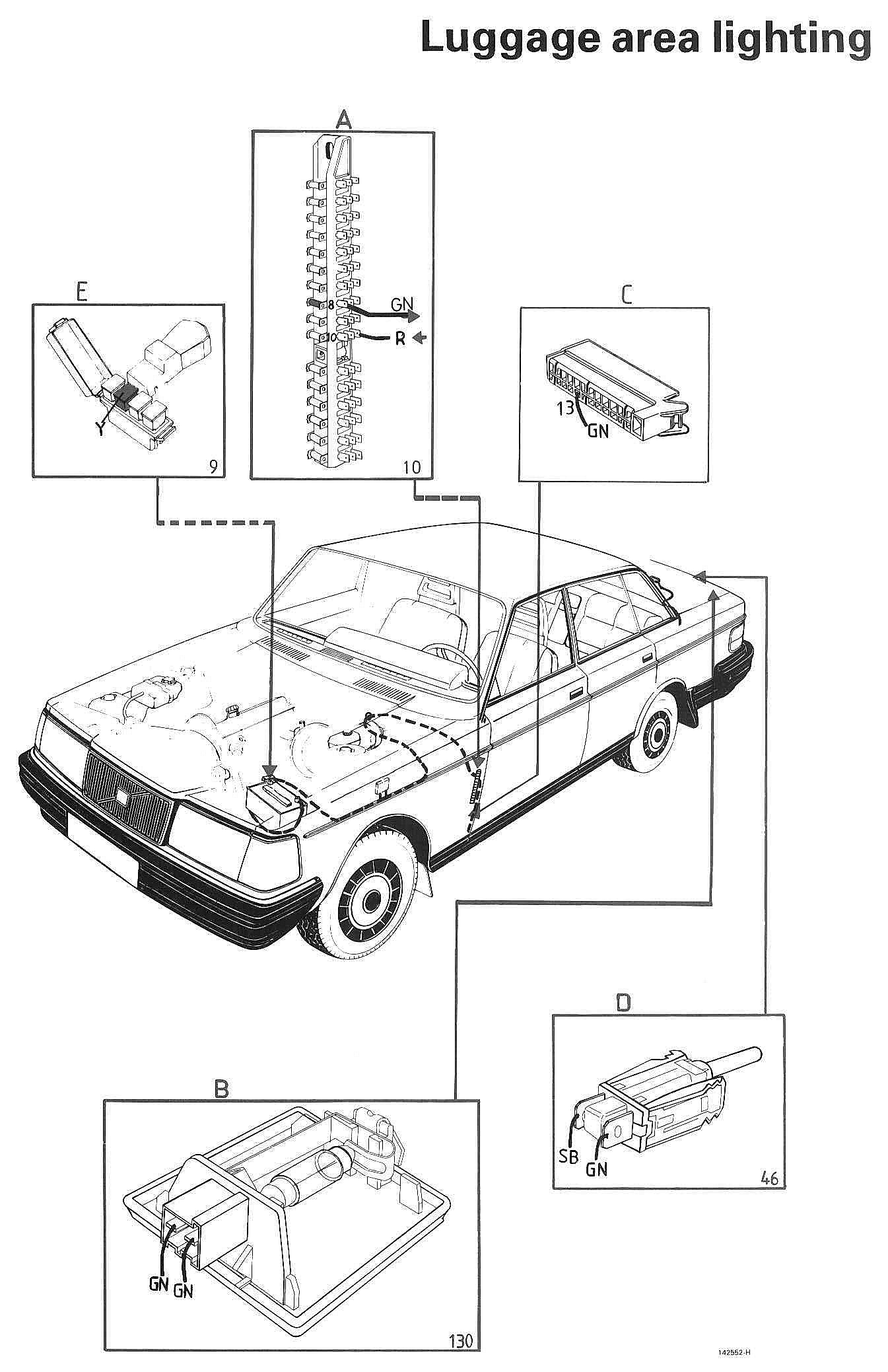

Component / Connector Views:




LEGEND
A Fusebox
B Trunk light
C Connector
D Switch, trunk lid
E Fuse holder B+
