System Diagram

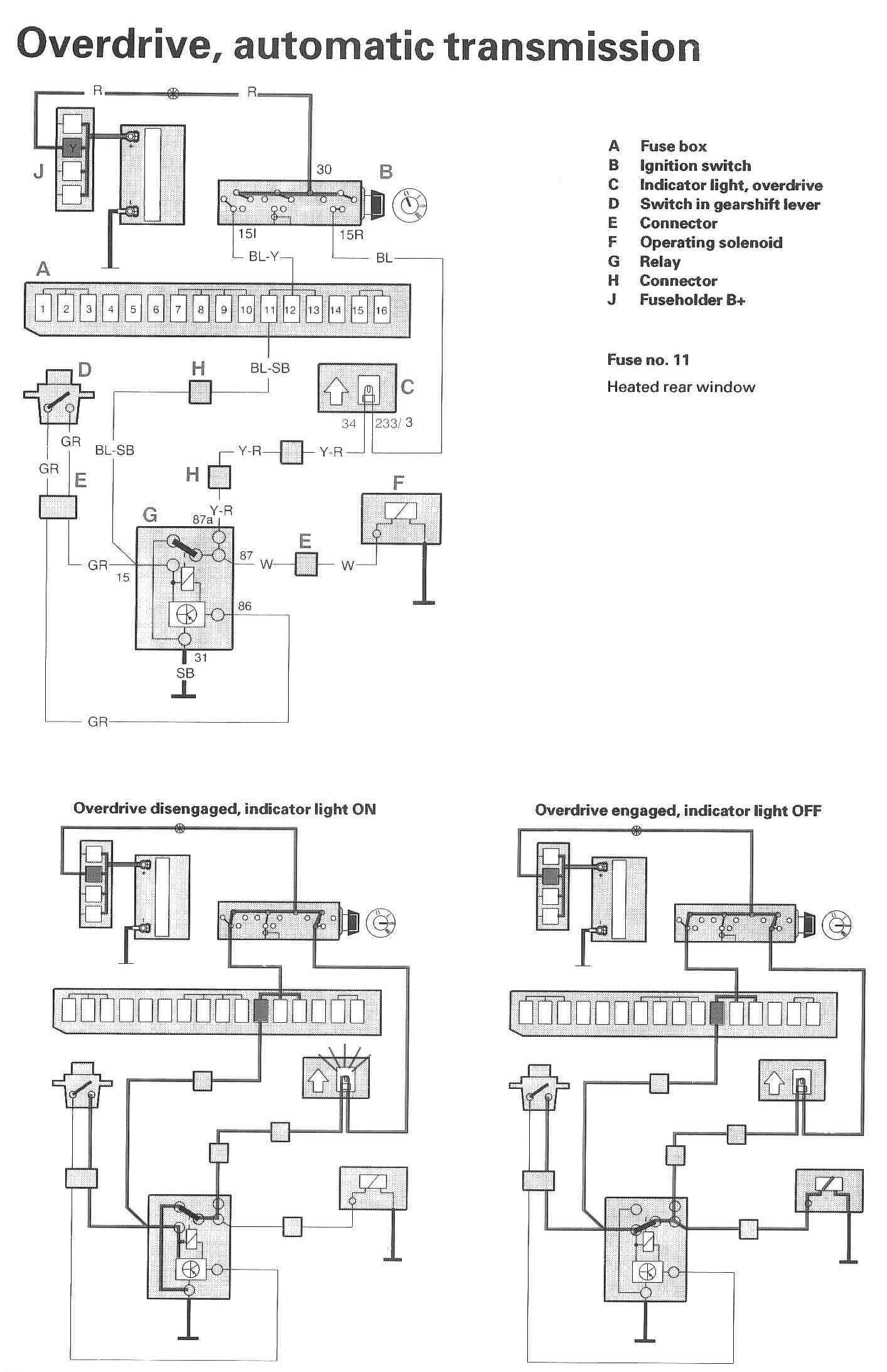

Wiring Diagrams:

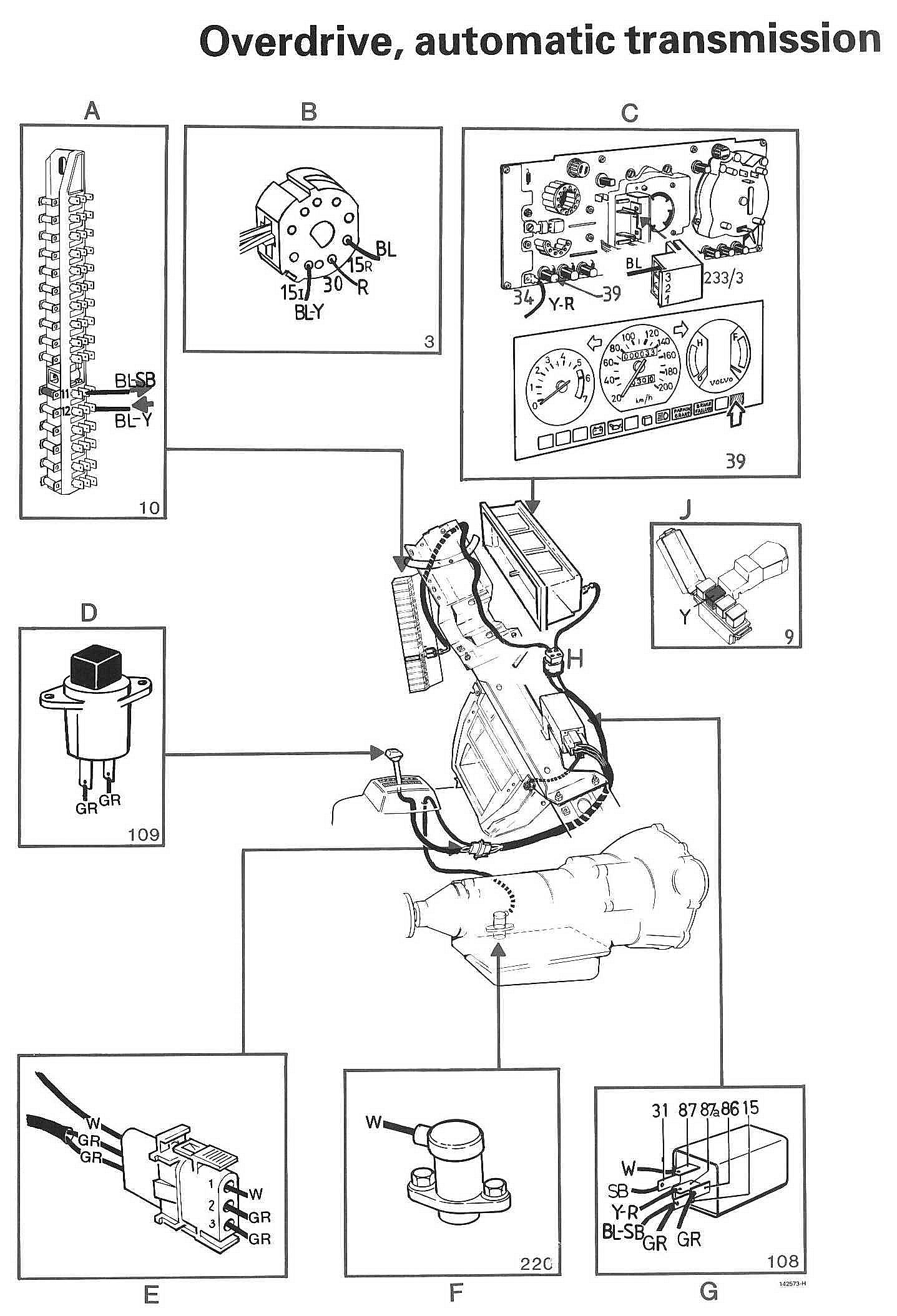

Component / Connector Views:

LEGEND
A Fusebox
B Ignition switch
C Indicator light, overdrive
D Switch in gearshift lever
E Connector
F Operating solenoid
G Relay
H Connector
J Fuse holder B+
