System Diagram

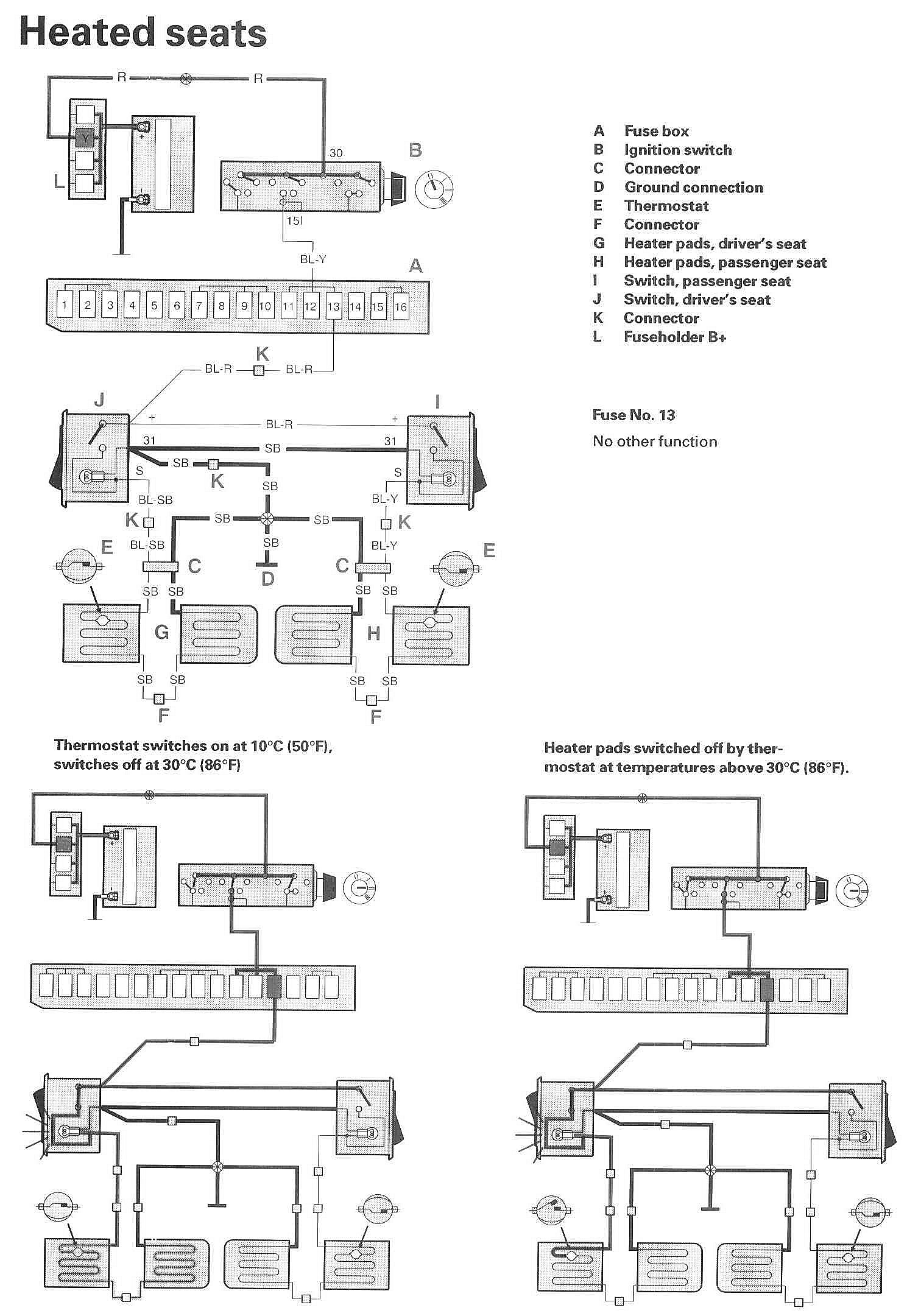

Wiring Diagrams:

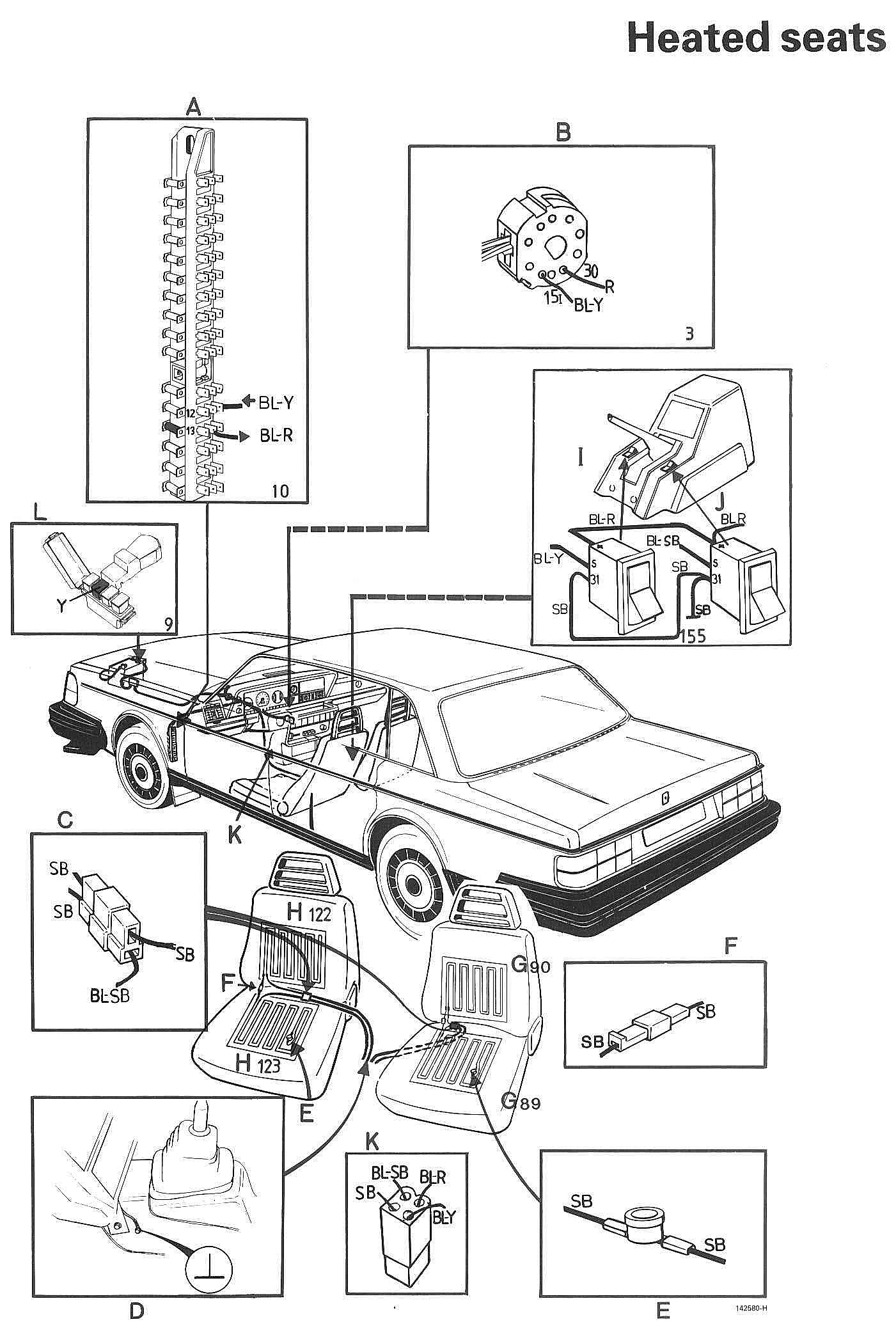

Component / Connector Views:

LEGEND
A Fusebox
B Ignition switch
C Connector
D Ground connection
E Thermostat
F Connector
G Heater pads, driver's seat
H Heater pads, passenger seat
I Switch, passenger seat
J Switch, driver's seat
K Connector
L Fuse holder B+
