System Diagram

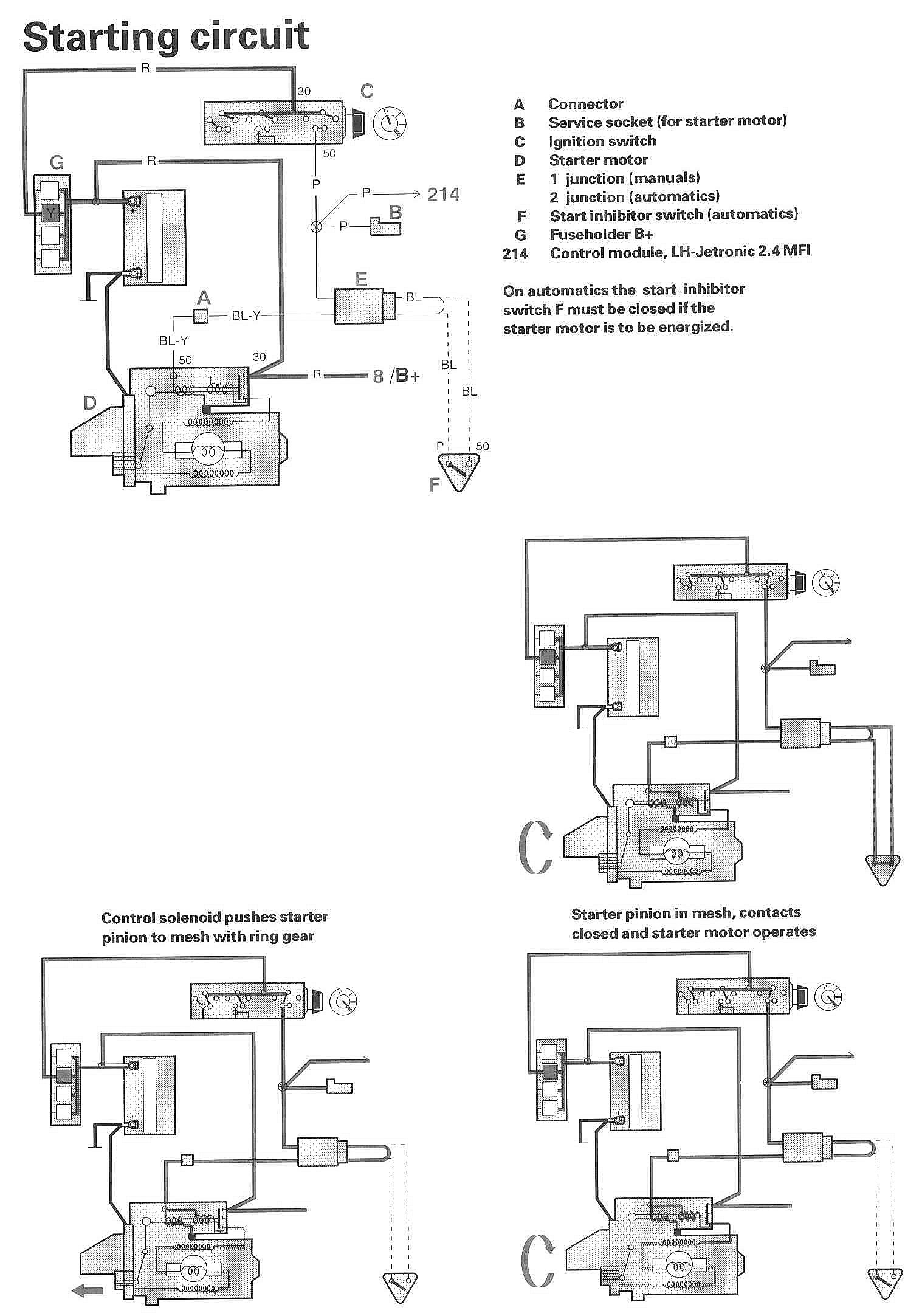

Wiring Diagrams:

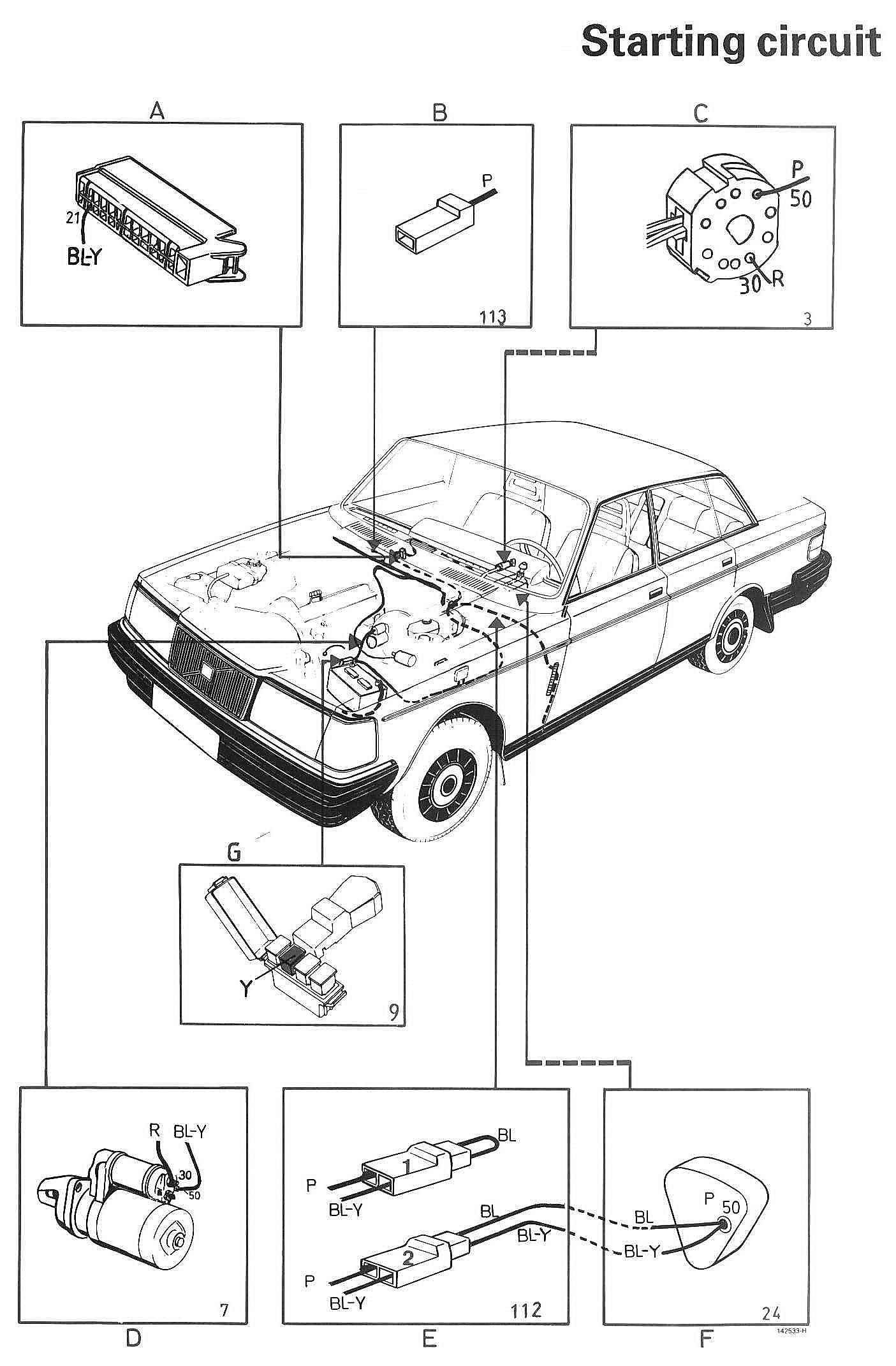

Component / Connector Views:

LEGEND
A Connector
B Service socket (for starter motor)
C Ignition switch
D Starter motor
B 1 junction (manuals)
2 junction (automatics)
F Start inhibitor switch (automatics)
G Fuse holder B+

214 Control module LH-Jetronic 2.4 MFI
