Courtesy Light, Front

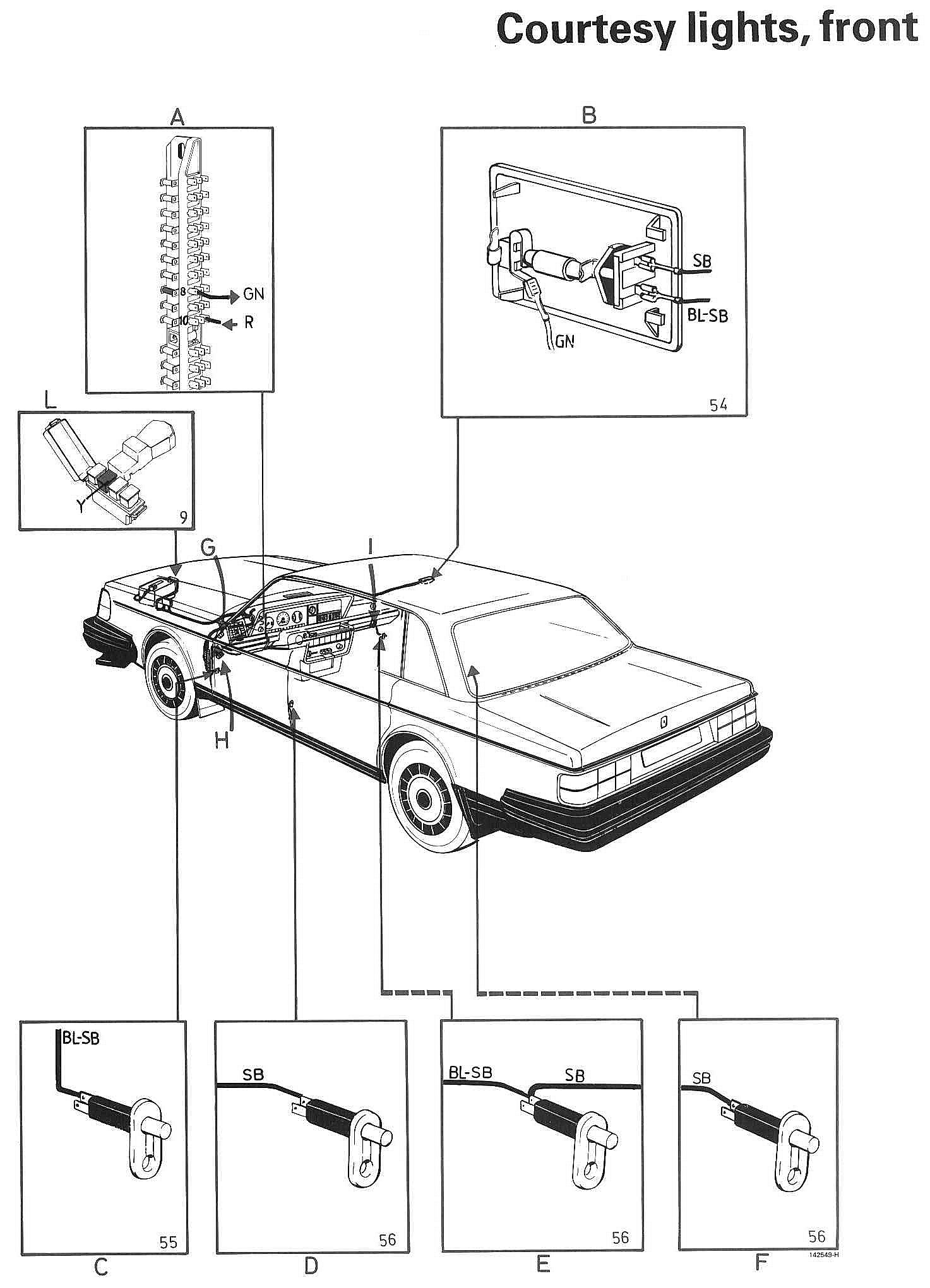

Component / Connector Views:

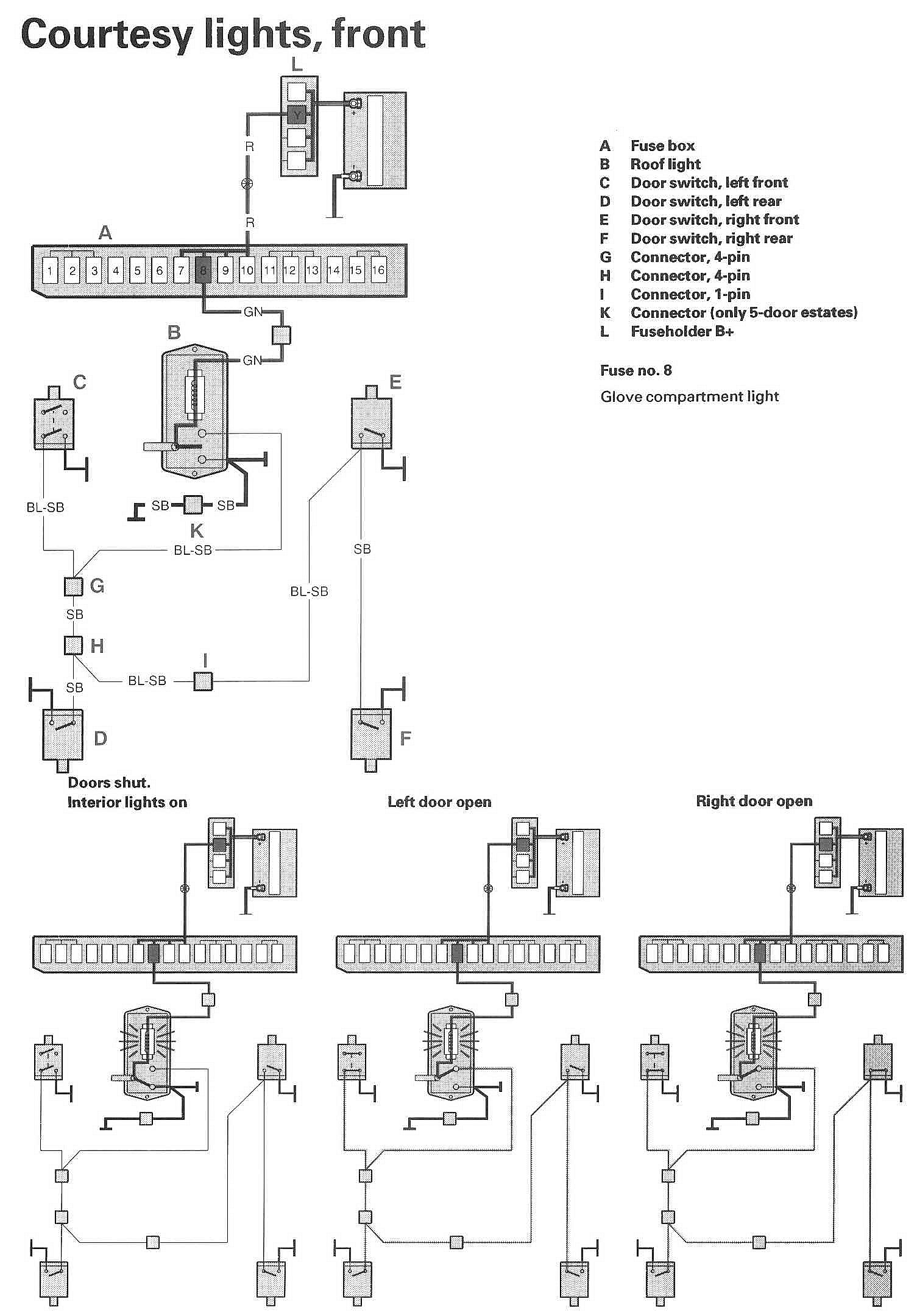

Wiring Diagrams:

LEGEND
A Fusebox
B Roof light
C Door switch, left front
D Door switch, left rear
E Door switch, right front
F Door switch, right rear
G Connector, 4-pin
H Connector, 4-pin
I Connector, 1-pin
K Connector (only 5-door estates)
L Fuse holder B+
