Brake Lights With High Level Brake Light (USA)

Wiring Diagrams:

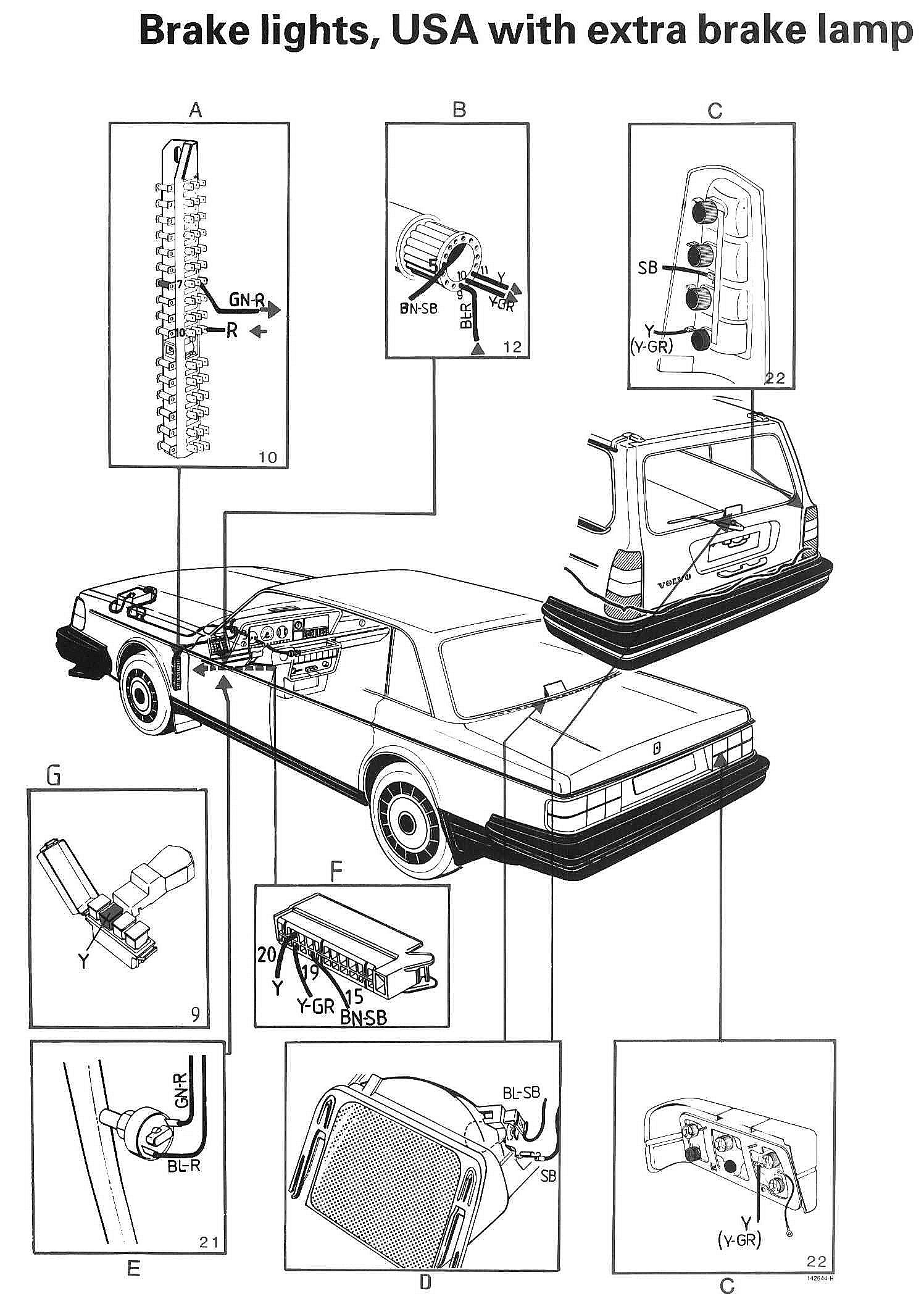

Component / Connector Views:

LEGEND
A Fusebox
B Bulb failure sensor
C Brake lights
D Extra brake light
E Brake light connector
F Connector
G Fuse holder B+
