Direction Indicators and Hazard Warning Lights

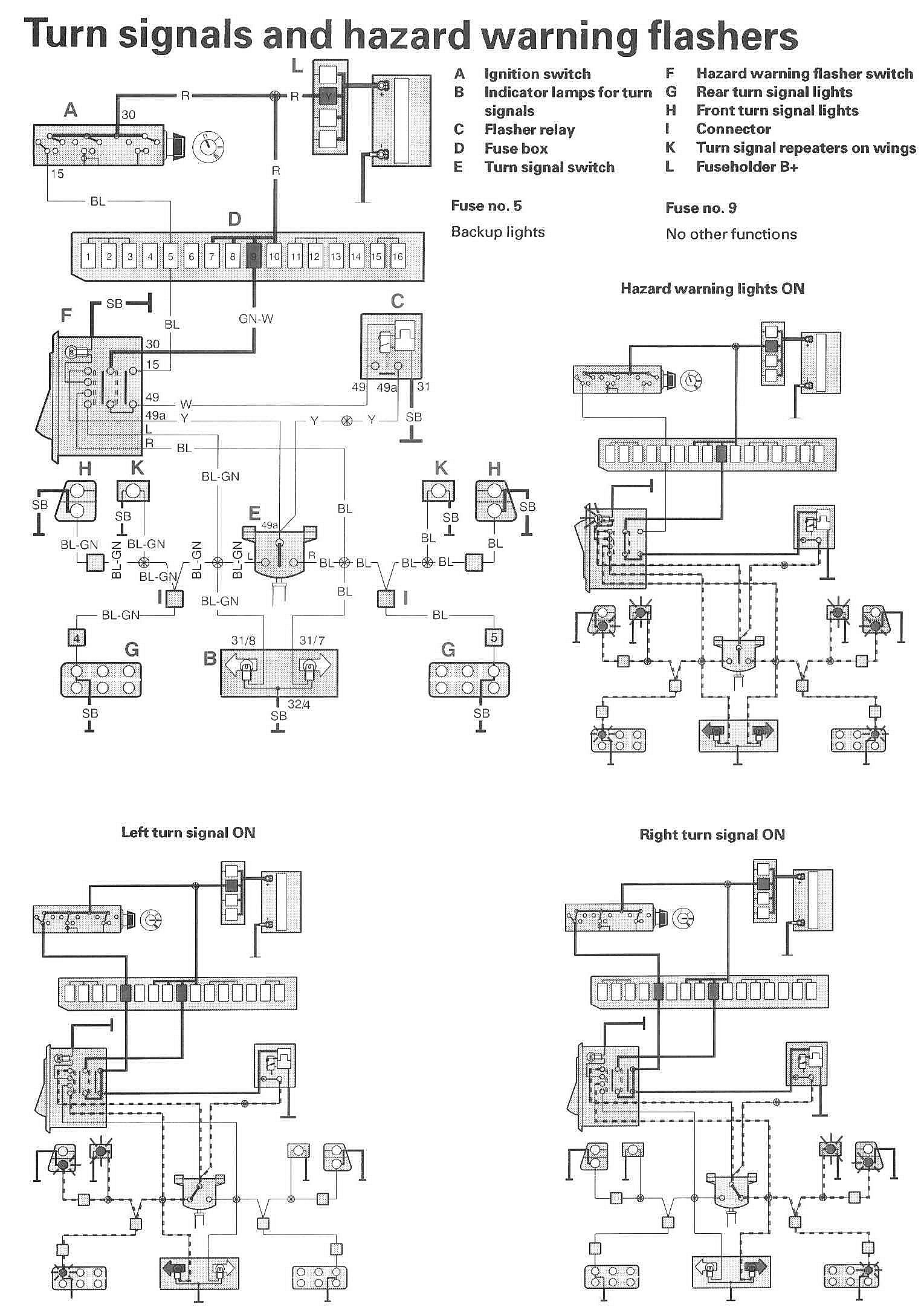

Wiring Diagrams:

Component / Connector Views:

LEGEND
A Ignition switch
B Indicator lamps for turn signals
C Flasher relay
D Fusebox
E Turn signal switch
F Hazard warning flasher switch
G Rear turn signal lights
H Front turn signal lights
I Connector
K Turn signal repeaters on wings
L Fuse holder B+
