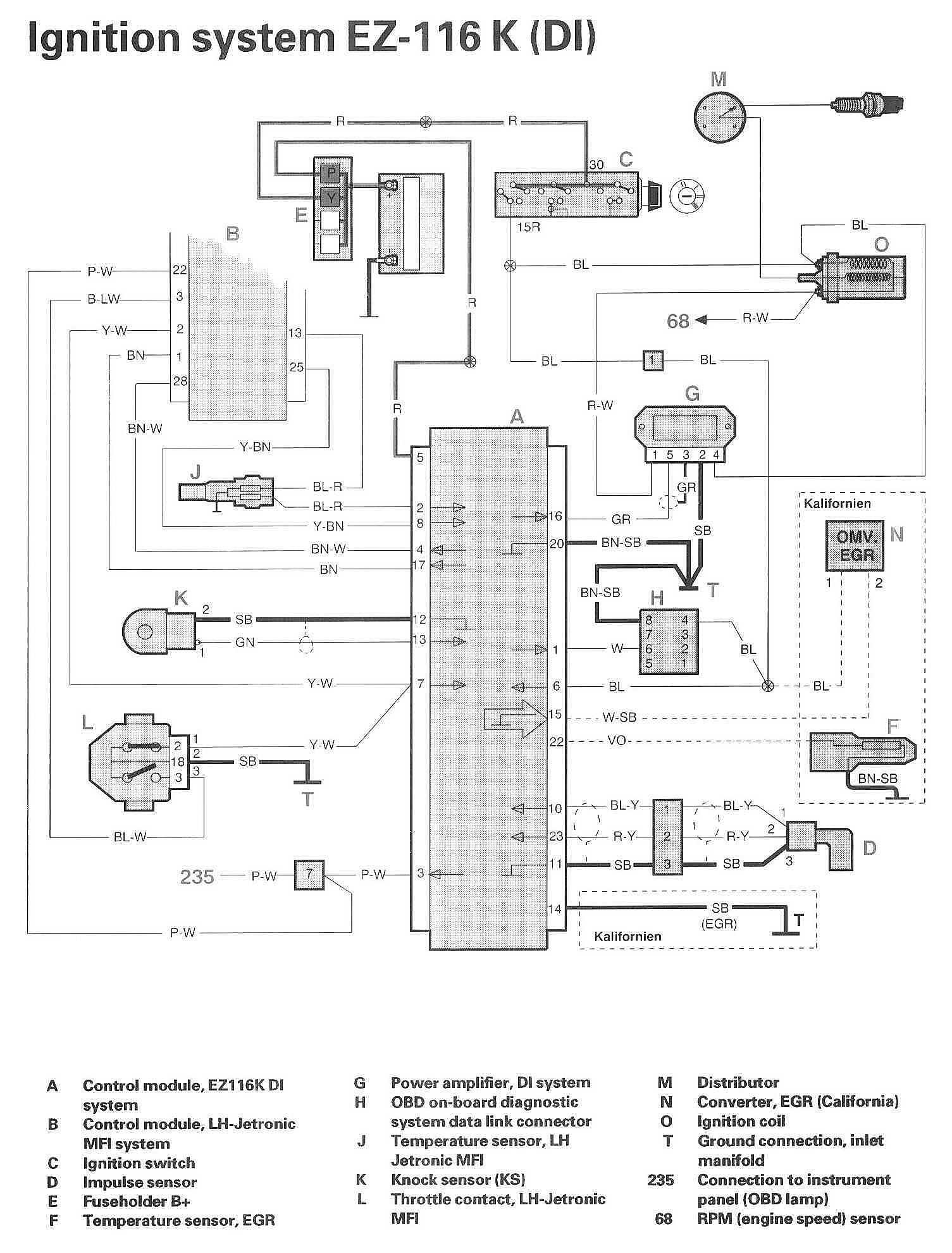

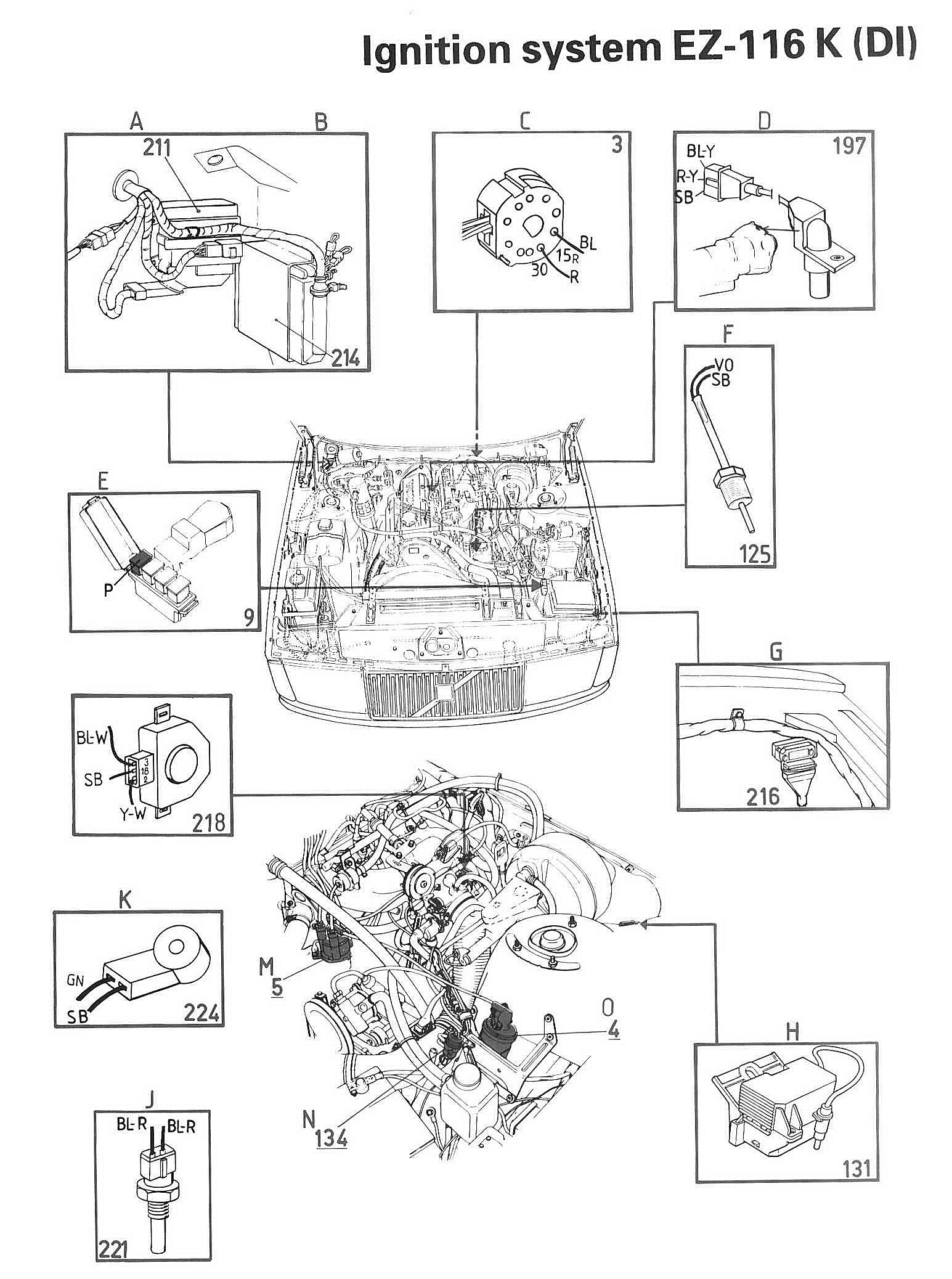

Ignition System EZ-116K (DI)

LEGEND
A Control module. EZ-116K DI system
B Control module. LH-Jetronic MFI system
C Ignition switch
D Impulse sensor
E Fuse holder B+
F Temperature sensor. EGR
G Power amplifier, DI system
H OBD on-board diagnostic system data link connector
J Temperature sensor. LH-Jetronic MFI
K Knock sensor (KS)
L Throttle Contact. LH-Jetronic MFI
M Distributor
N Converter. EGR (California)
O Ignition coil
T Ground connection. Inlet manifold

235 Connection to instrument panel (OBD lamp)

68 RPM (engine speed) sensor
