Tailgate Window Wash / Wipe (No Interval Relay)

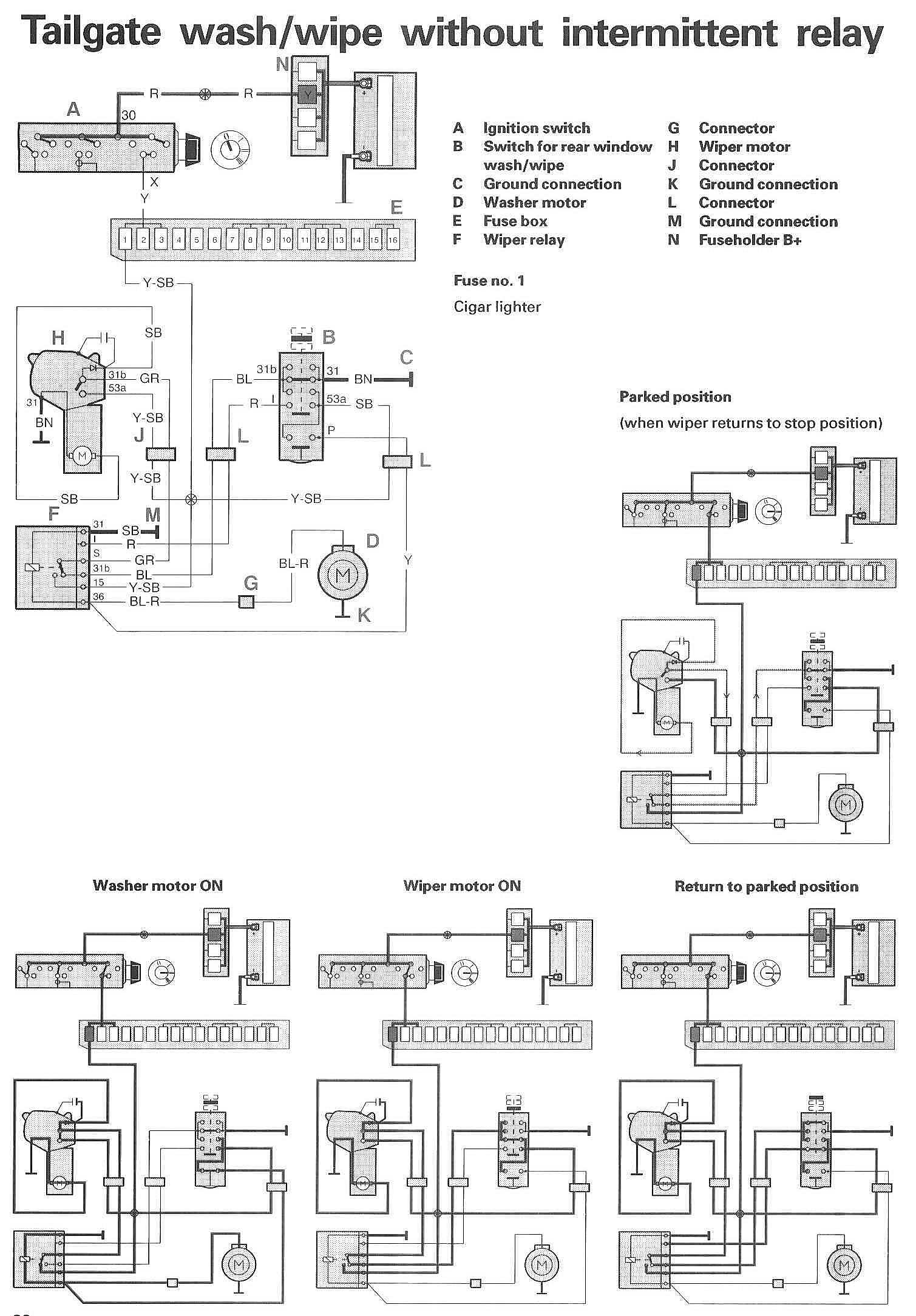

Wiring Diagrams:

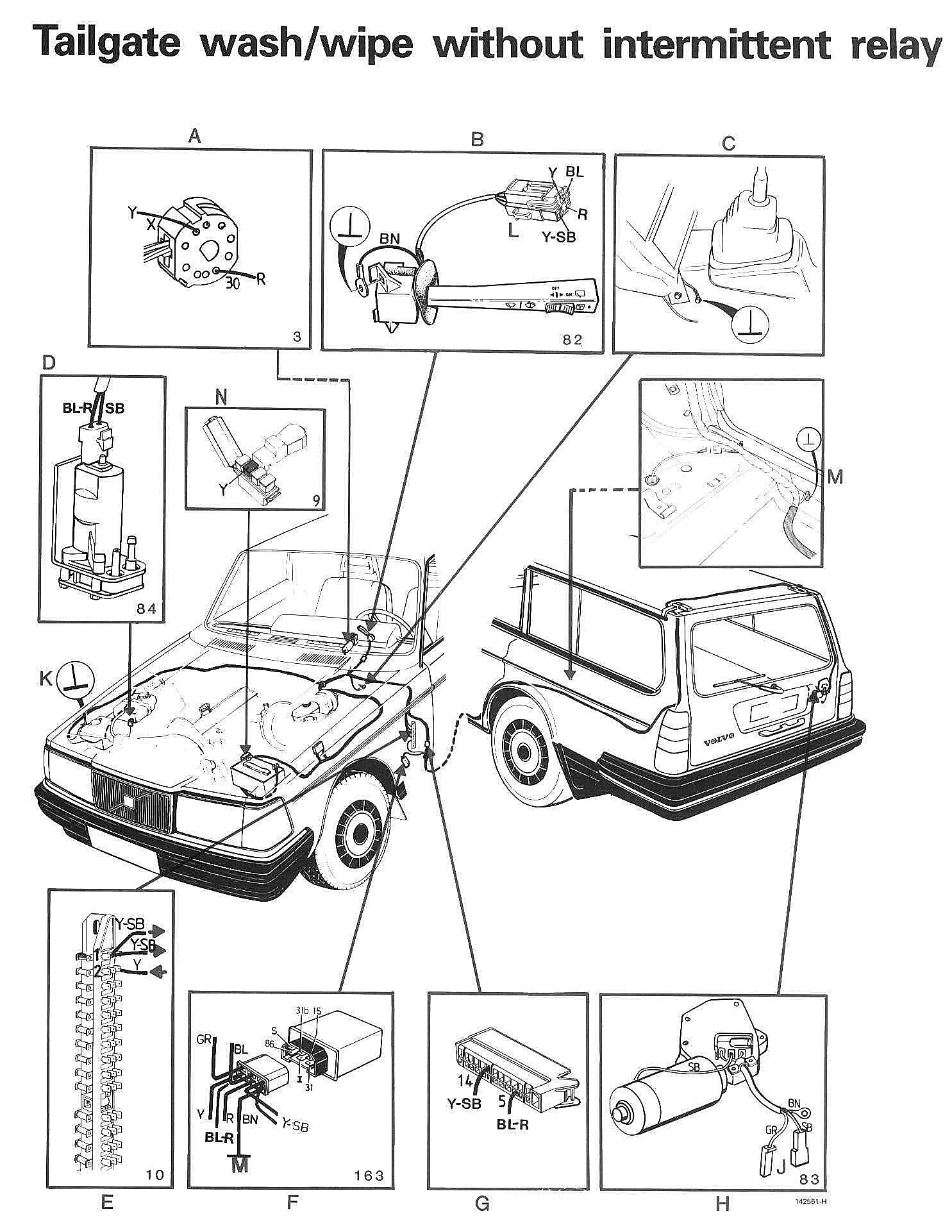

Component / Connector Views:

LEGEND
A Ignition switch
B Switch for rear window wash / wipe
C Ground connection
D Washer motor
E Fusebox
F Wiper relay
G Connector
H Wiper motor
J Connector
K Ground Connection
L Connector
M Ground connection
N Fuse holder B+
