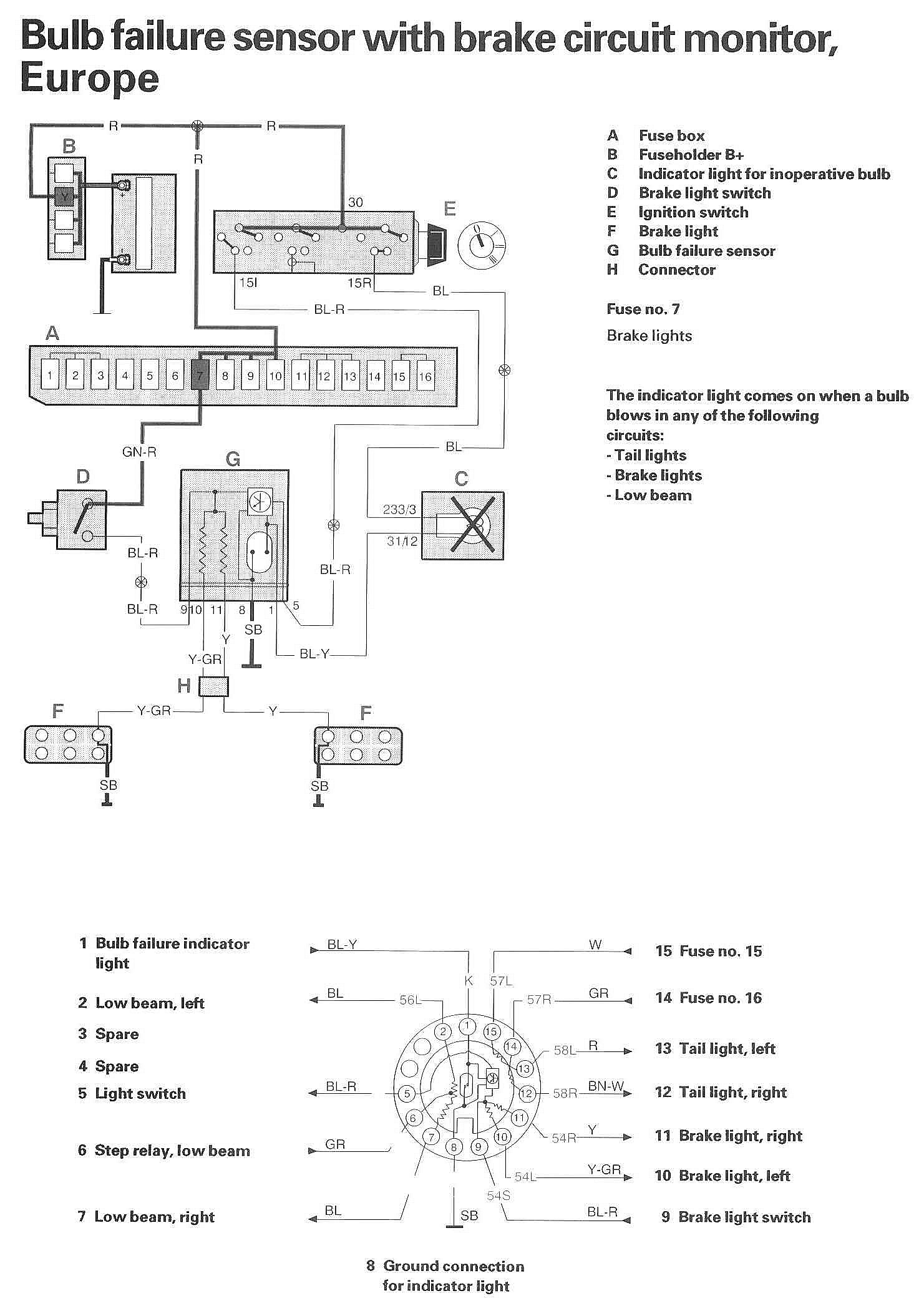

Bulb Failure Warning Sensor, Brake Light Monitor (Europe)

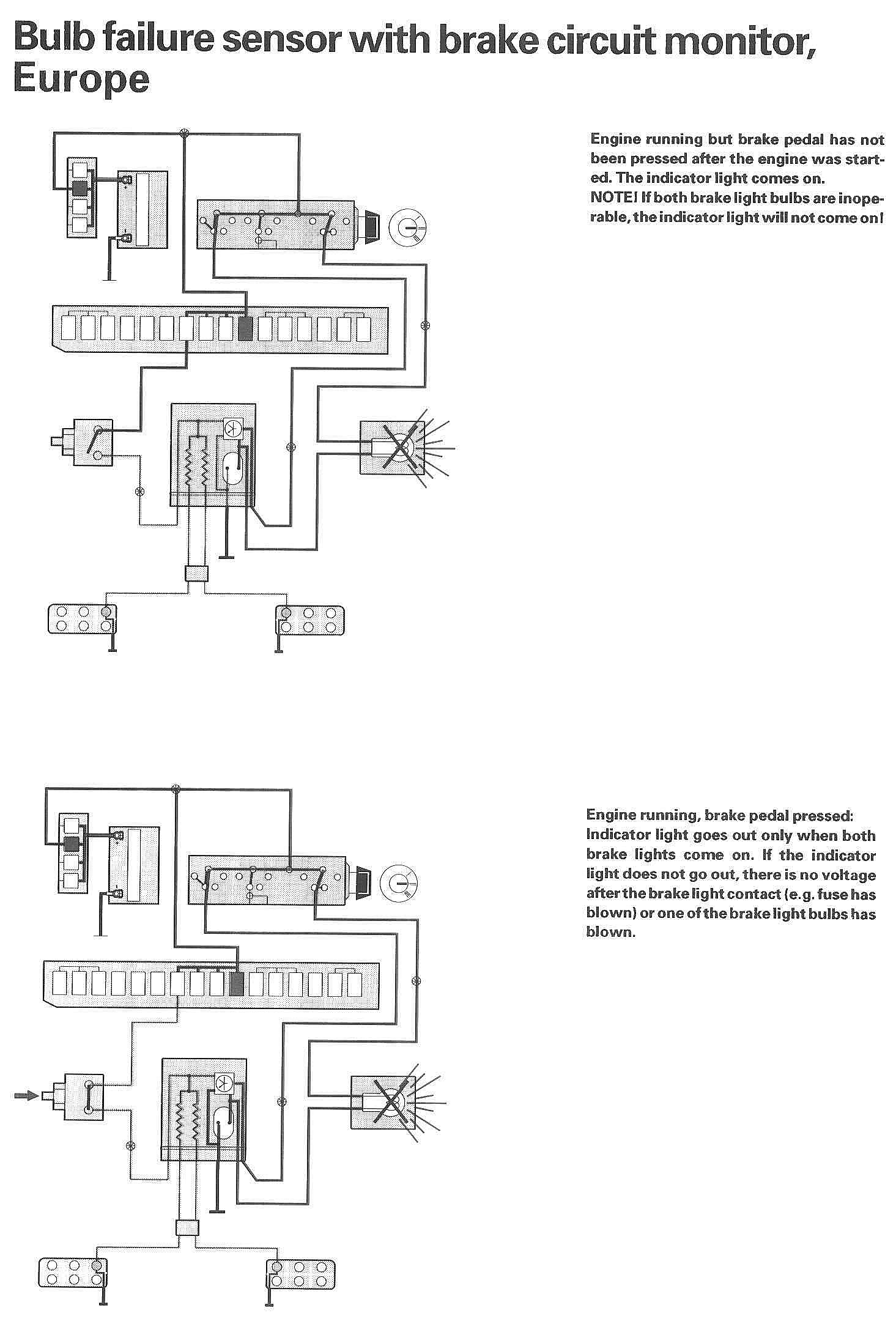

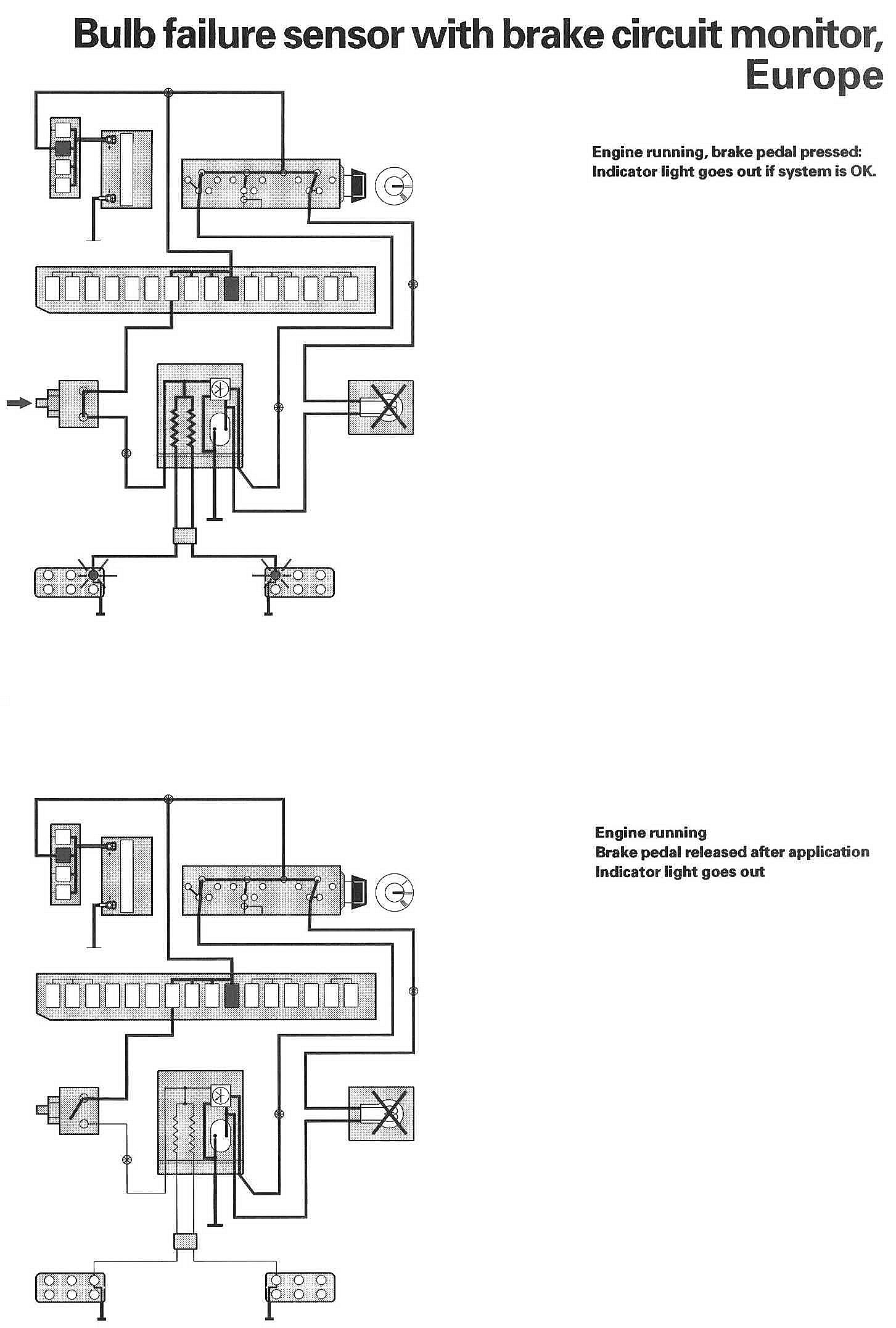

Wiring Diagrams:

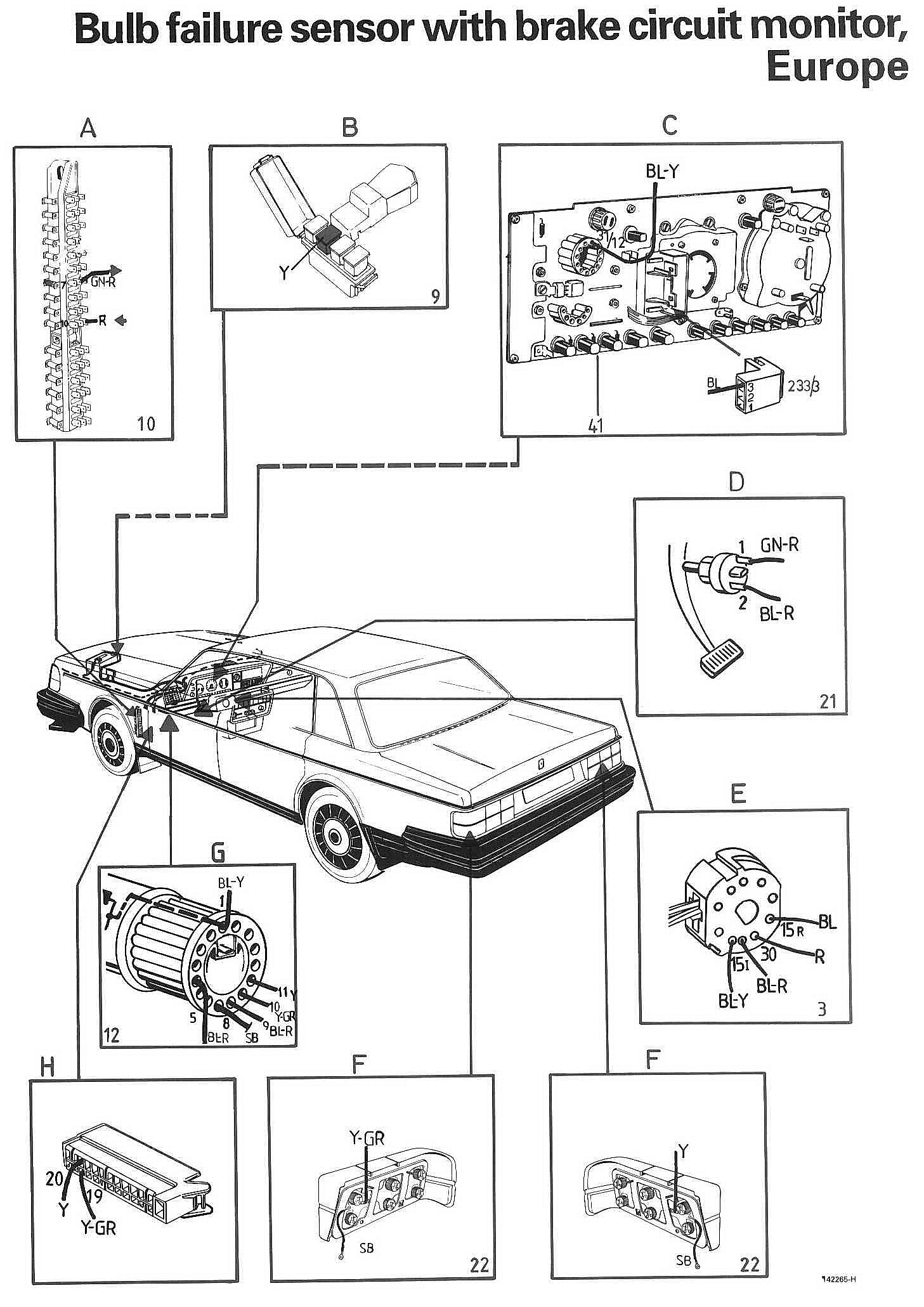

Component / Connector Views:

LEGEND
A Fusebox
B Fuse holder B+
C Indicator light for inoperative bulb
D Brake light switch
E Ignition switch
F Brake light
G Bulb failure sensor
H Connector
