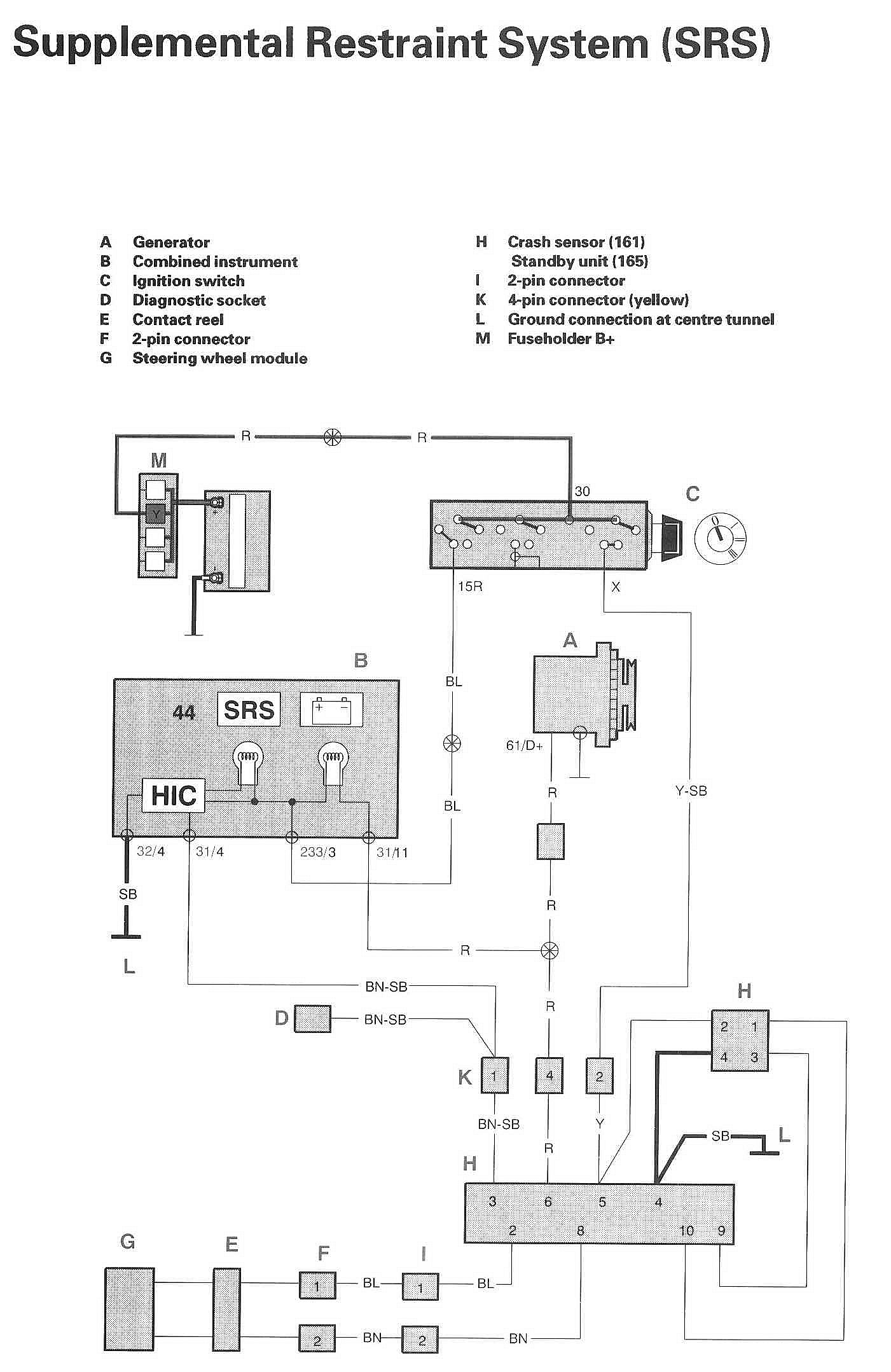

Electrical Diagrams

Wiring Diagrams:

Component / Connector Views:

LEGEND
A Generator
B Combined instrument
C Ignition switch
D Diagnostic socket
E Contact reel
F 2-pin Connector
G Steering wheal module
H Crash sensor (161) Standby unit (165)
I 2-pin Connector
K 4-pin connector (yellow)
L Ground connection at centre tunnel
M Fuse holder B+
