Windscreen Wash / Wipe

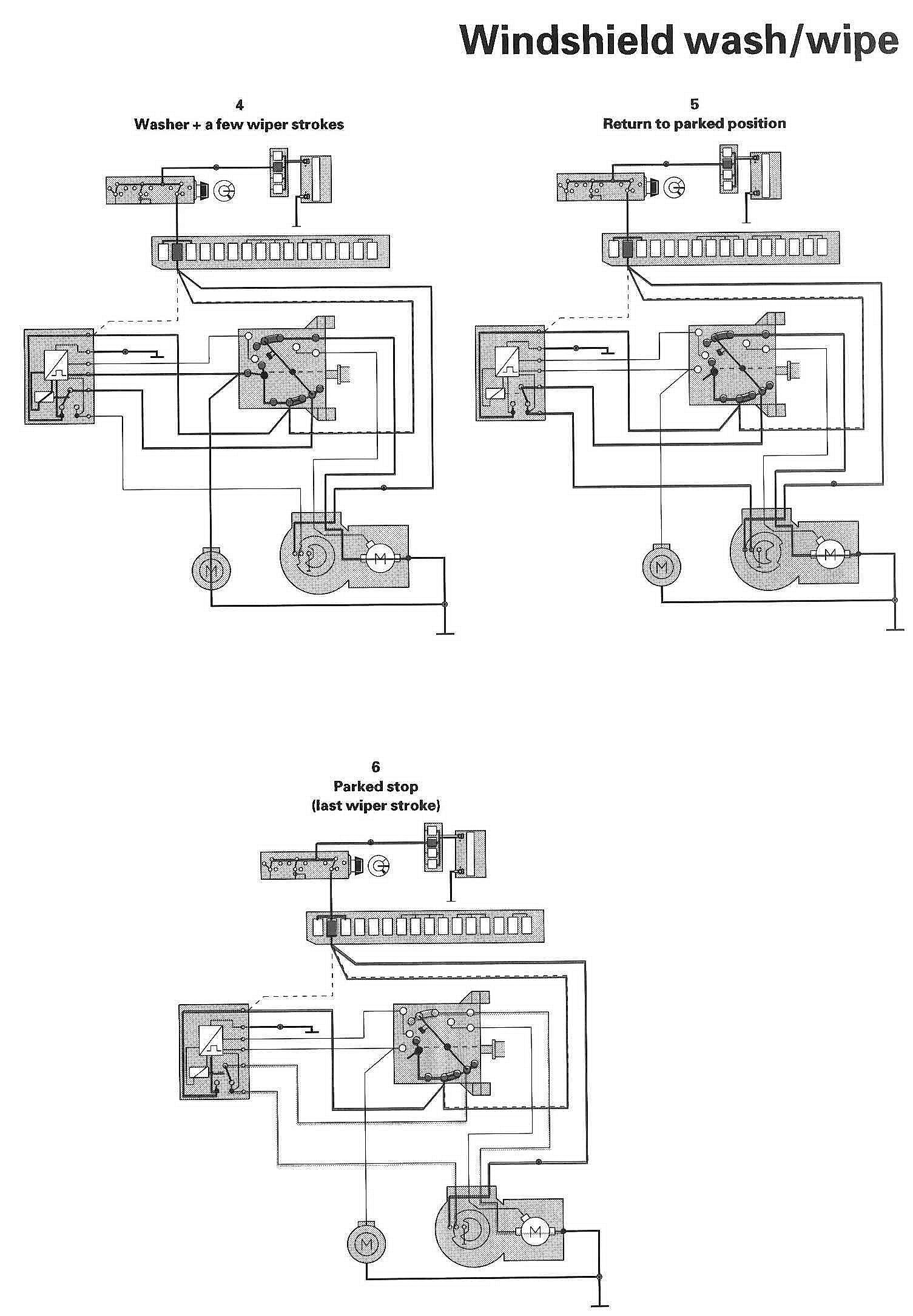

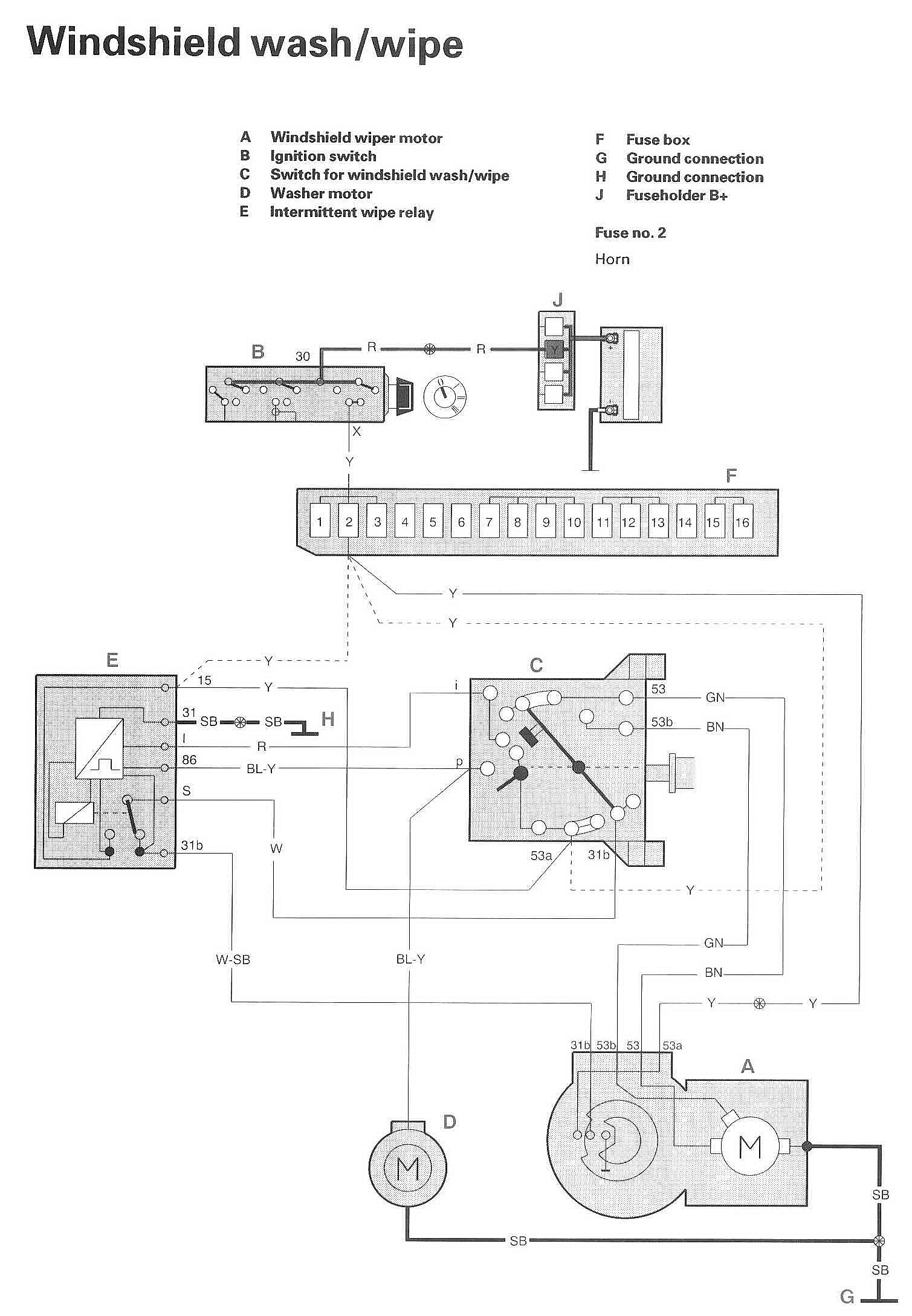

Wiring Diagrams:

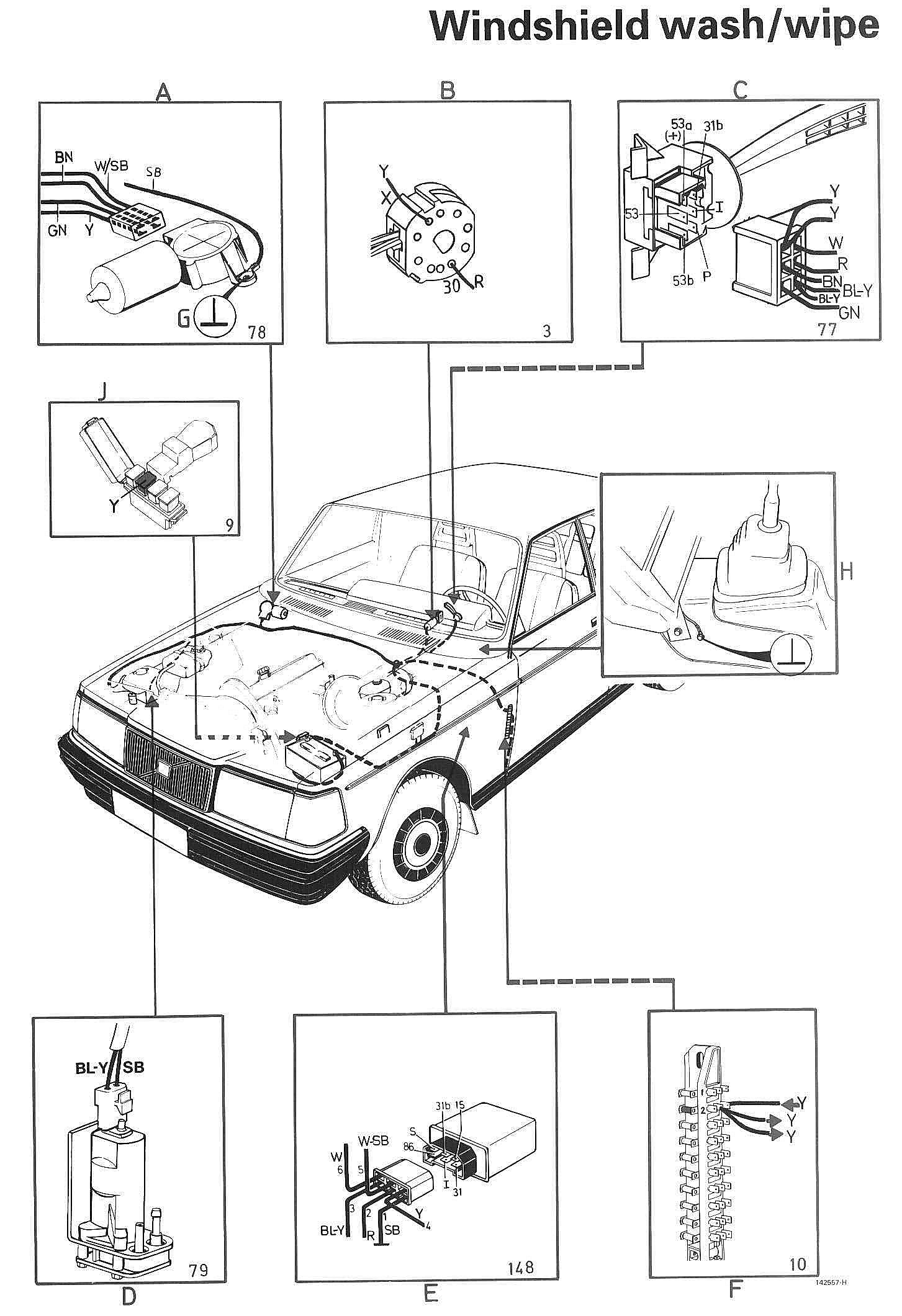

Component / Connector Views:

LEGEND
A Windshield wiper motor
B Ignition switch
C Switch for windshield wash/wipe
D Washer motor
E Intermittent wipe relay
F Fusebox
G Ground connection
H Ground Connection
J Fuse holder B+
