Parking, Tail and Number Plate Lights

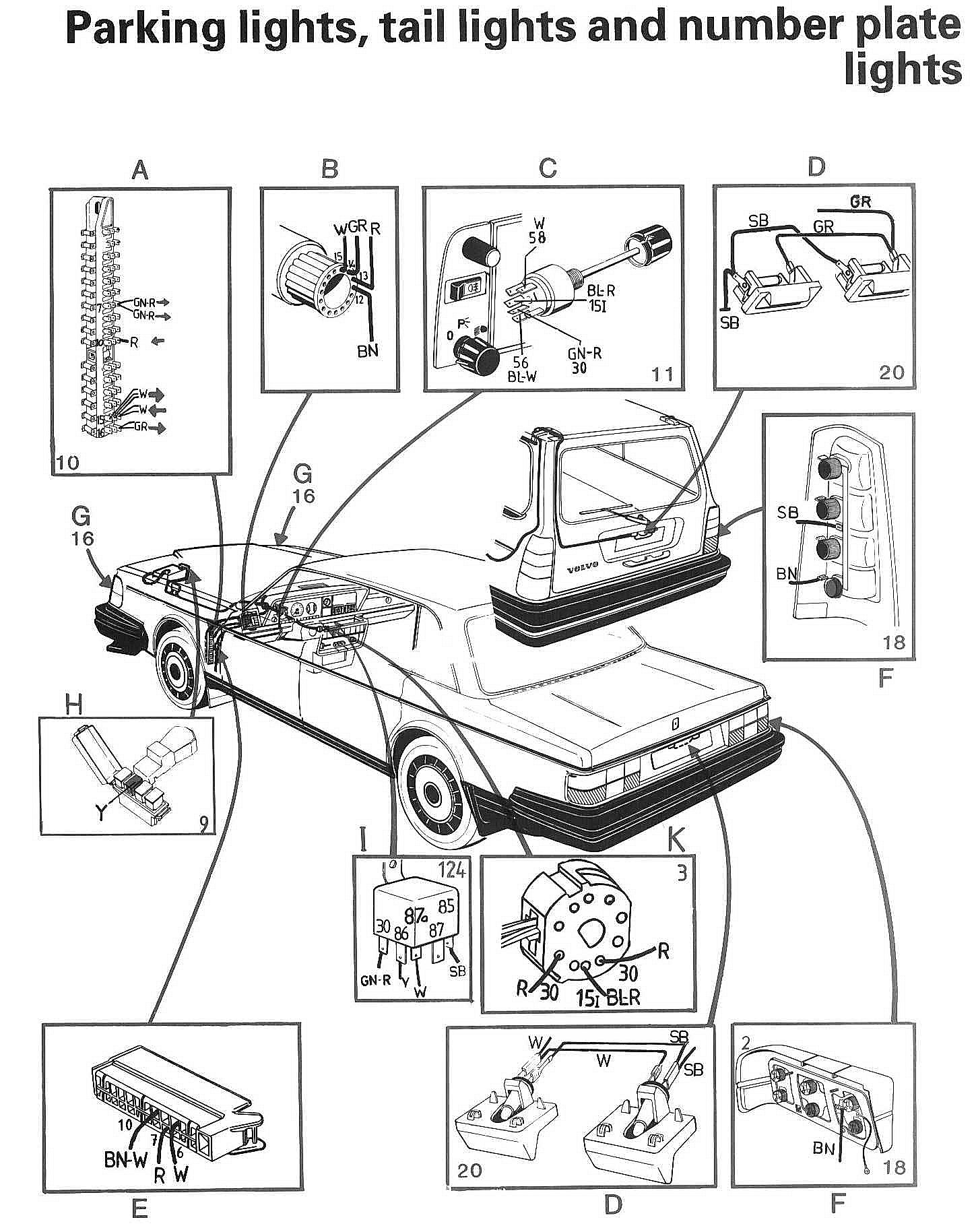

Wiring Diagrams:

Component / Connector Views:

LEGEND
A Fusebox
B Bulb failure sensor
C Headlight switch
D Number plate lighting
E Connector
F Tail lights
G Parking lights
H Fuse holder B+
I Headlight relay
J Ignition switch
