Connector 24/14 (POS 1-25 In 53-Pole)
Connector 24/14 (POS 1-25 In 53-Pole)
Connector View:
Connector Location

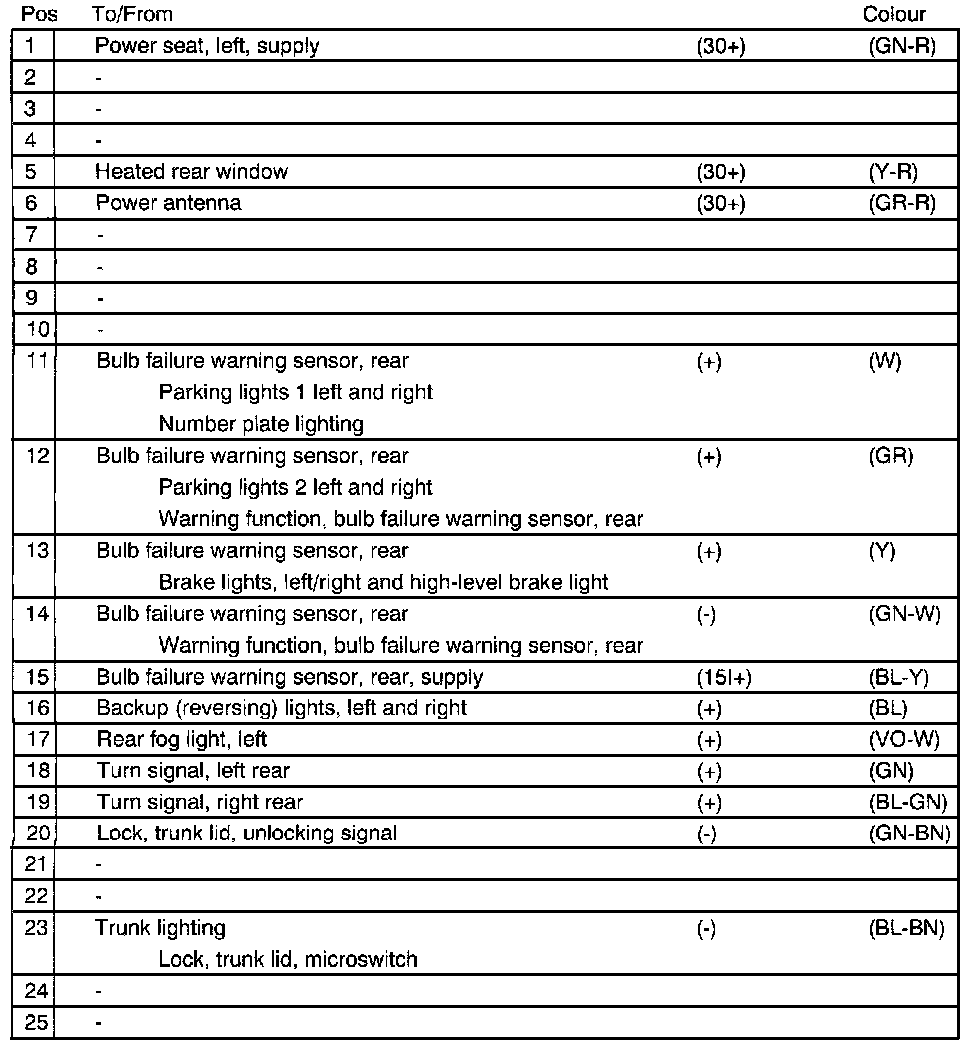

Connector Key:
Pin I.D.
