Connector 24/2 (53-Pole)
Connector 24/2 (53-Pole)

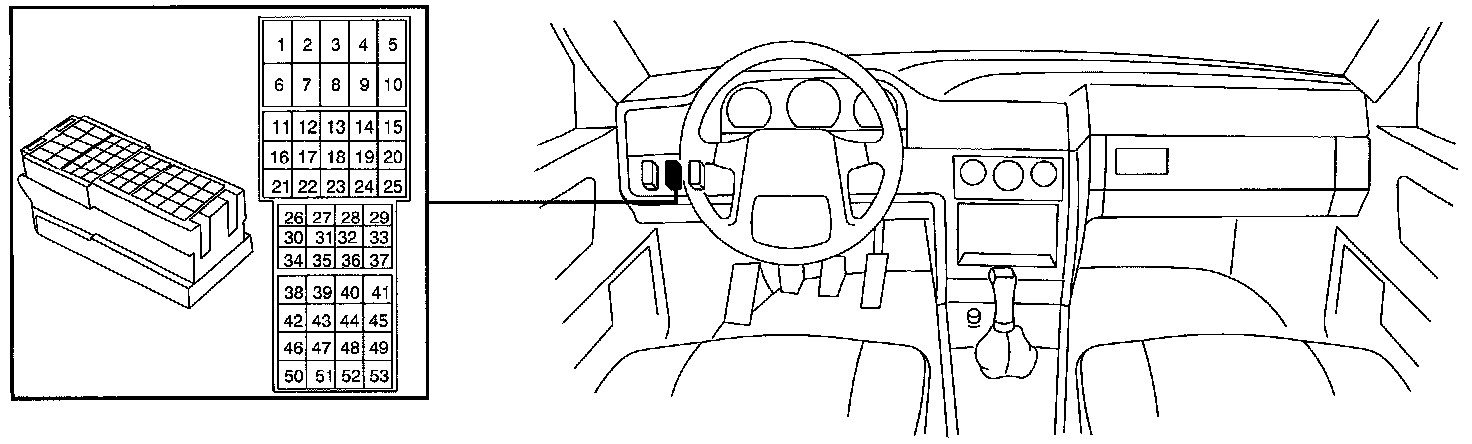

Connector View:
Connector Location

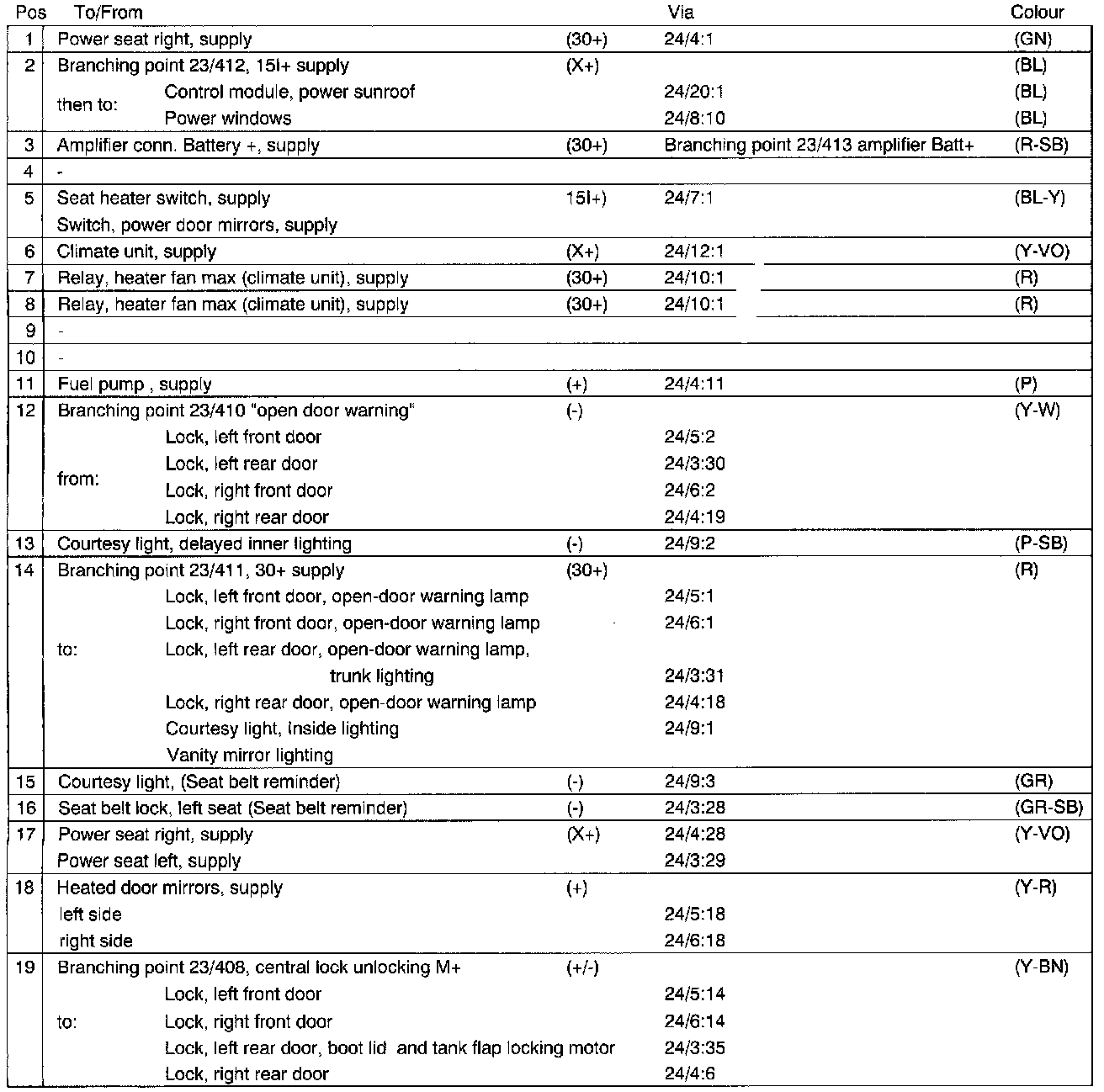

Connector Key:
Connector Key:
Pin I.D.
