Fog/Driving Lamp

Rear Fog Lights

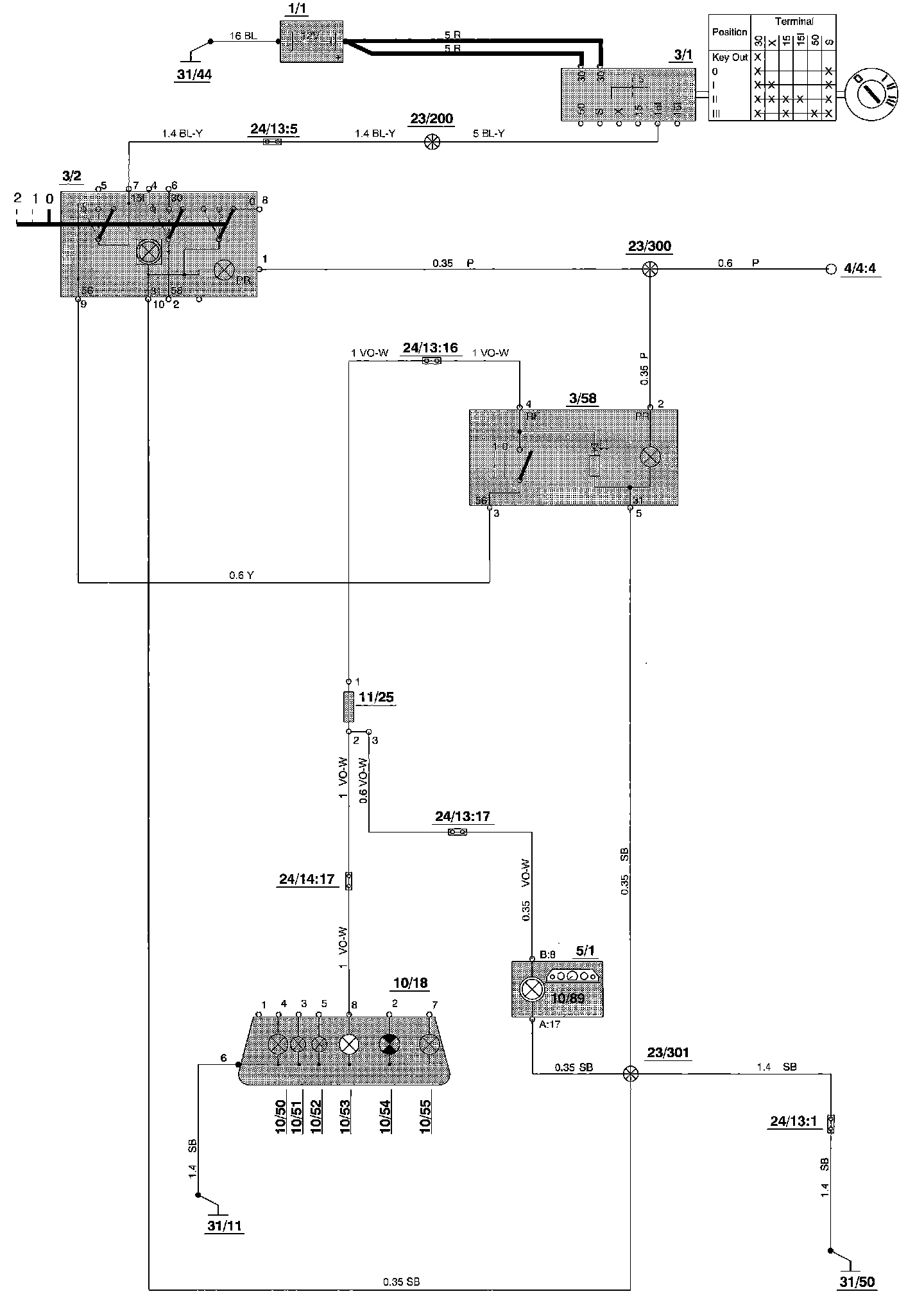

Wiring Diagram:

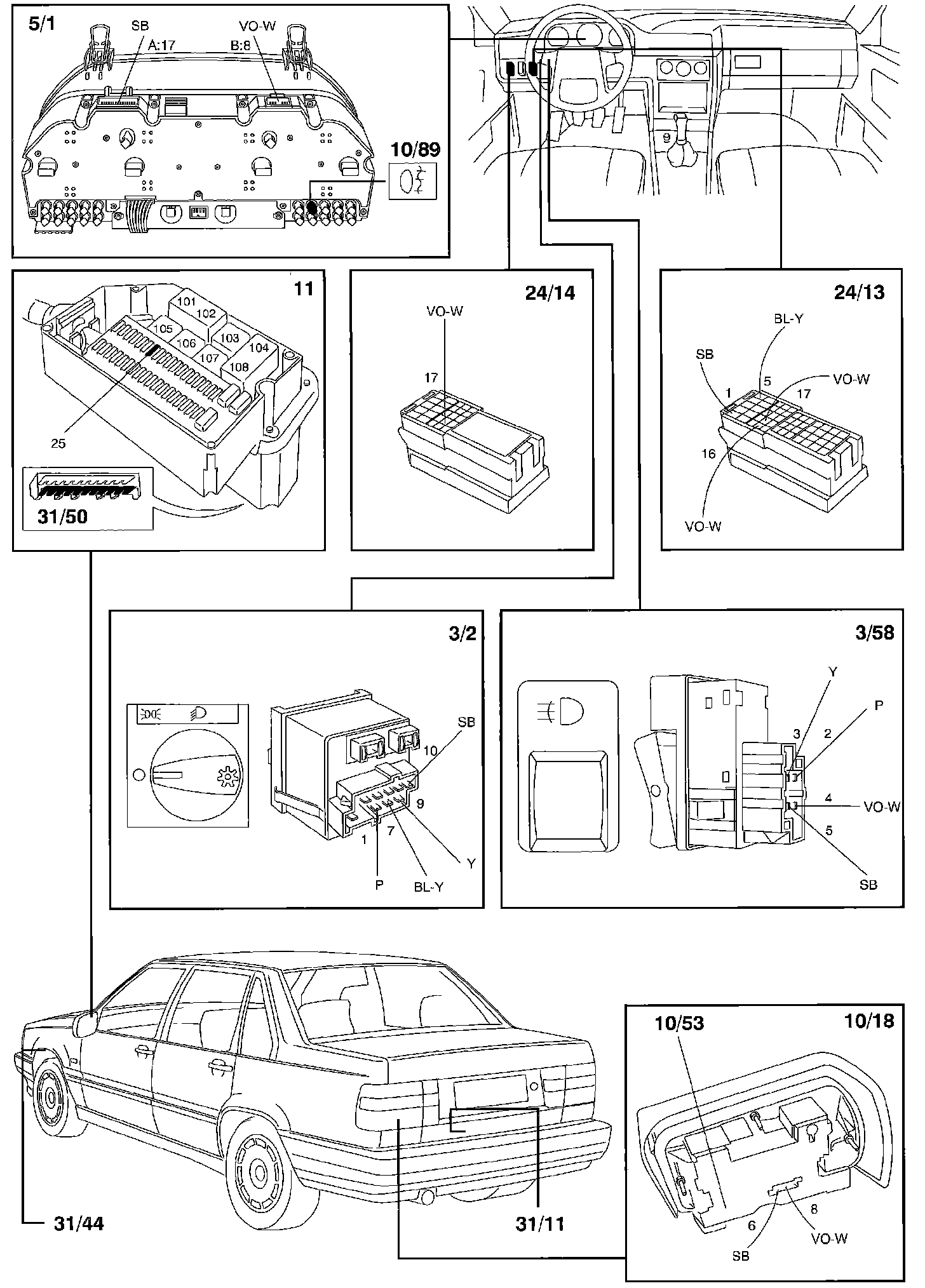

Components:

Component I.D. List

3/2 - Light Switch
3/58 - Switch, rear fog light
5/1 - Combined instrument
10/17 - Right tail light
10/18 - Left, rear light
10/53 - Left rear fog light lamp
10/89 - Indicator lamp, rear fog lights
24/13 - Connector, 53-pole Engine compartment harness - Instrument panel harness
24/14 - Connector, pos. 1-25 in 53-pole Engine compartment harness - Door sill harness left
31/11 - Ground point, trunk, left side
31/44 - Ground point, engine compartment (ground connection battery - body)
31/50 - Ground point, central electrical unit (power ground)
