Interior Lighting

Interior Lighting

Wiring Diagram:

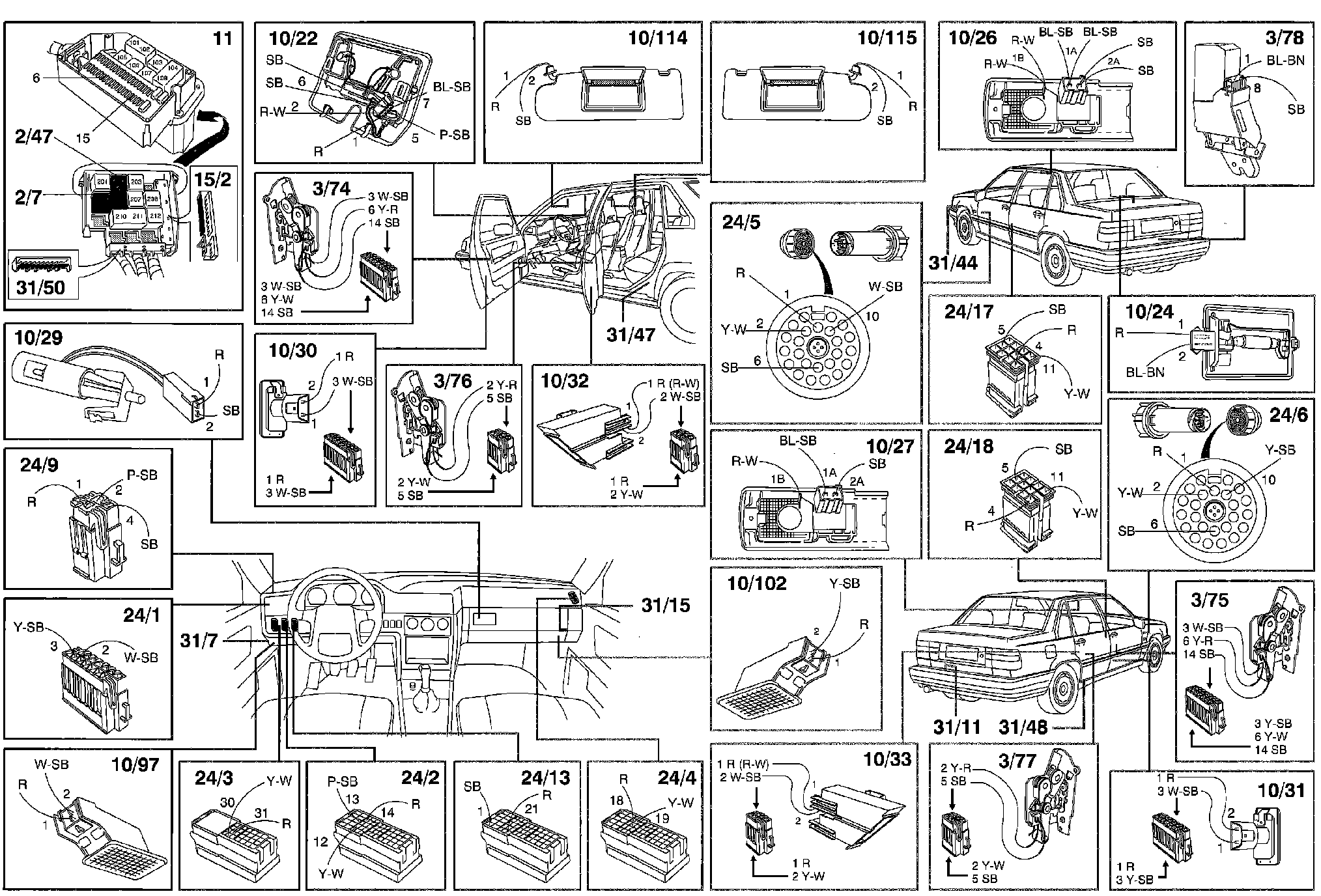

Component Location:

Component I.D. List

2/7 - Central Locking/delayed courtesy lighting relay
2/47 - Relay, anti-theft protected lock position
3/74 - Lock, left front
3/75 - Lock, right front
3/76 - Lock, left rear
3/77 - Lock, right rear
3/78 - Lock boot
10/13 - Left, turn signal, front
10/14 - Right, turn signal, front
10/22 - Inside light, celling
10/24 - Trunk lighting
10/26 - Reading light, left rear
10/27 - Reading light, right rear
10/29 - Glove box lighting
10/30 - Warning lamp, left front door
10/31 - Warning lamp, right front door
10/32 - Warning lamp, left rear door
10/33 - Warning lamp, right rear door
10/97 - Entry lighting, driver's side
10/102 - Entry lighting, passenger side
10/114 - Vanity mirror, lighting, left side
10/115 - Vanity mirror, lighting, right side
24/1 - Connector, 14-pole, Firewall harness - Instrument panel harnesses
24/2 - Connector 53-pole, Firewall harness - Engine compartment harnesses
24/3 - Connector, pos. 26-53 in 53-pole, Firewall harness - Bottom rail harness, left
24/4 - Connector, 53-pole, Firewall harness - Bottom rail harness, right
24/5 - Connector, 24-pole Firewall harness - Left front door harness
24/6 - Connector, 24-pole Firewall harness - Right front door harness
24/9 - Connector, 4-pole, Firewall harness - Celling harness
24/13 - Connector, 53-pole, Engine compartment harness - Instrument panel harness
24/17 - Connector, 11-pole, Door sill harness, left - Left rear door harness
24/18 - Connector, 11-pole, Door sill harness, right - Right rear door harness
31/7 - Ground point, A-post driver's side
31/11 - Ground point, trunk, left side
31/15 - Ground point, A-post passenger's side
31/44 - Ground point, engine compartment (ground connection battery - body)
31/48 - Ground point, right cross member
