System Diagram

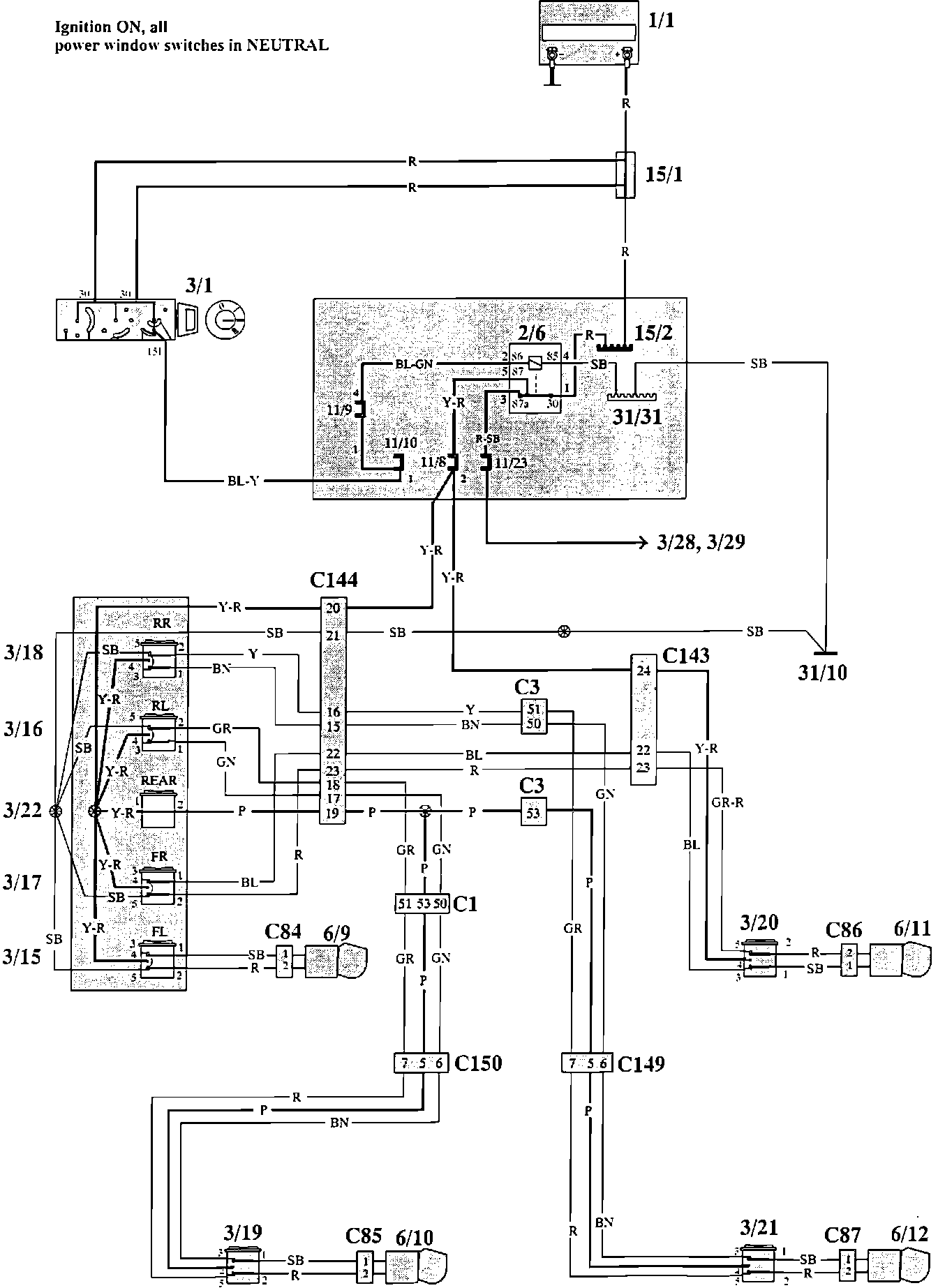

Power Window Wiring:




Wiring Diagram

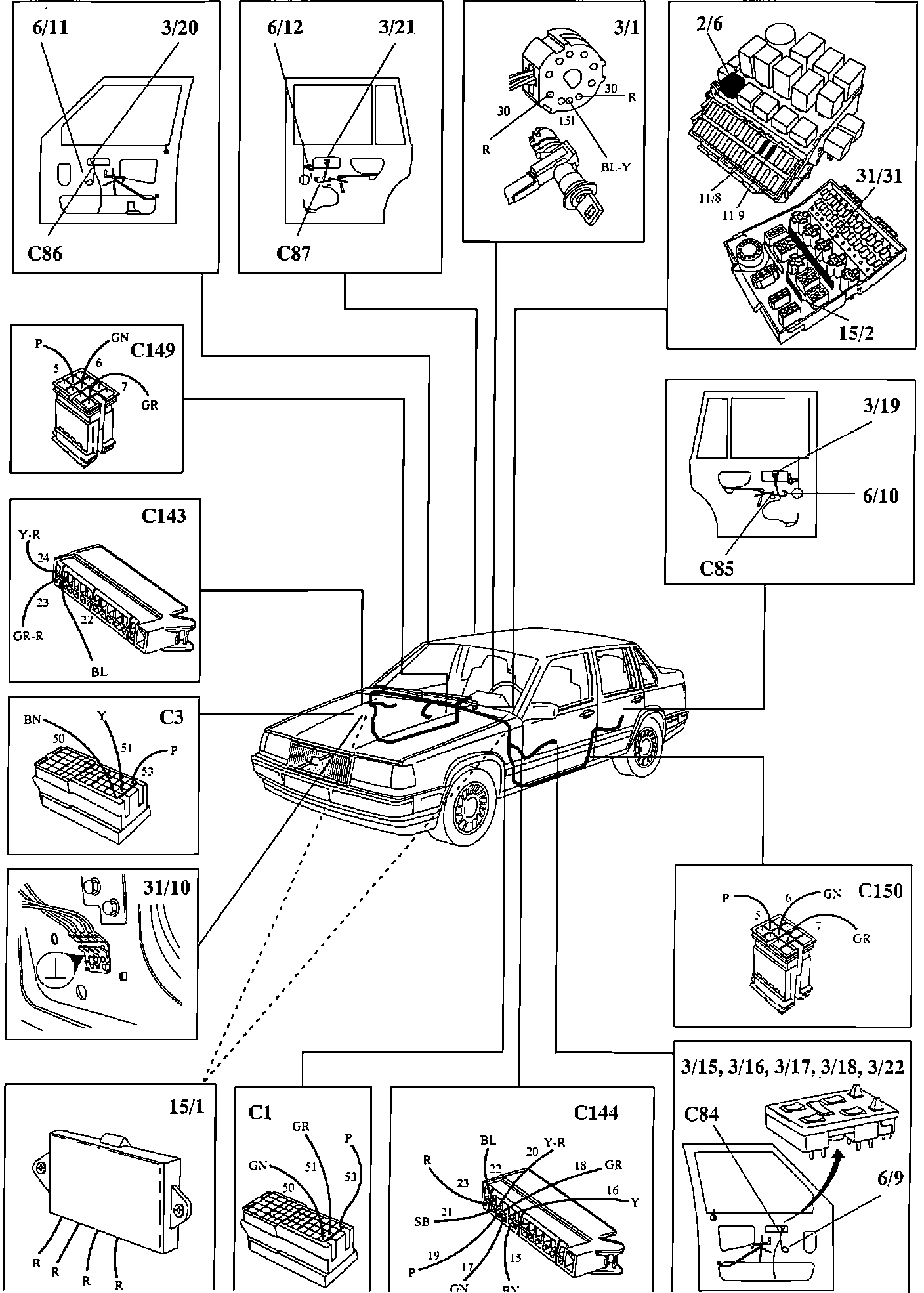

Power Window Components:




Component Locations

Component Index And Identification:




Component Index And Identification:




Component Index And Identification:
