Electrical Diagrams

Trunk Light Wiring:





Wiring Diagram

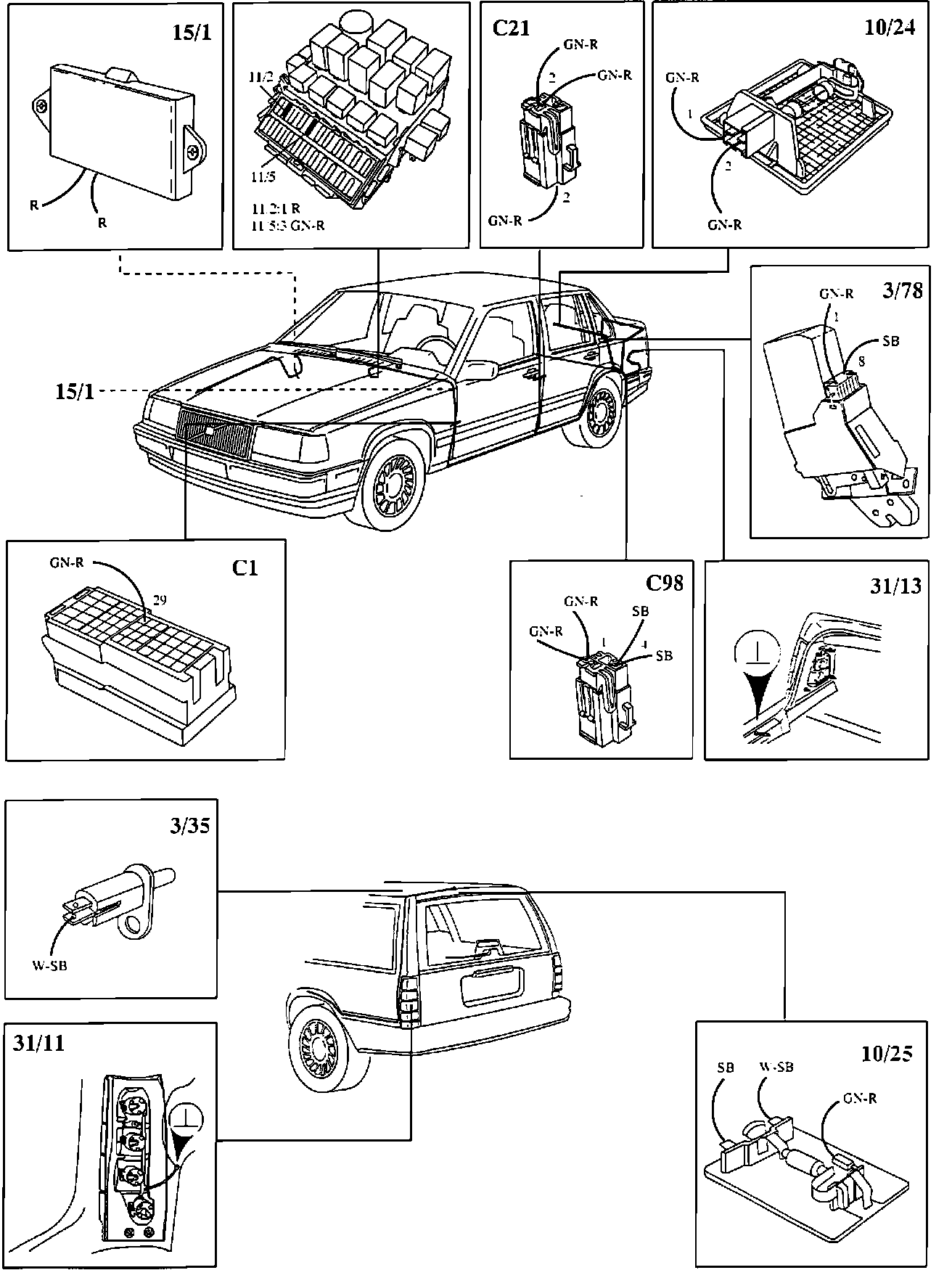

Trunk Light Components:





Component Locations
