Electrical Diagrams

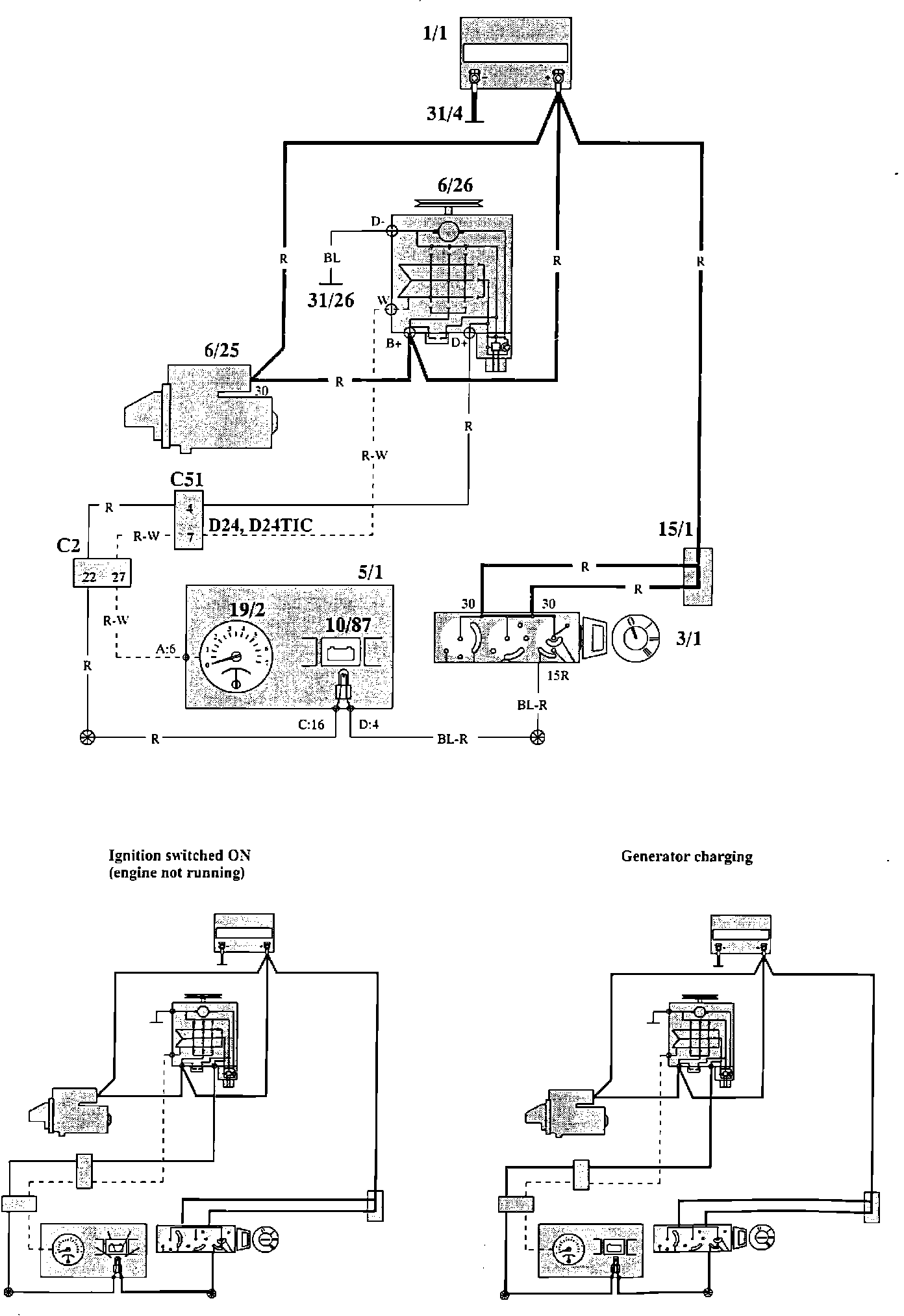

Power Supply Wiring:





Wiring Diagram

Power Supply Components:





Component Locations
