Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
1993
>>
940 L4-2320cc 2.3L DOHC B234F (Can)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic Climate Control
Electronic Climate Control

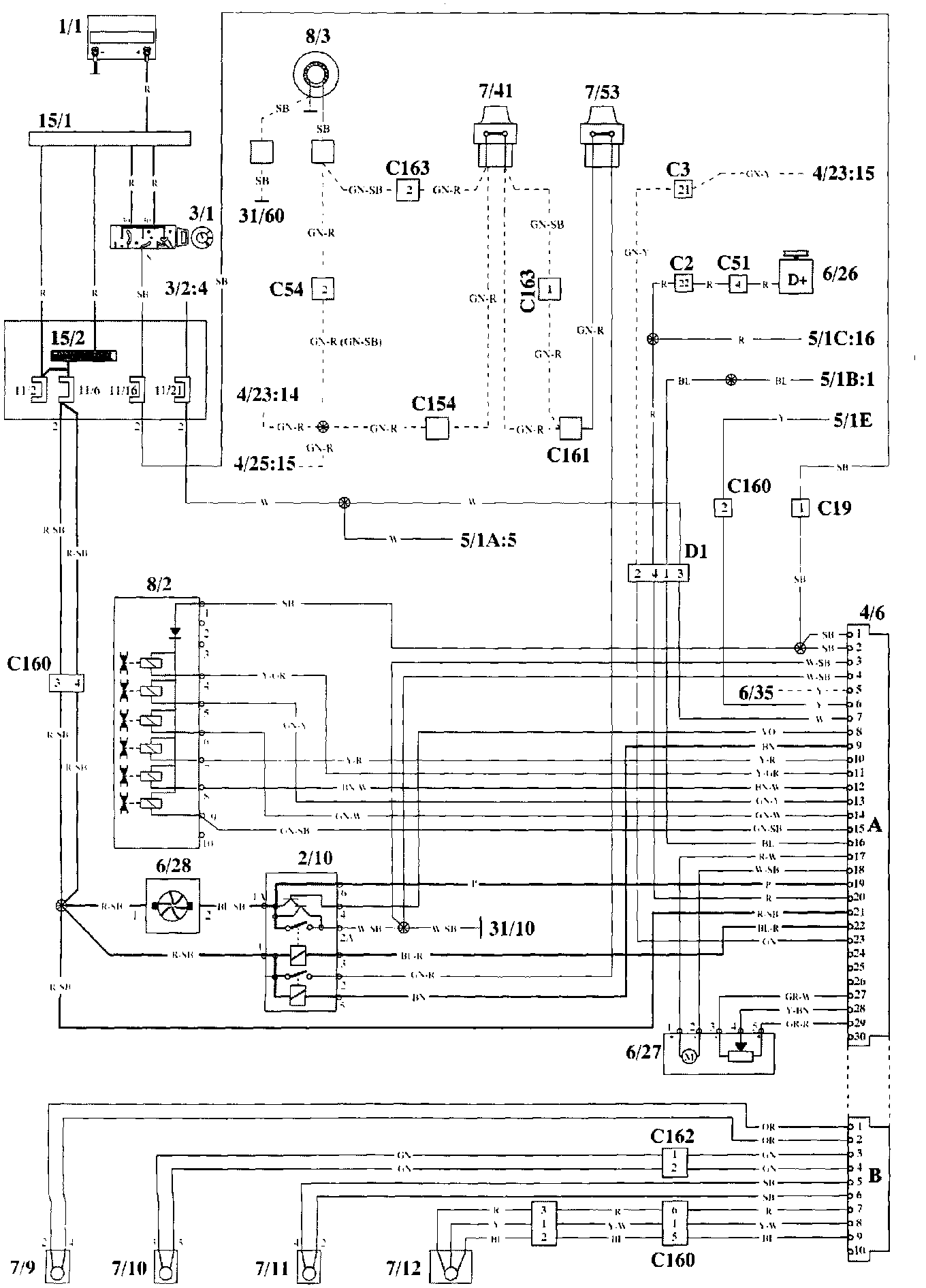

Wiring Diagram

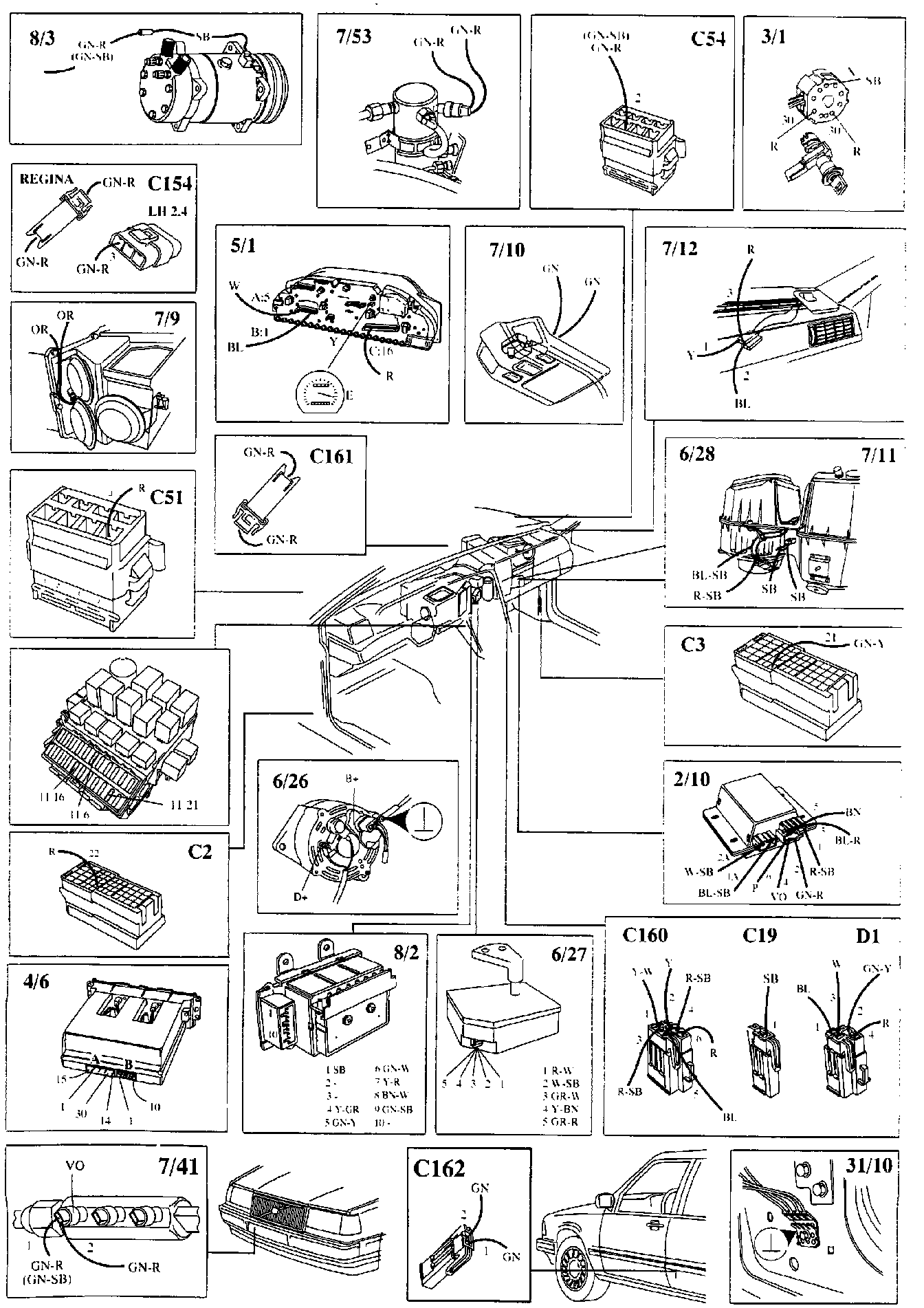

Component Location
Component I.D. List
