Operation CHARM: Car repair manuals for everyone.
Home >> Volvo >> 1993 >> 940 L4-2320cc 2.3L DOHC B234F (Can) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Manual Climate Control (MCC)

Manual Climate Control (MCC)

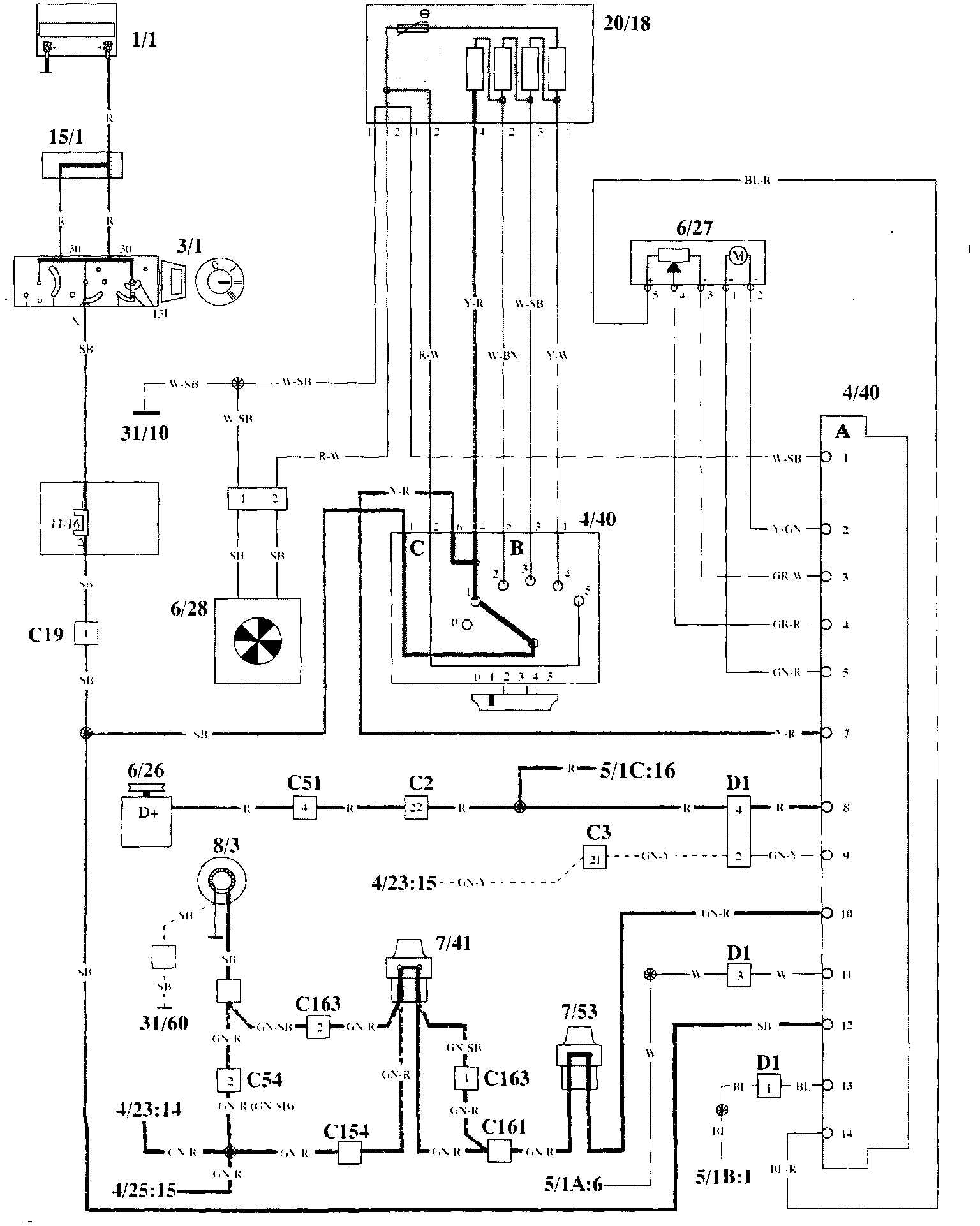

Wiring Diagram

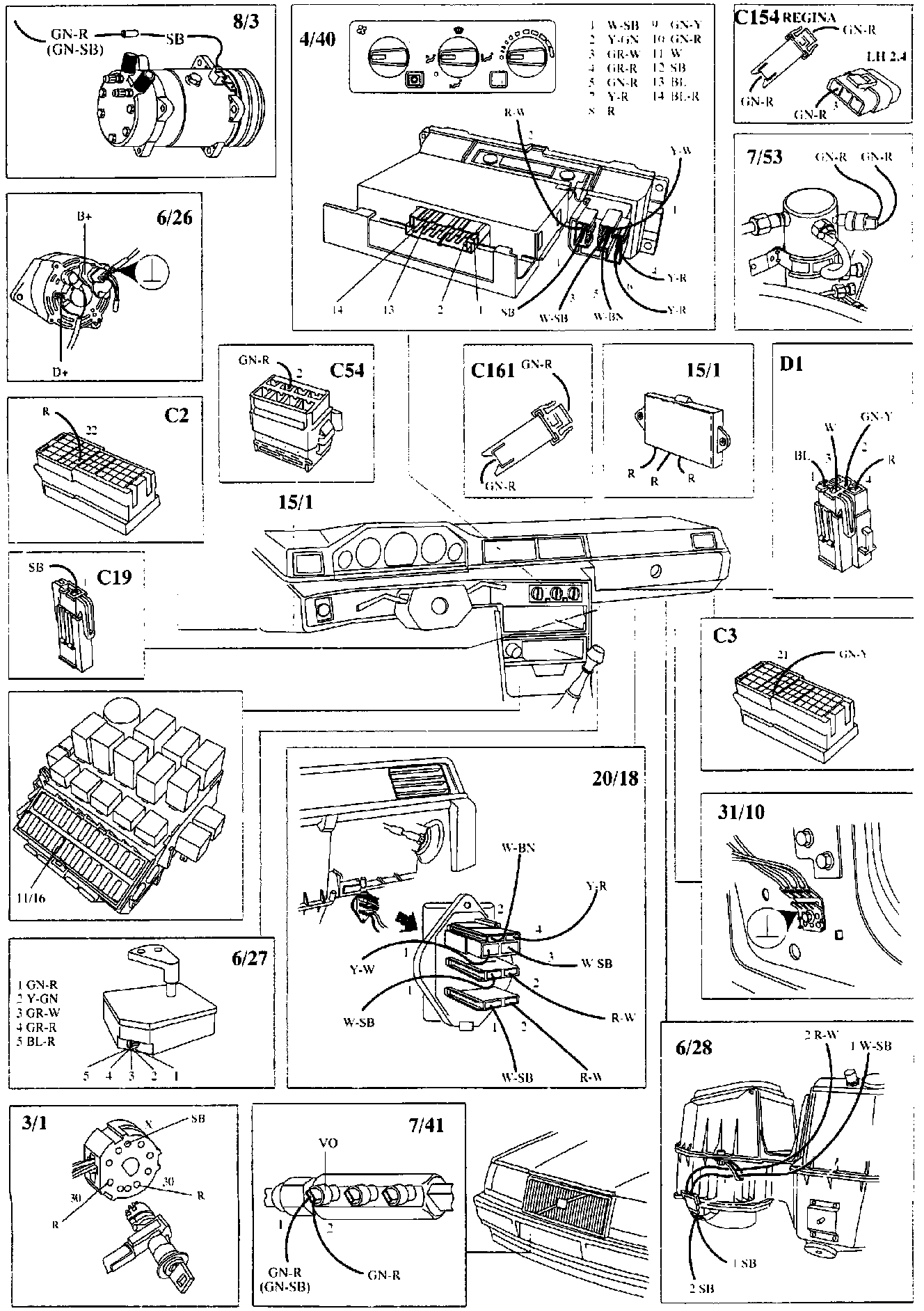

Component Location

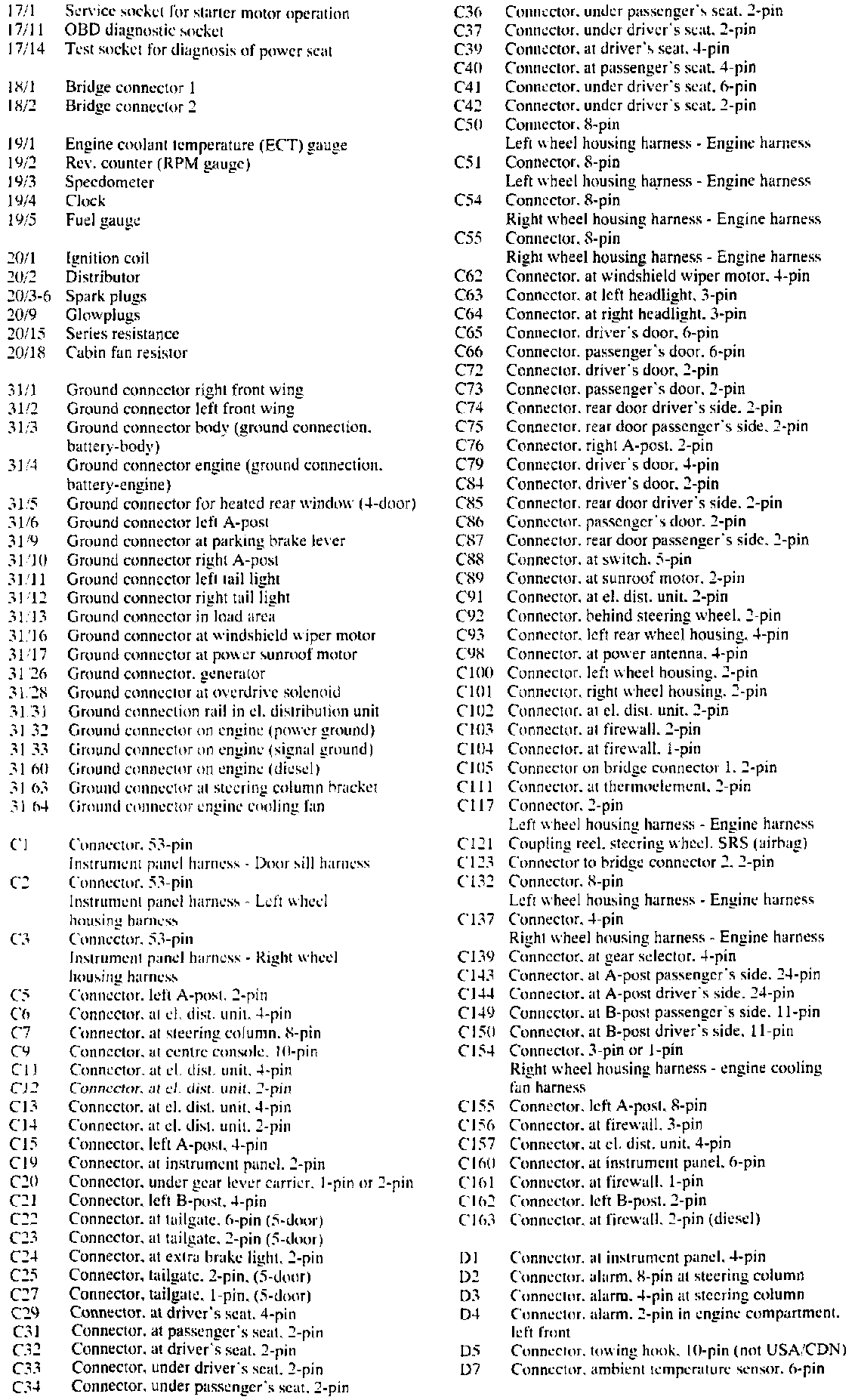

Component I.D. List
