Dual Temperature Range

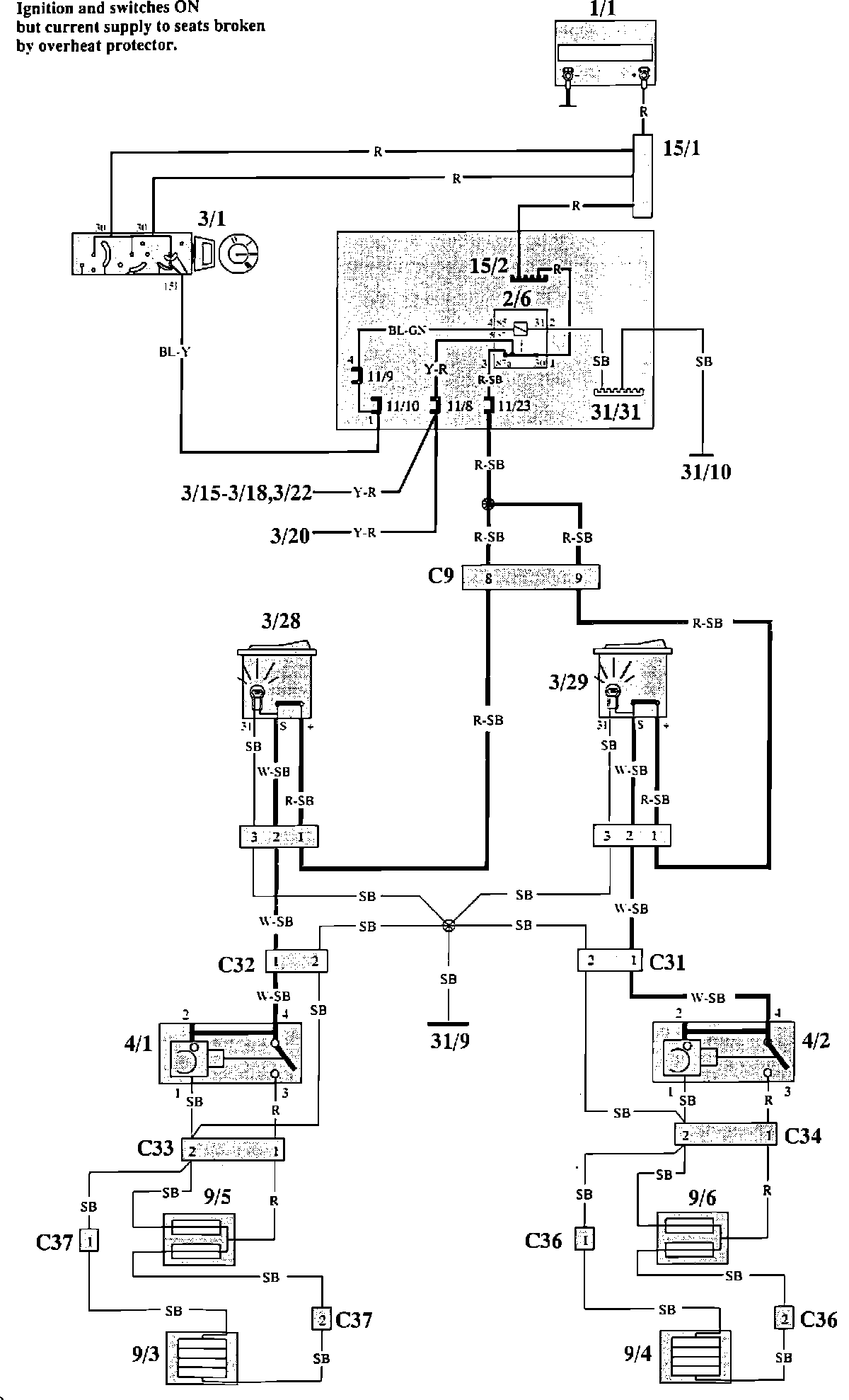

Seat Heater Wiring (High Output):




Wiring Diagram

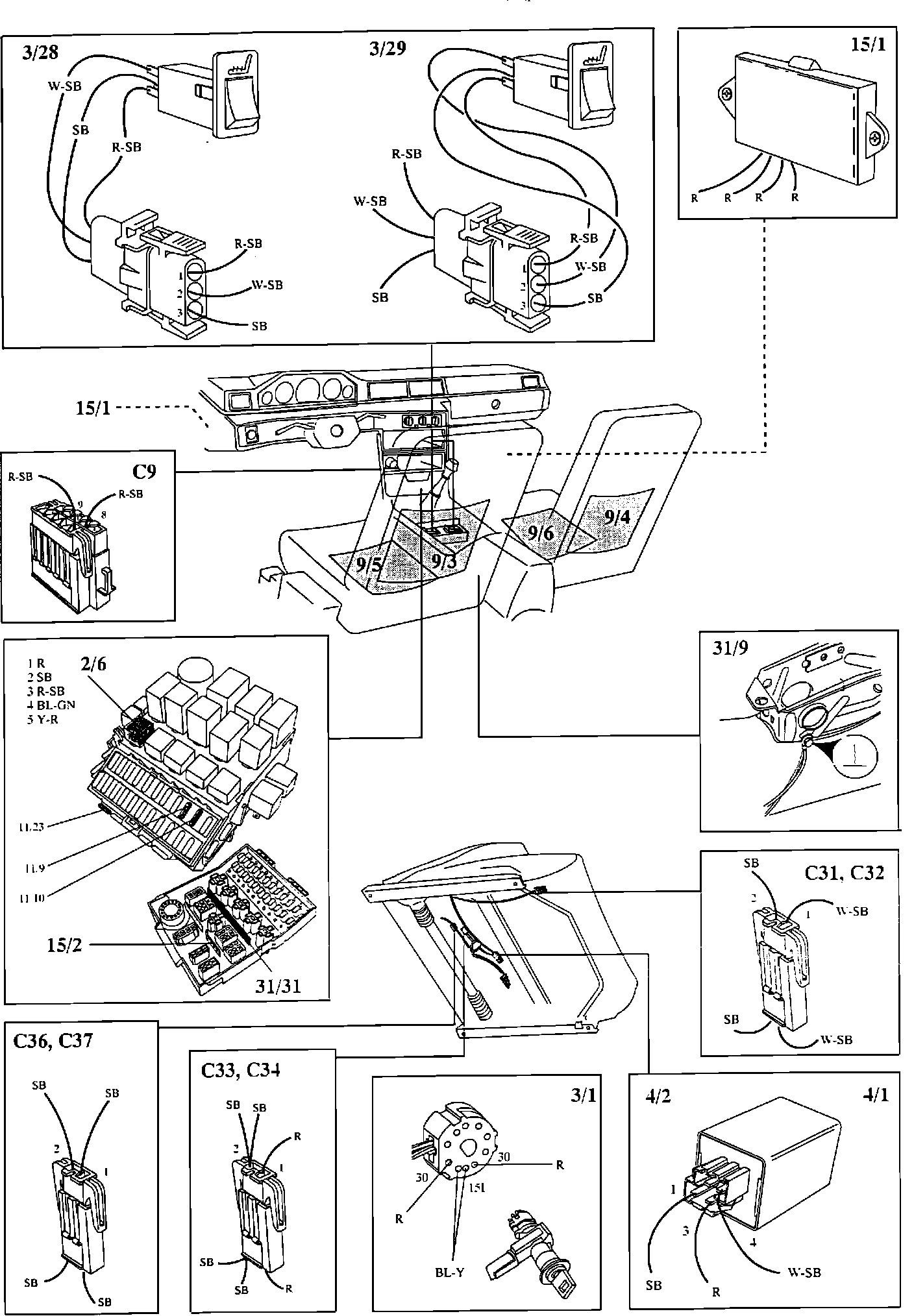

Seat Heater Components (High Output):




Component Locations

Component Index And Identification:




Component Index And Identification:




Component Index And Identification:
