System Diagram

Interior Light Wiring:

Wiring Diagram

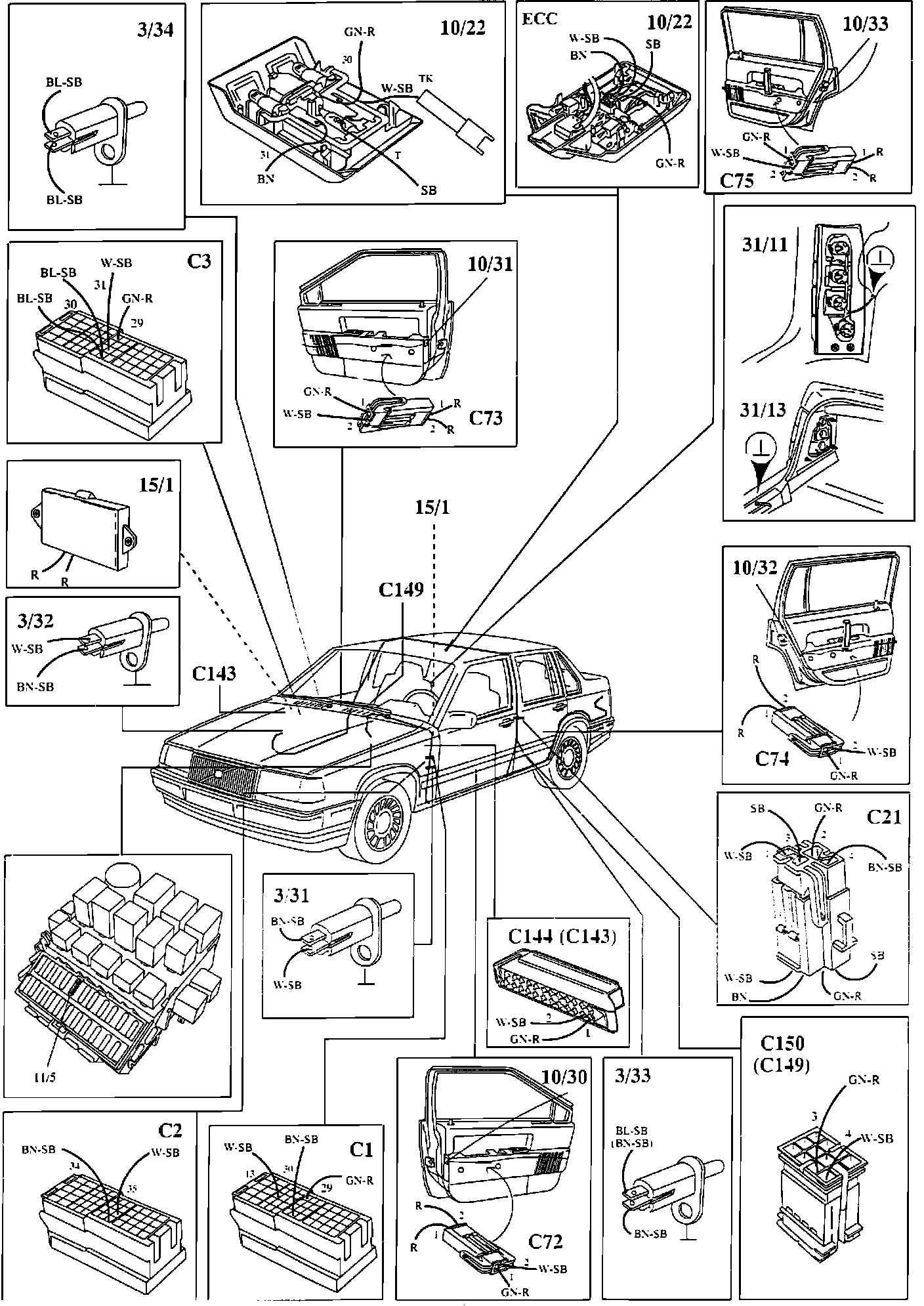

Interior Light Components:

Component Locations
