System Diagram

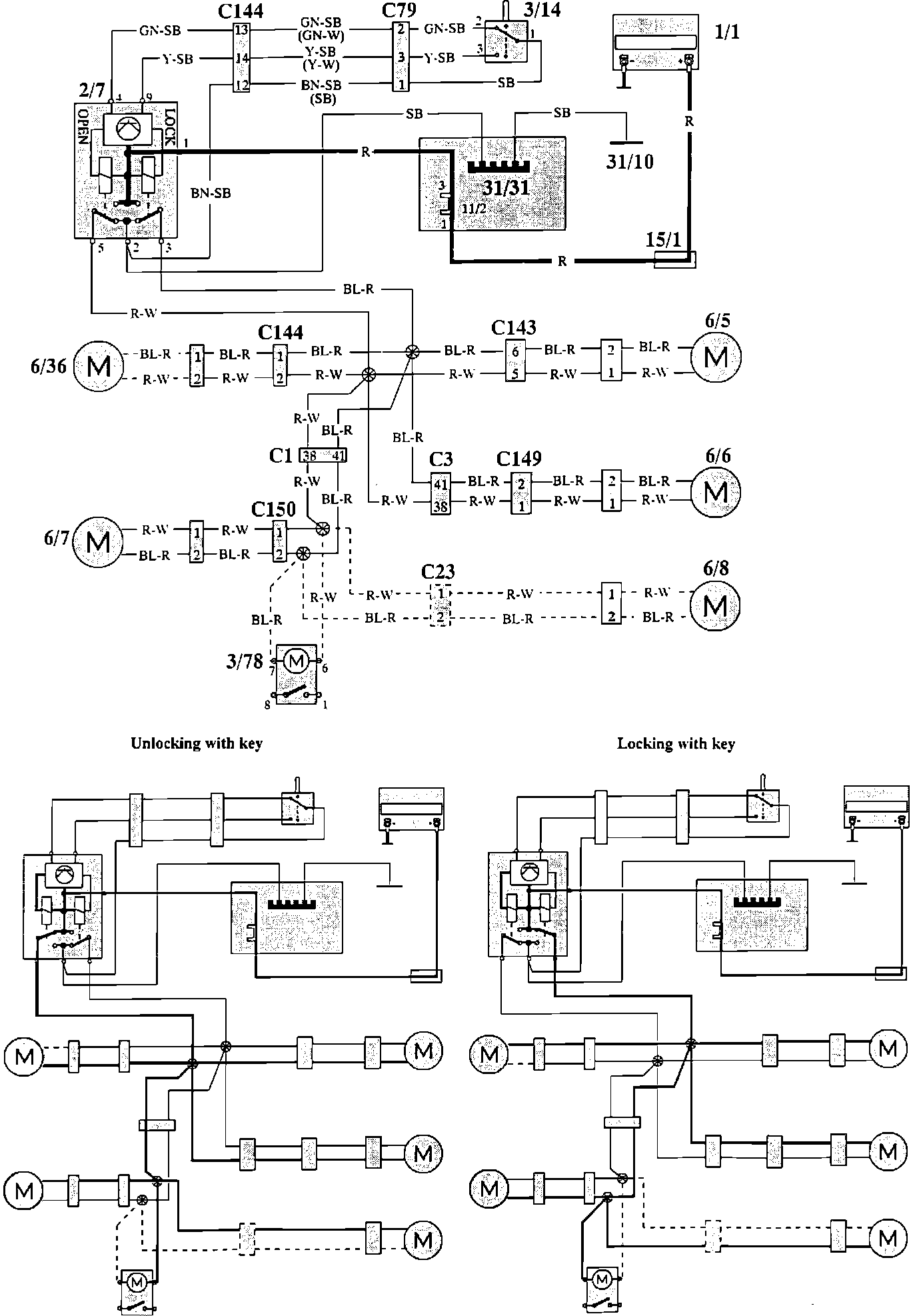

Central Lock Wiring:




Wiring Diagram

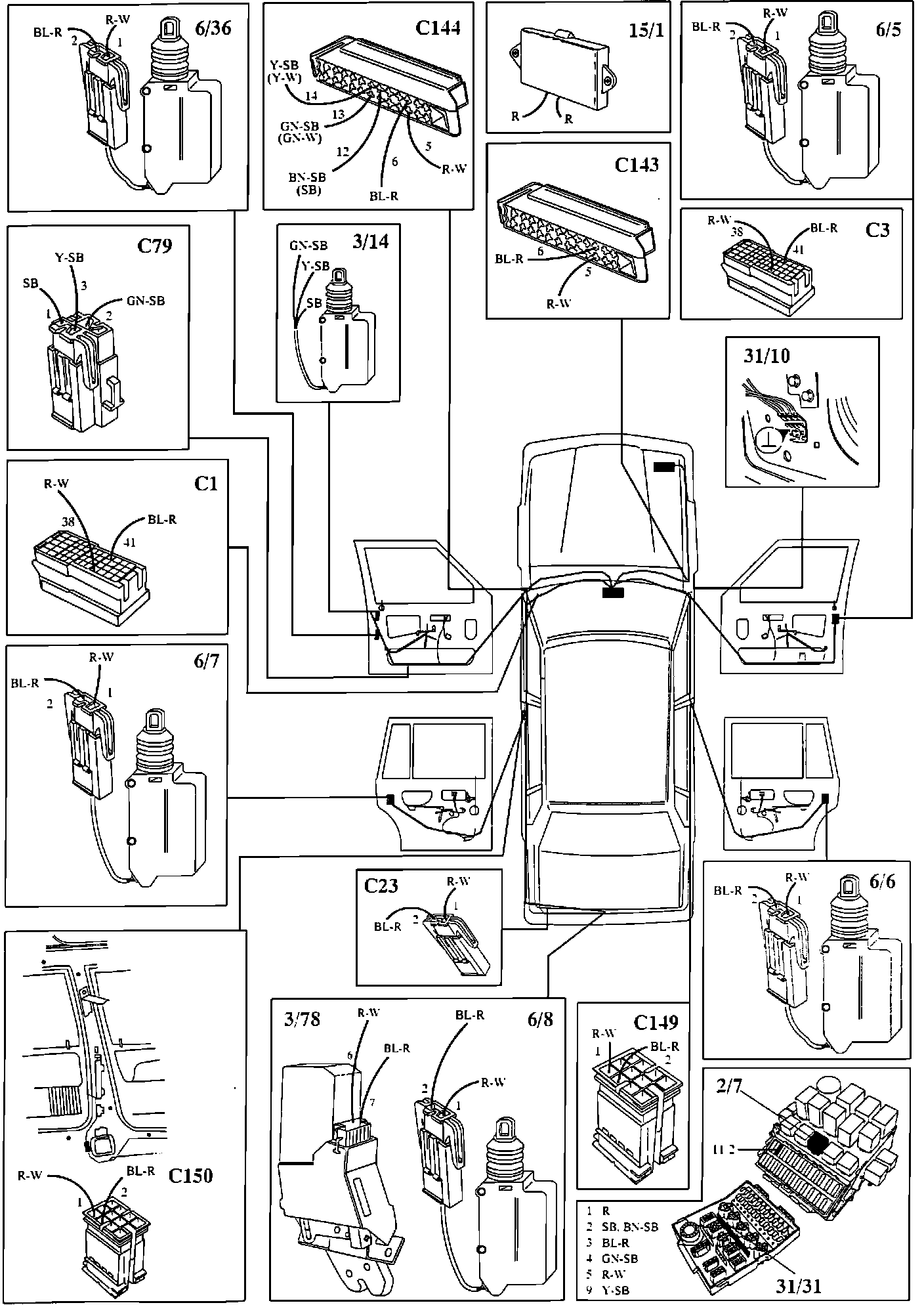

Central Lock Components:




Component Locations

Component Index And Identification:




Component Index And Identification:




Component Index And Identification:
