System Diagram

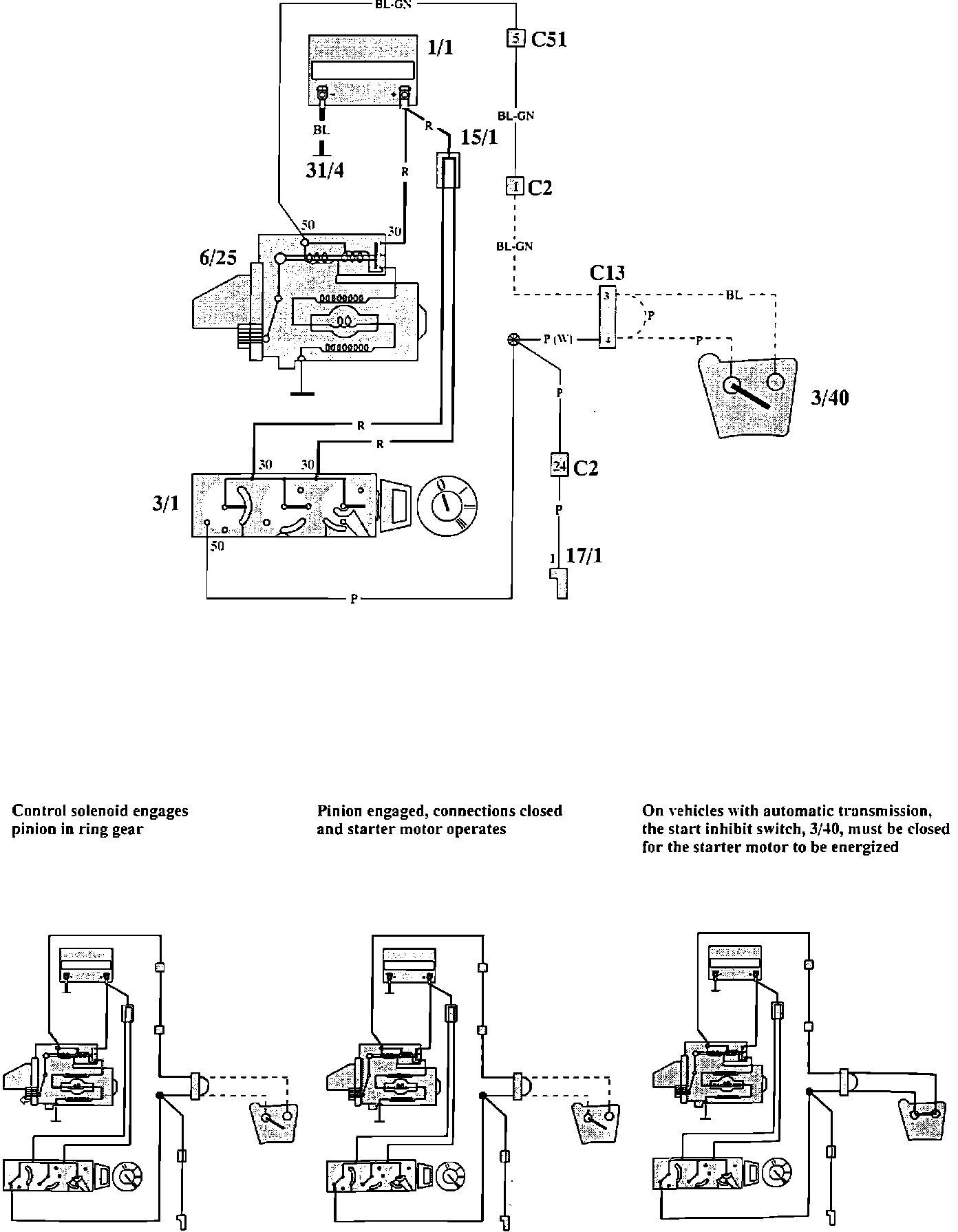

Starter System Wiring:




Wiring Diagram

Starter System Components:




Component Locations

Component Index And Identification:




Component Index And Identification:




Component Index And Identification:
