Vacuum Control Solenoid Valve, M/T

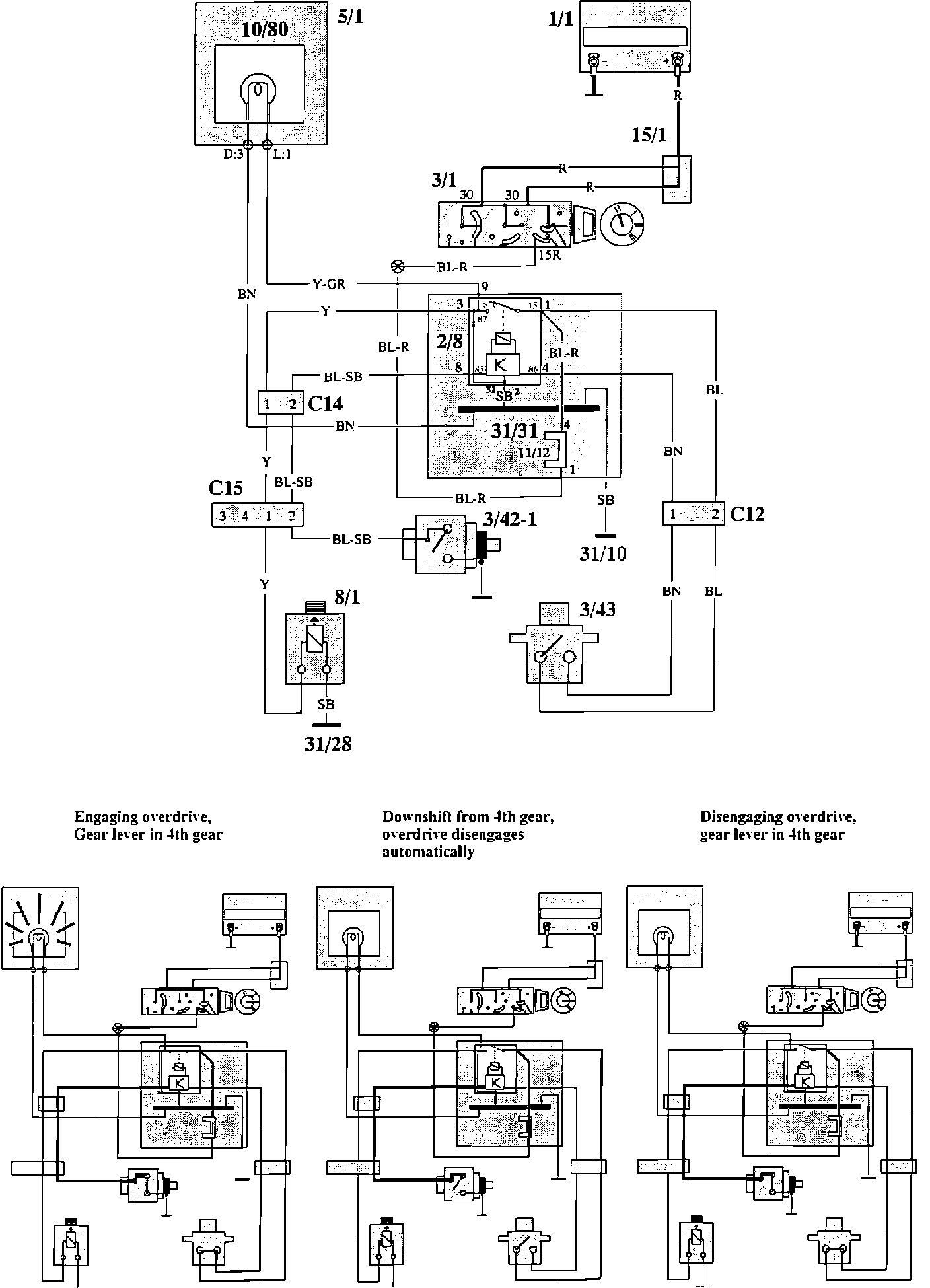

Overdrive Wiring (M 46):





Wiring Diagram

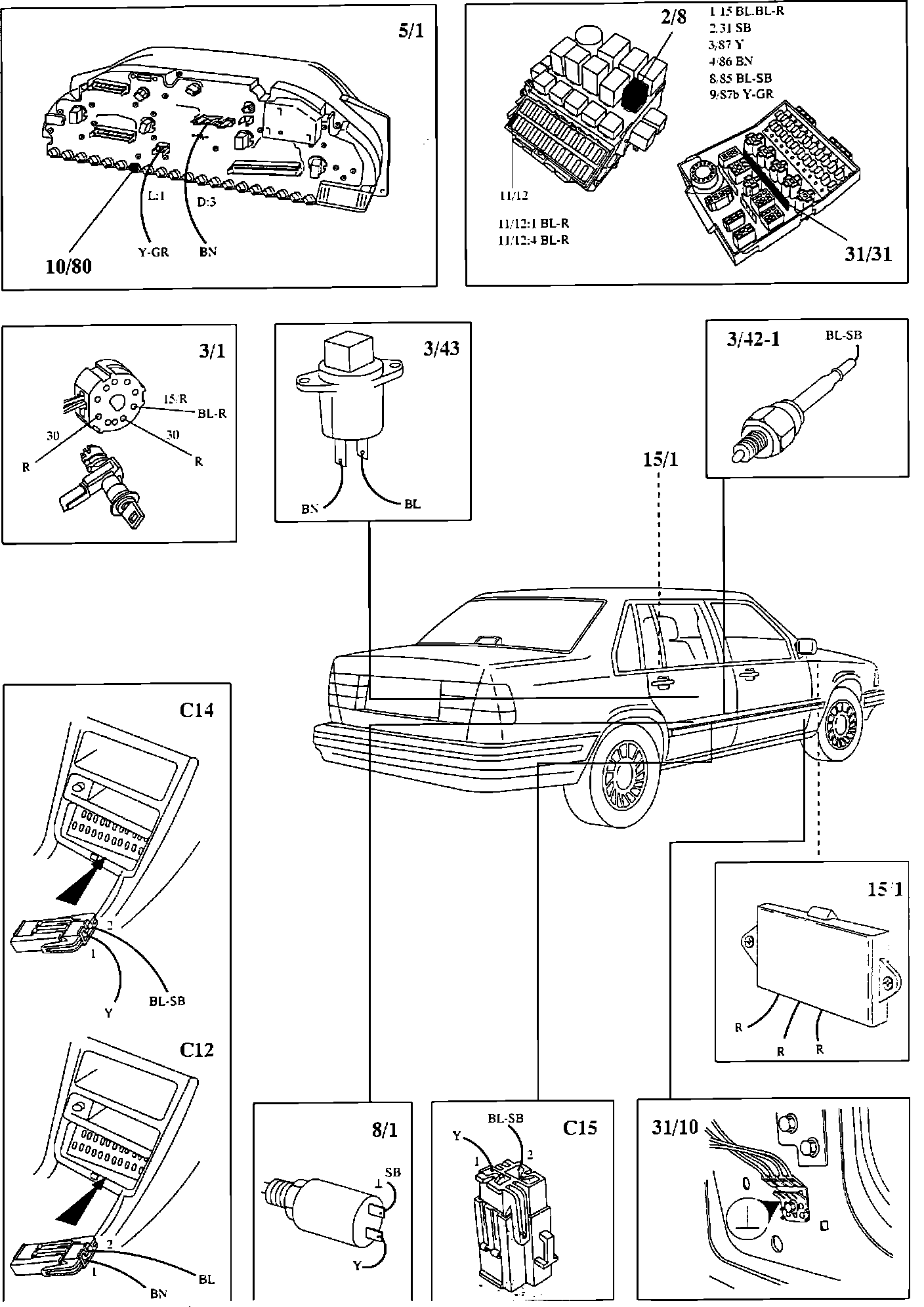

Overdrive Components (M 46):





Component Locations
