Headlamp Wiper/Washer

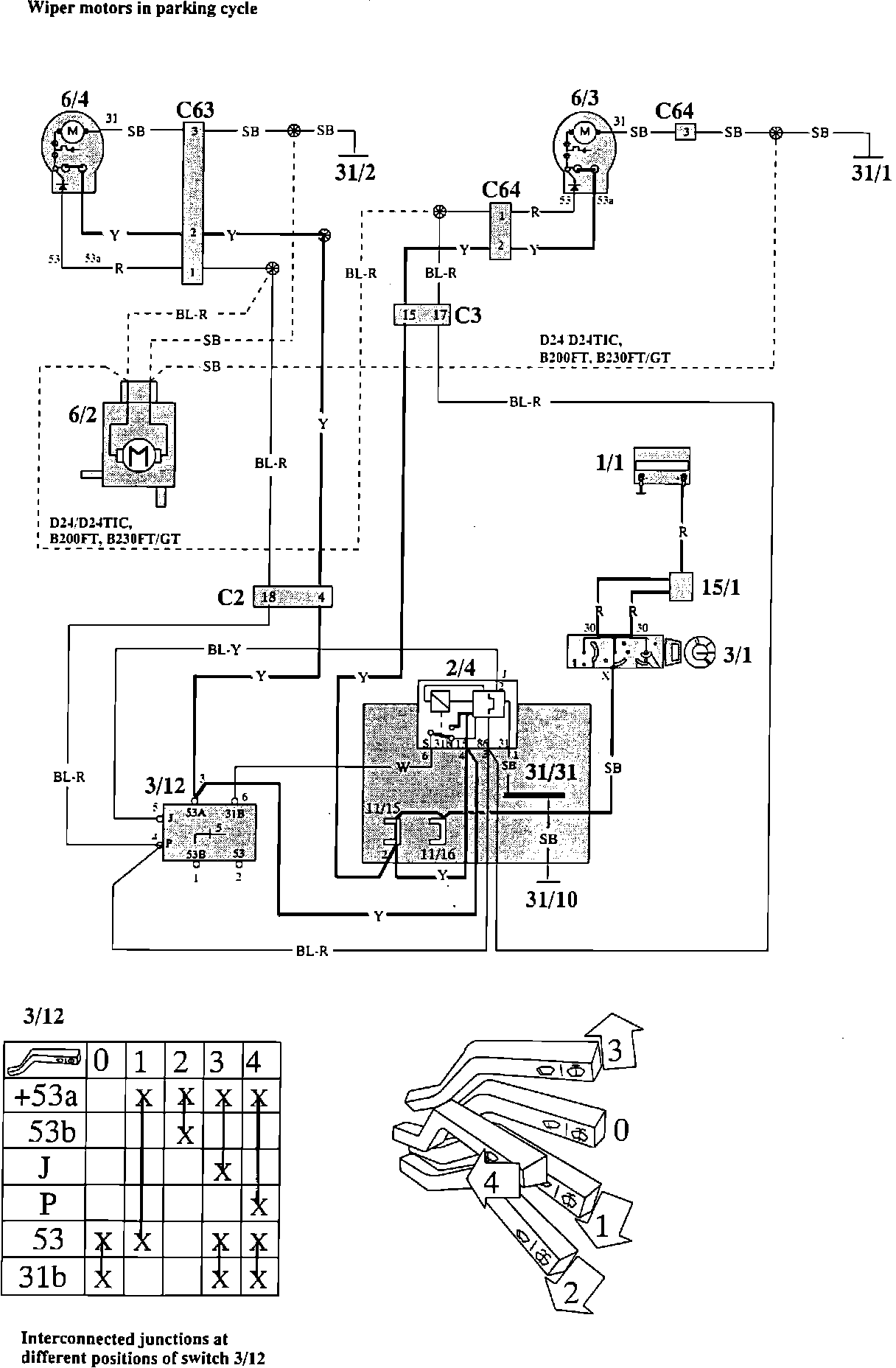

Headlight Wiper/washer Wiring:




Wiring Diagram

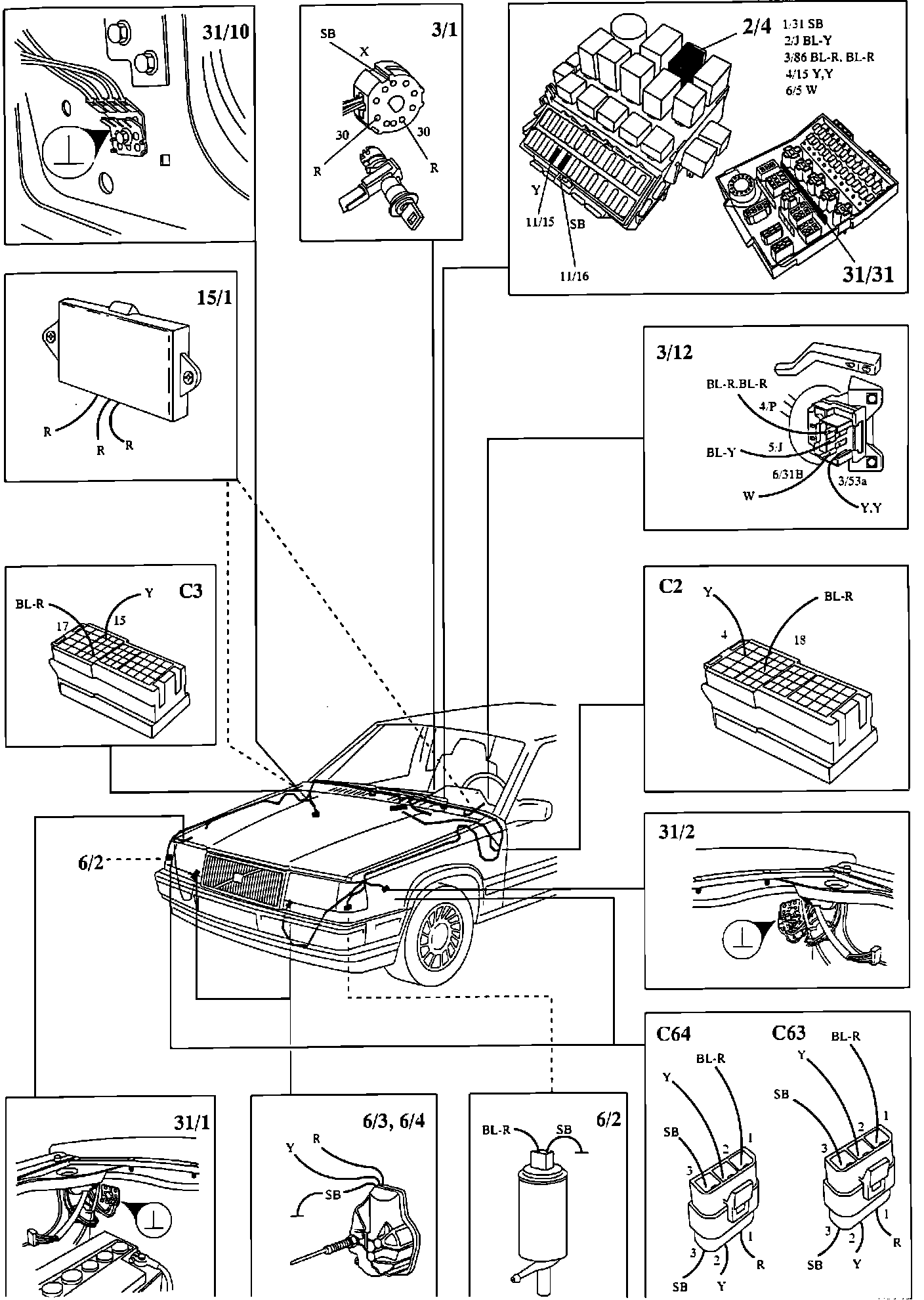

Headlight Wiper/washer Components:




Component Locations

Component Index And Identification:




Component Index And Identification:




Component Index And Identification:
