Shift Interlock, A/T

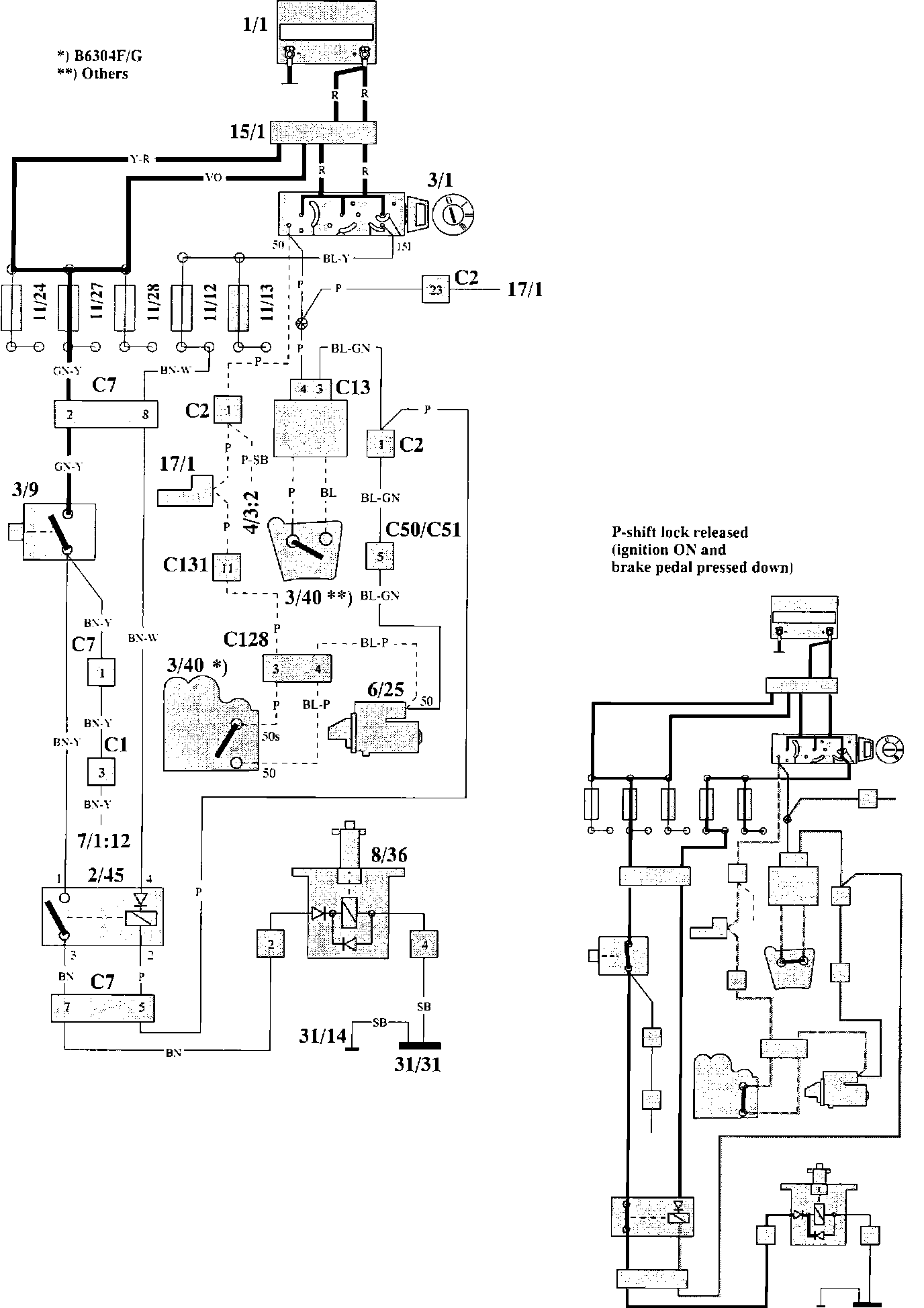

Park Shift Lock Wiring:





Wiring Diagram

Park Shift Lock Components:





Component Locations
