Backup Lamp
Backup Lamp

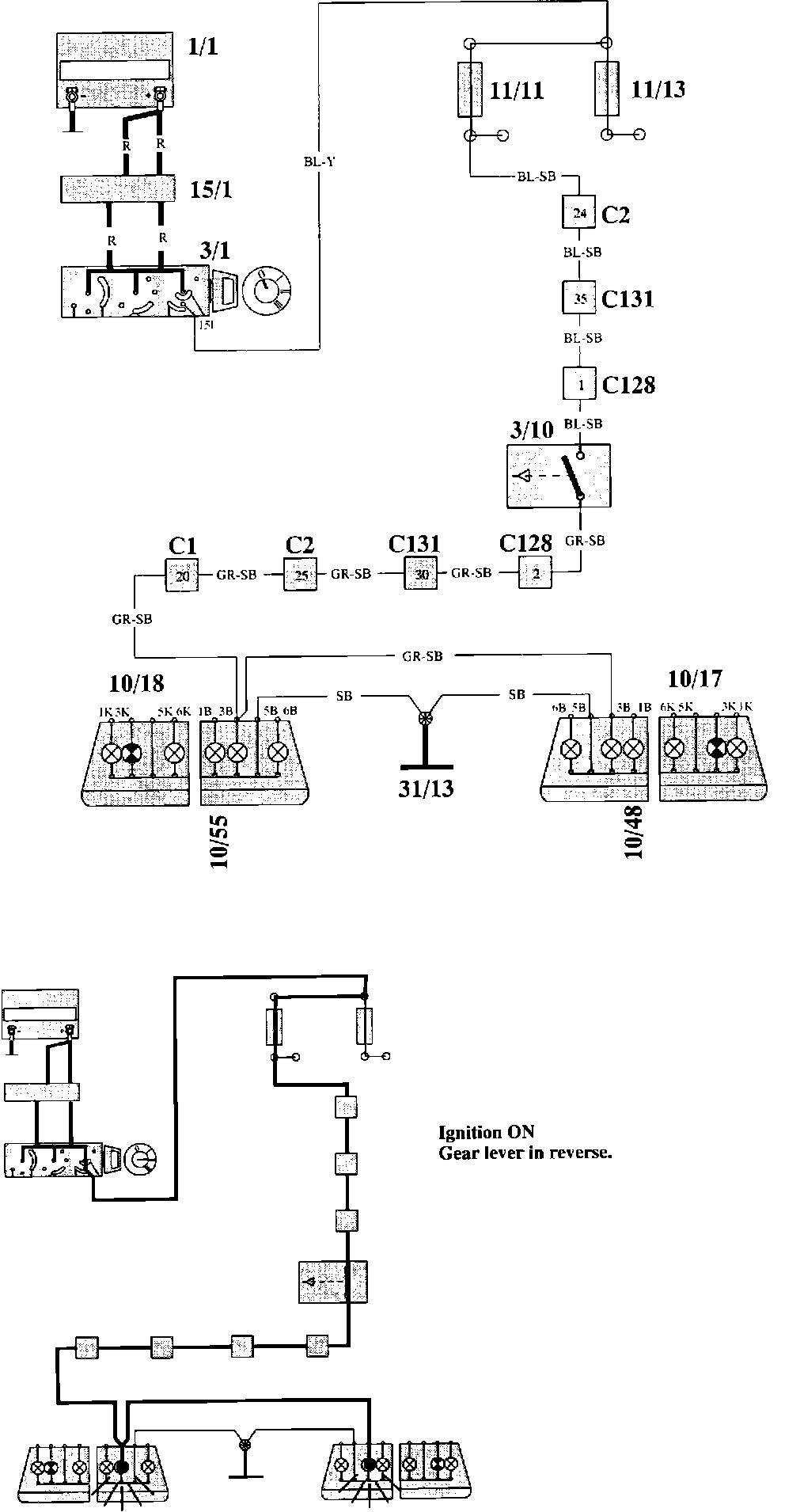

Backup Light Wiring:
Wiring Diagram

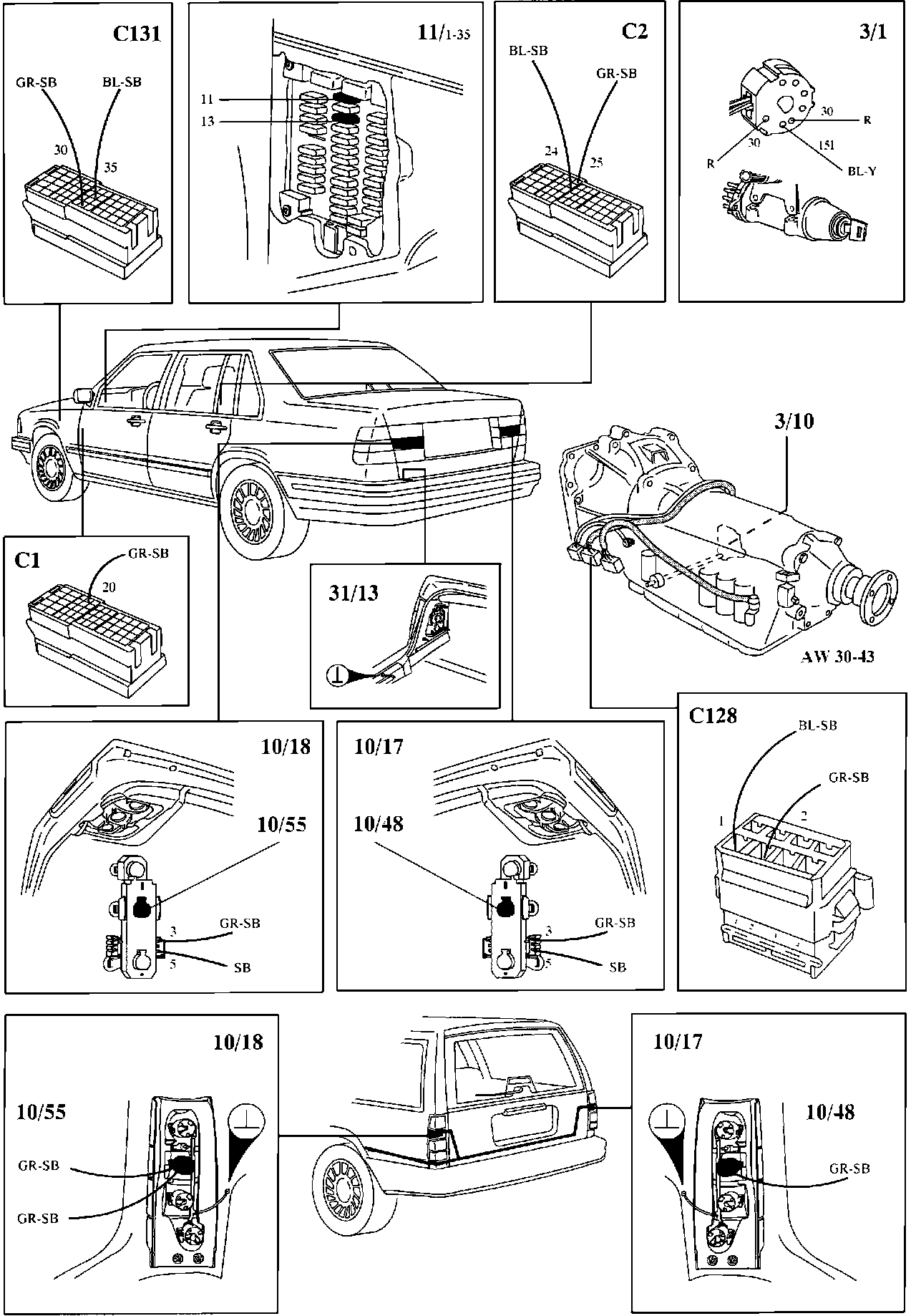

Backup Light Components:
Component Locations
