4-Door

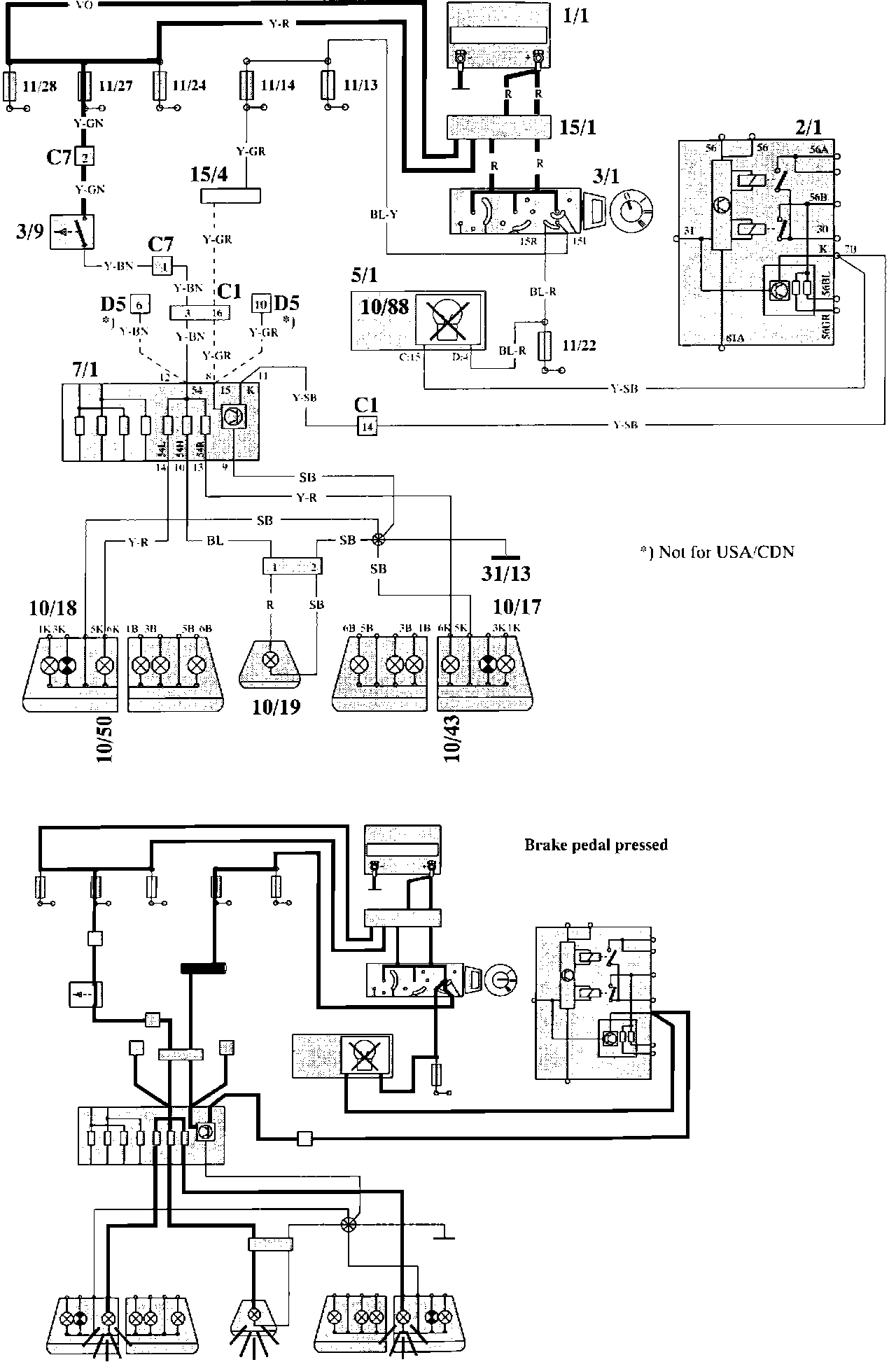

Brake Light Wiring, 4-door:

Wiring Diagram

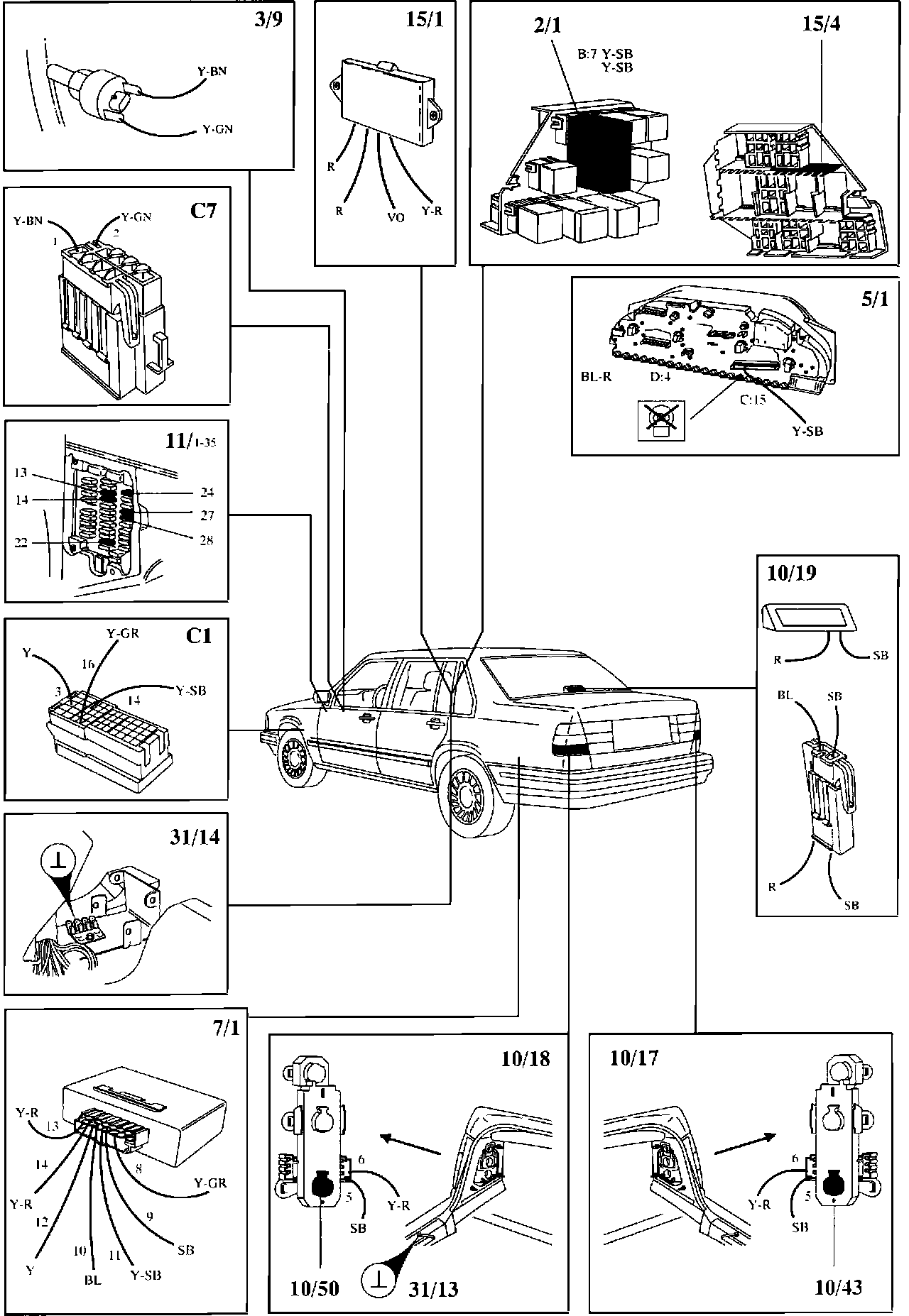

Brake Light Components, 4-door:

Component Locations
