Less Brake Circuit Monitor

Bulb Failure Sensor Wiring:

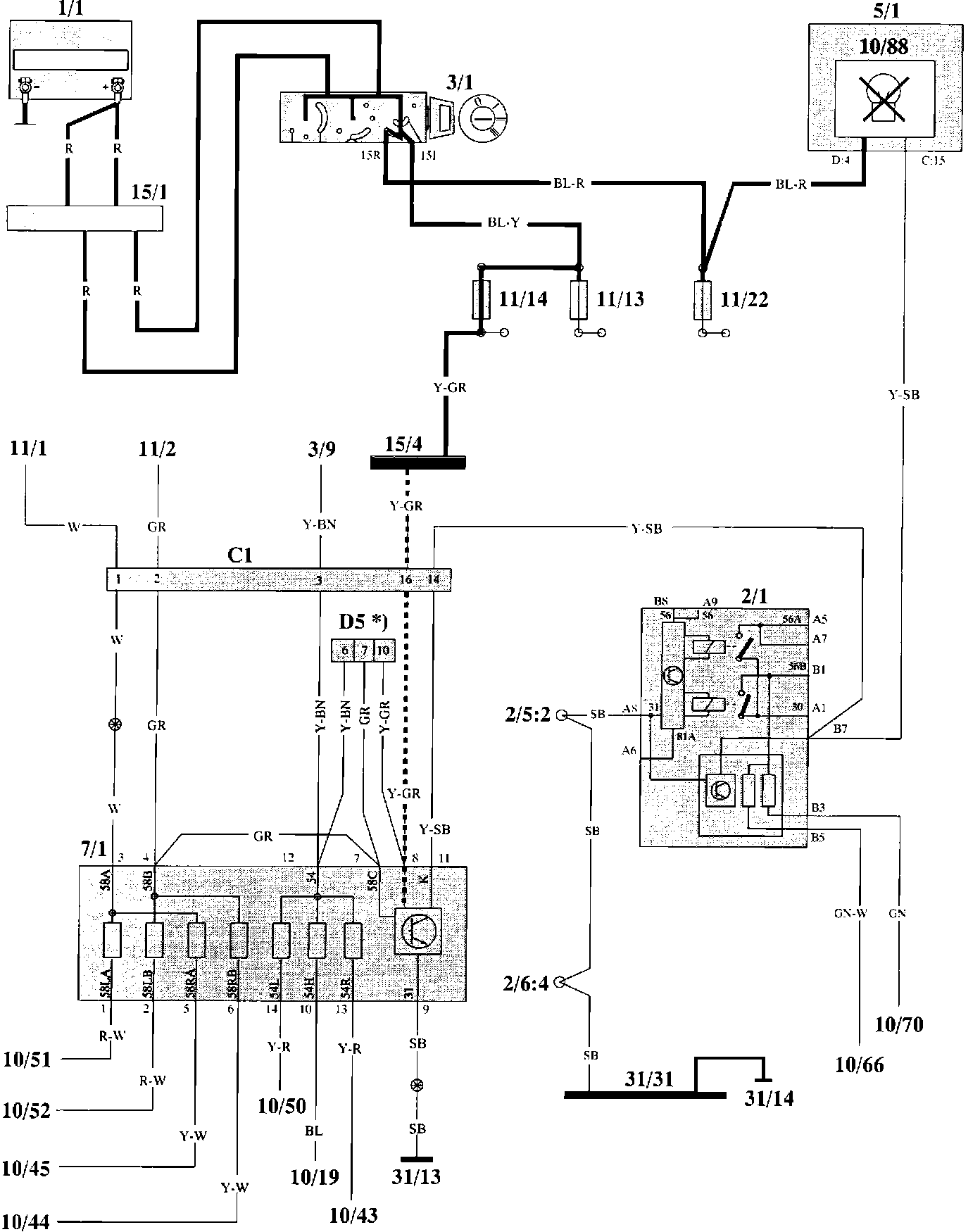

Wiring Diagram

Bulb Failure Sensor Components:

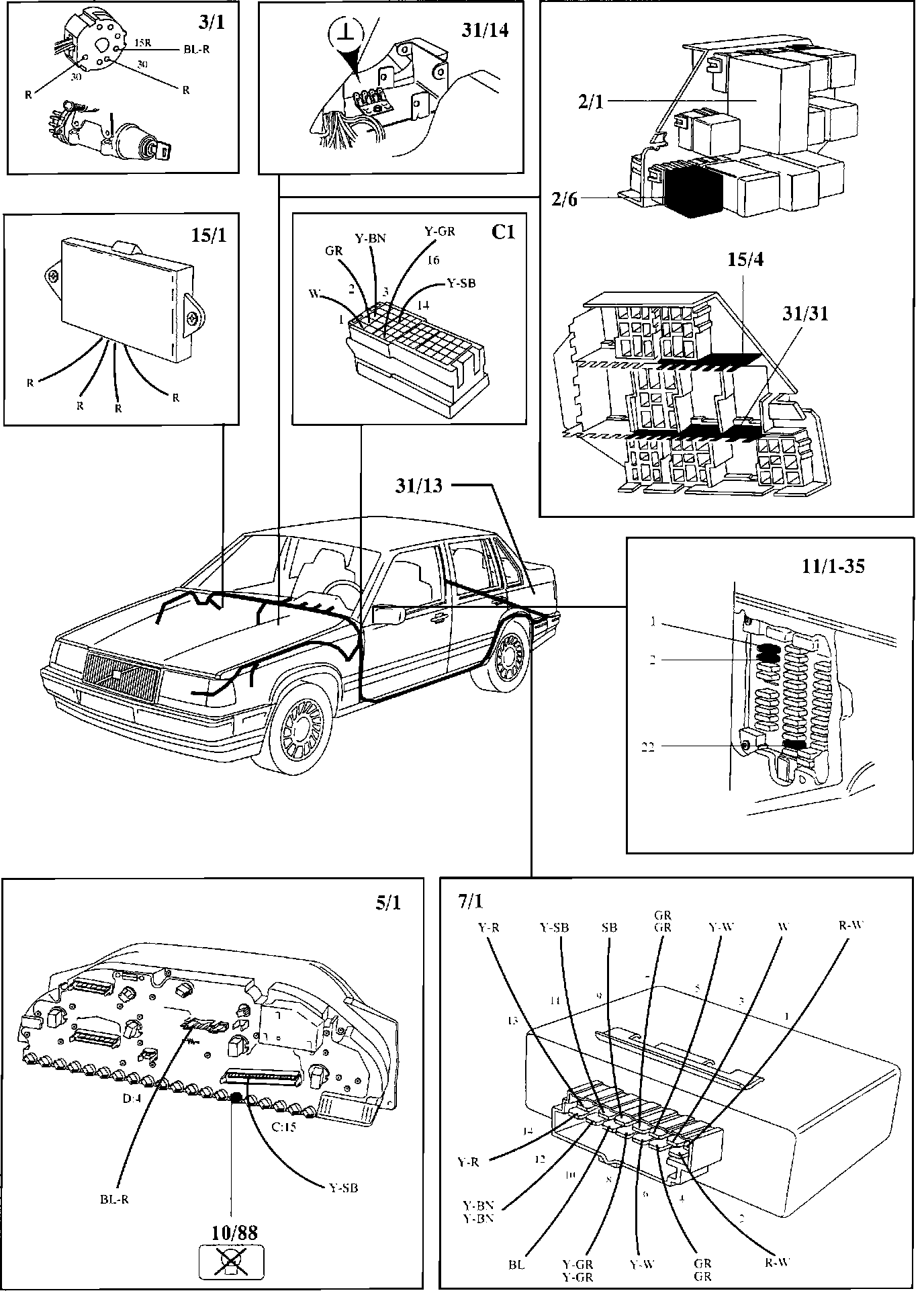

Component Locations
