System Diagram

Central Lock System Wiring:





Wiring Diagram

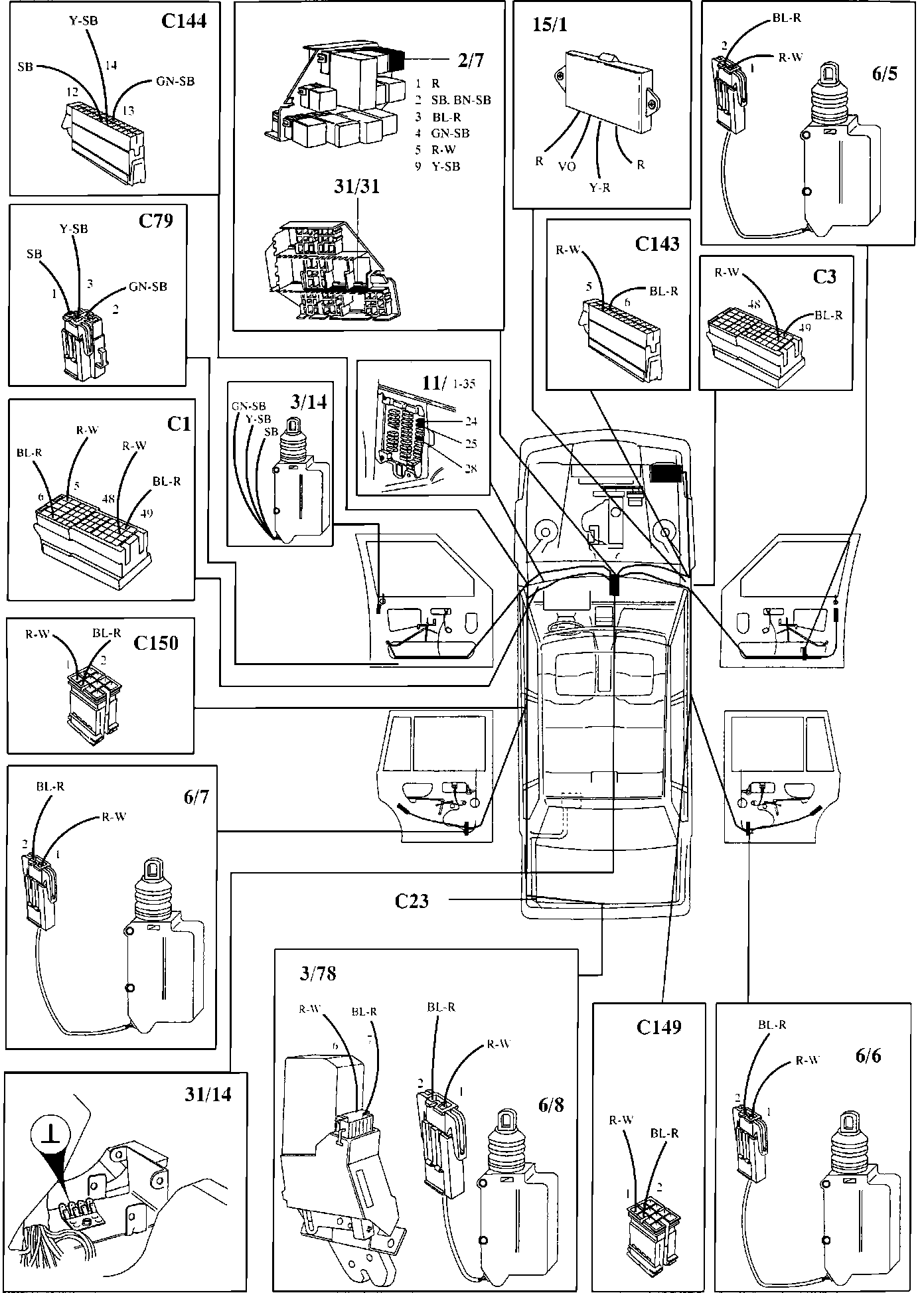

Central Lock System Components:





Component Locations
