System Diagram

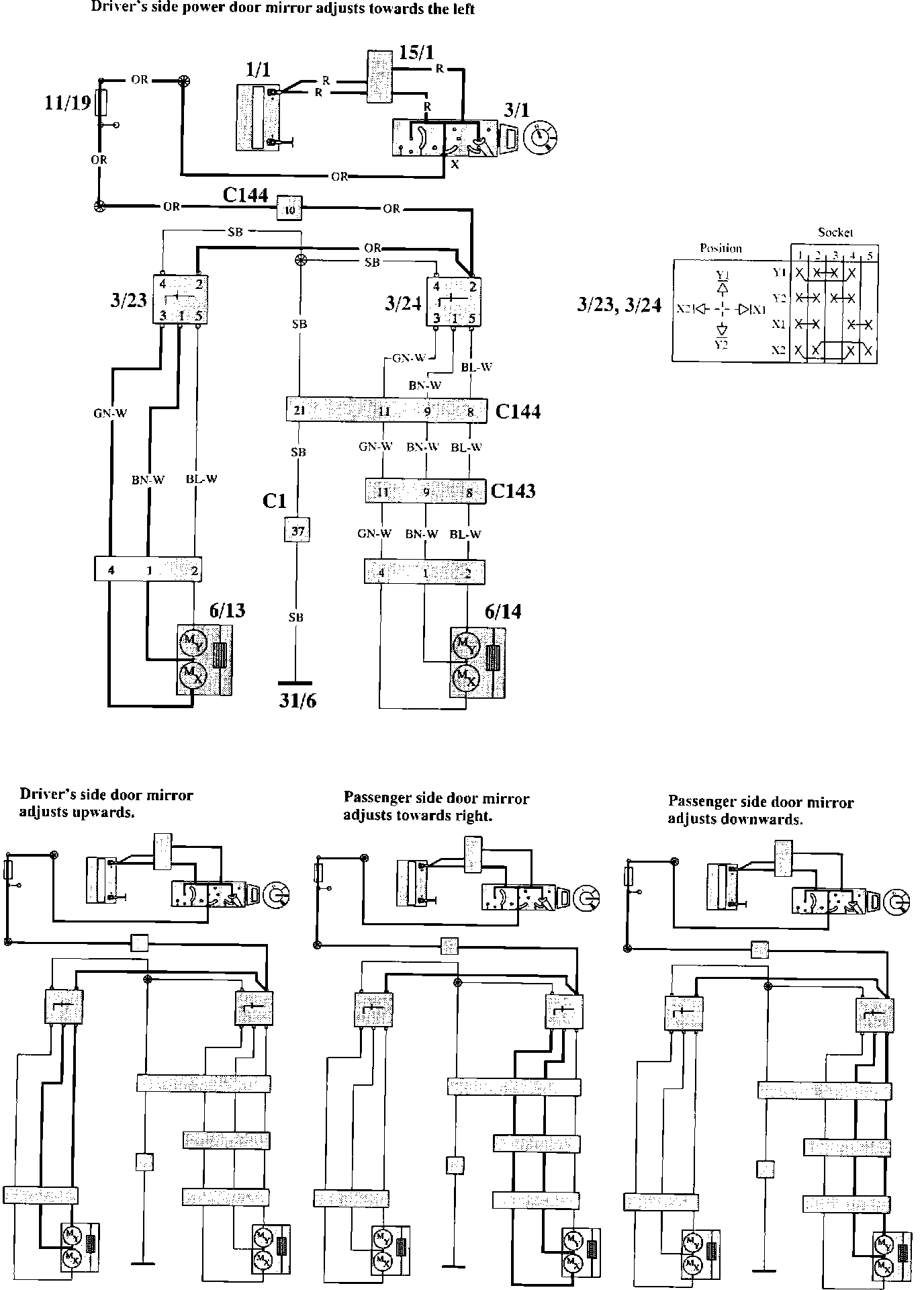

Power Door Mirror Wiring:





Wiring Diagram

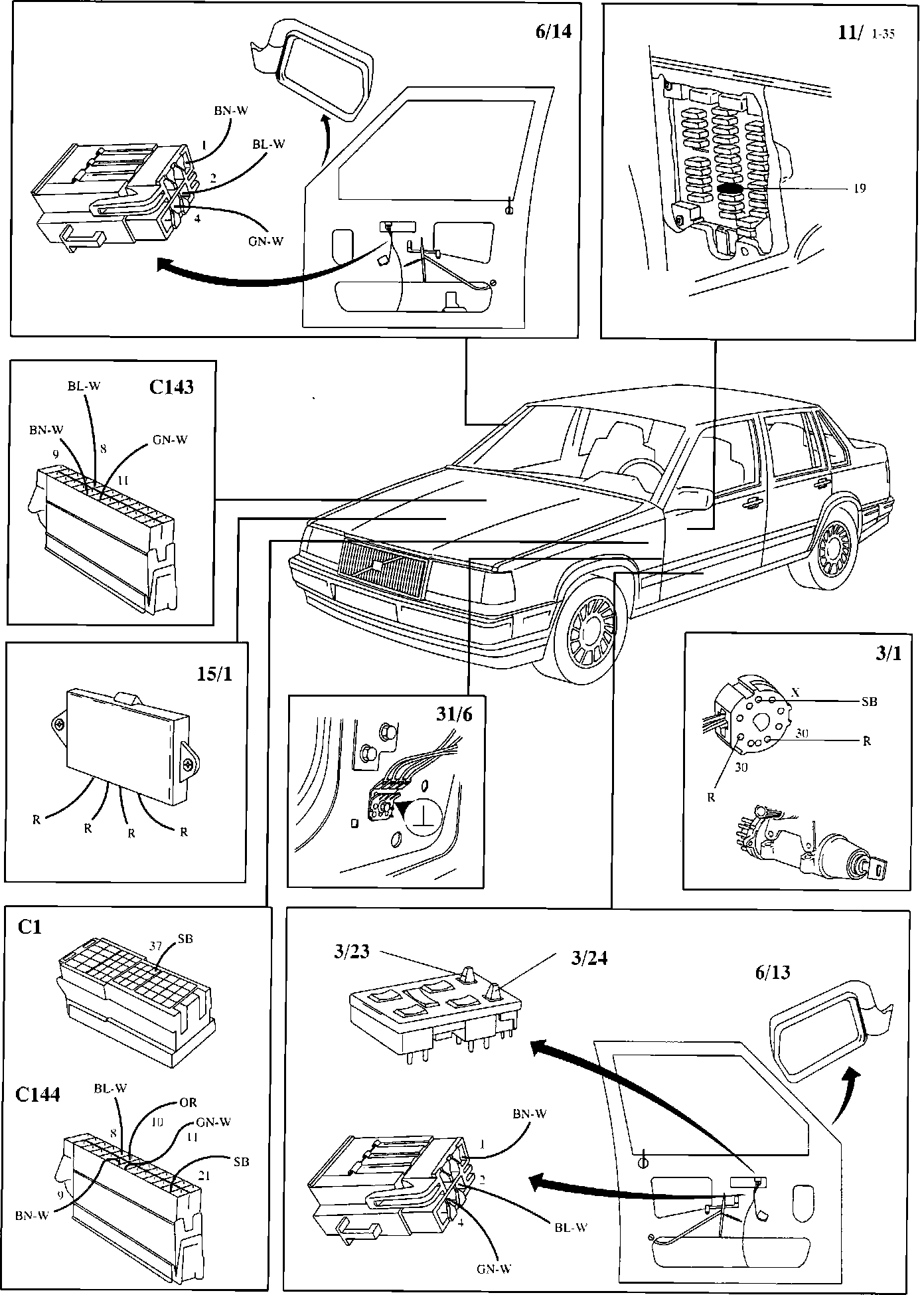

Power Door Mirror Components:





Component Locations
