Parking Lamp

4-DOOR

Parking/Tail/License Plate Light Wiring:

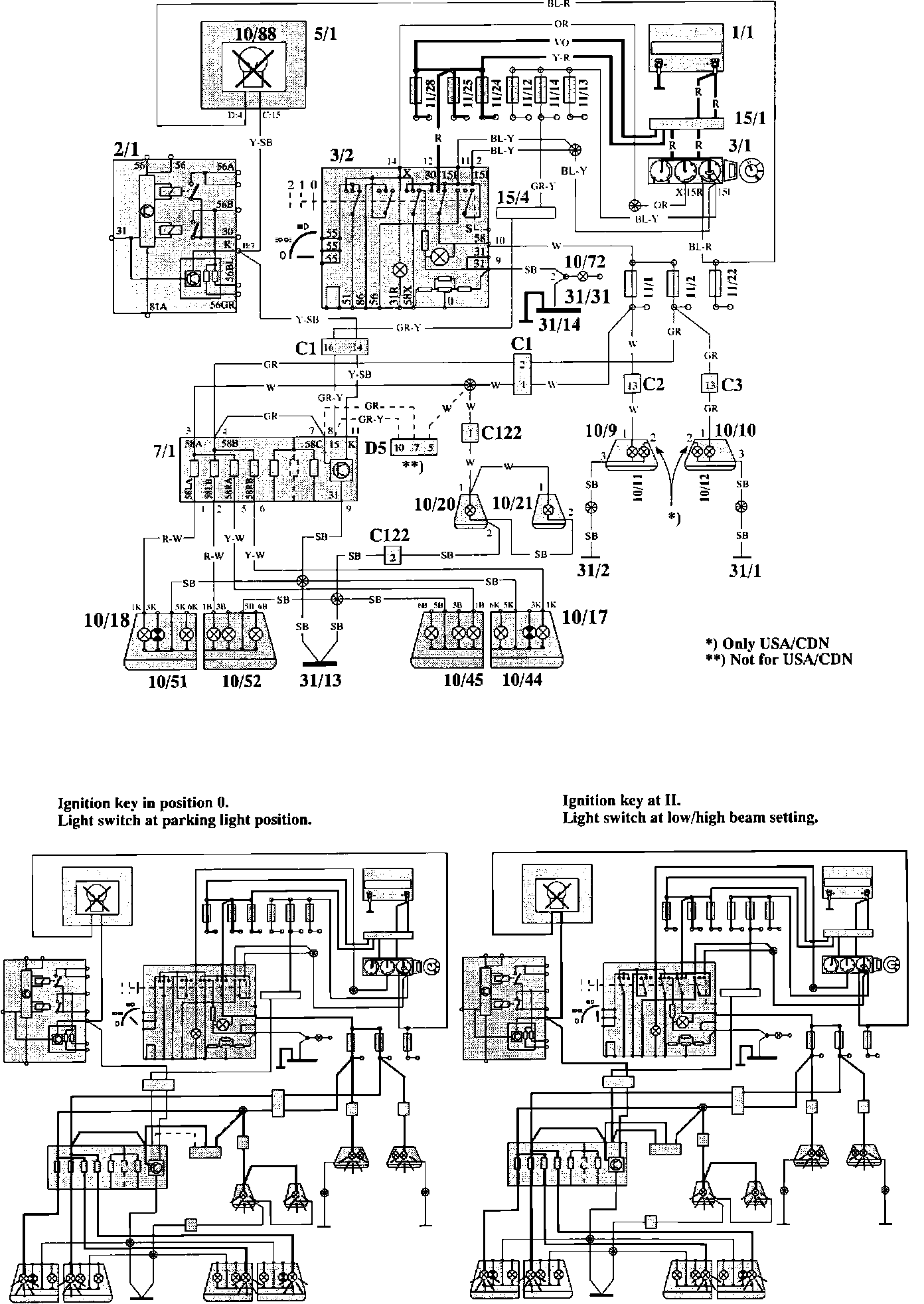

Wiring Diagram

Parking/Tail/License Plate Light Components:

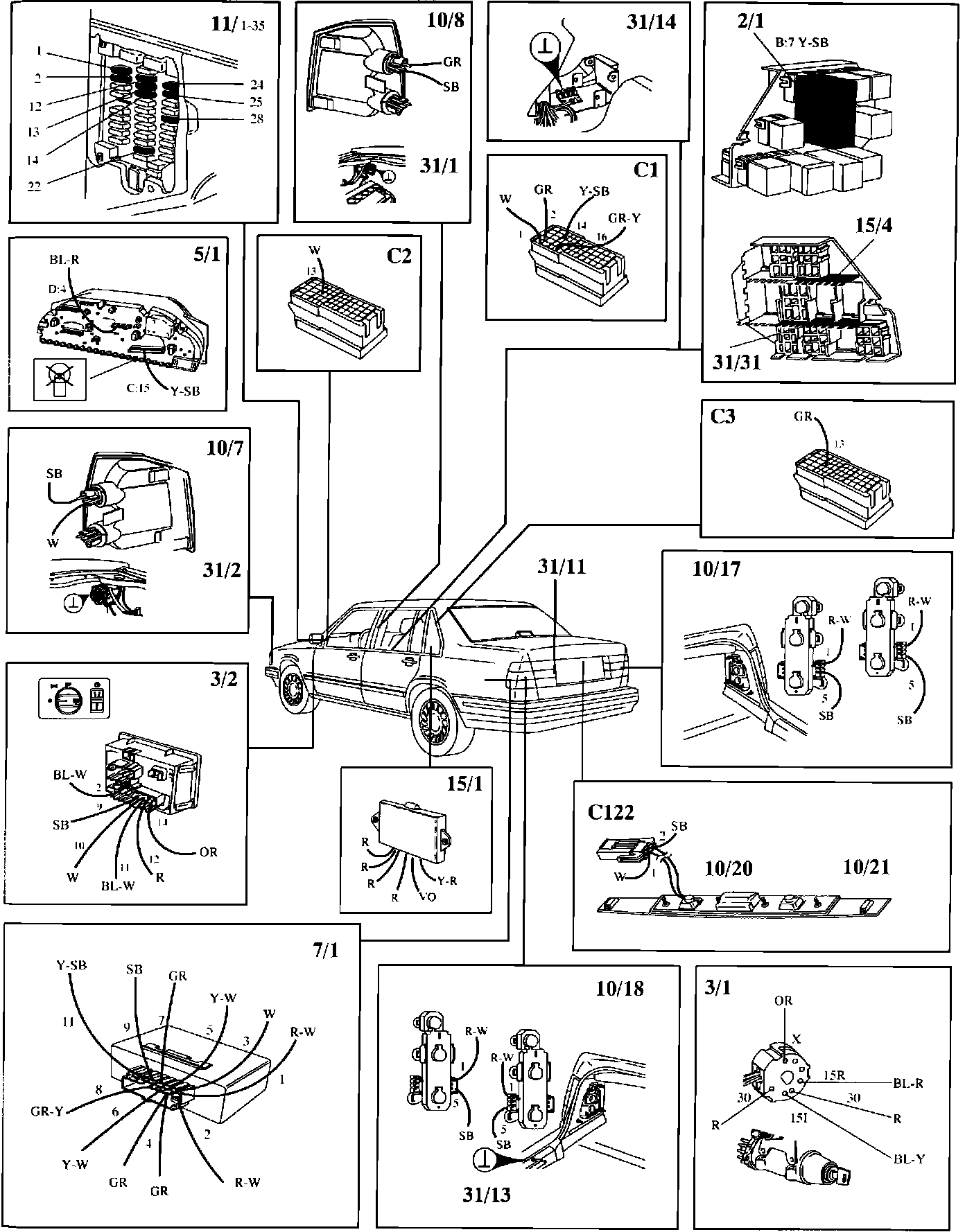

Component Locations

5-DOOR

Parking/Tail/License Plate Light Wiring (5-door):

Wiring Diagram

Parking/Tail/License Plate Light Components (5-door):

Component Locations
