System Diagram

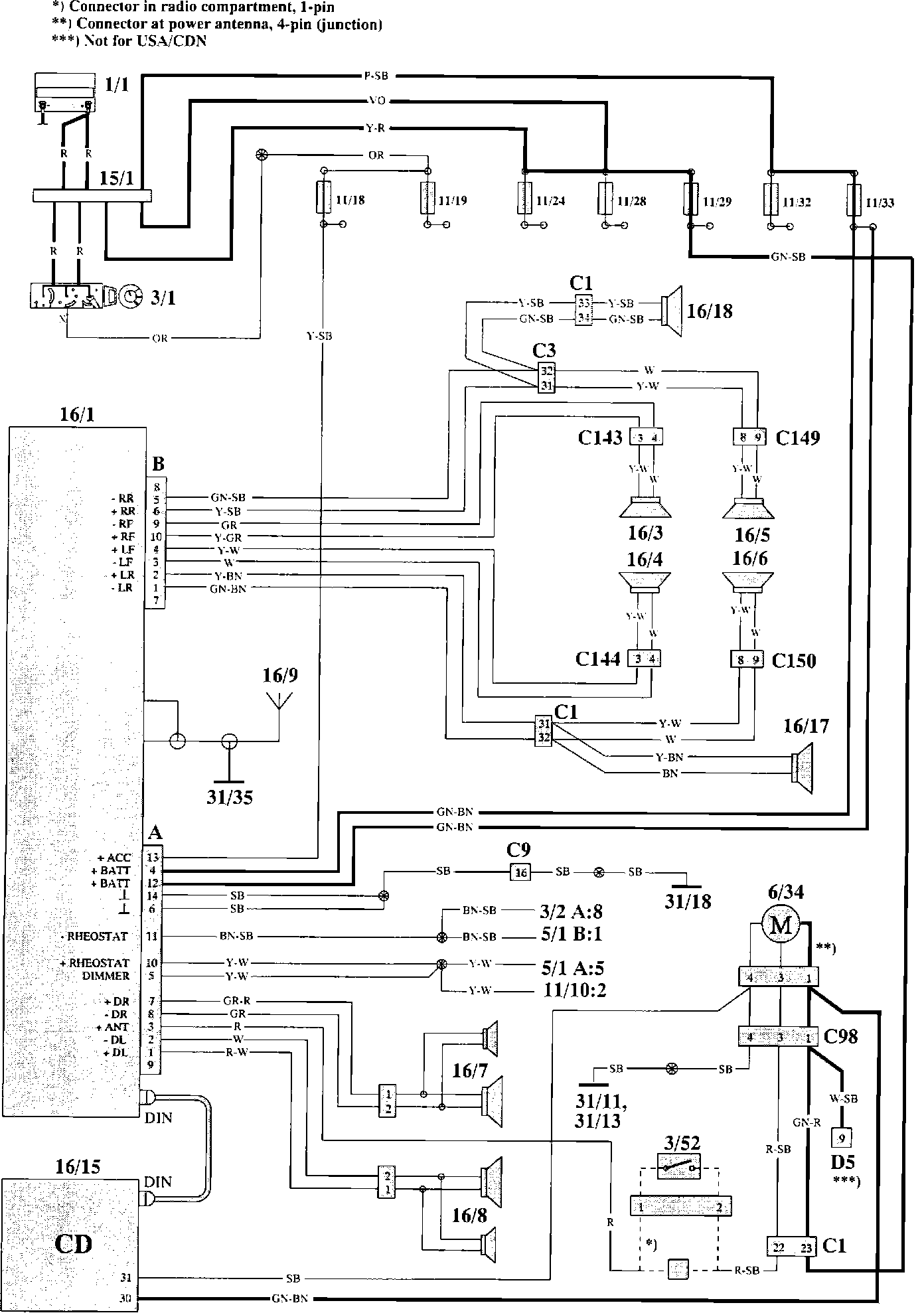

Radio/CD/Antenna Wiring:

Wiring Diagram

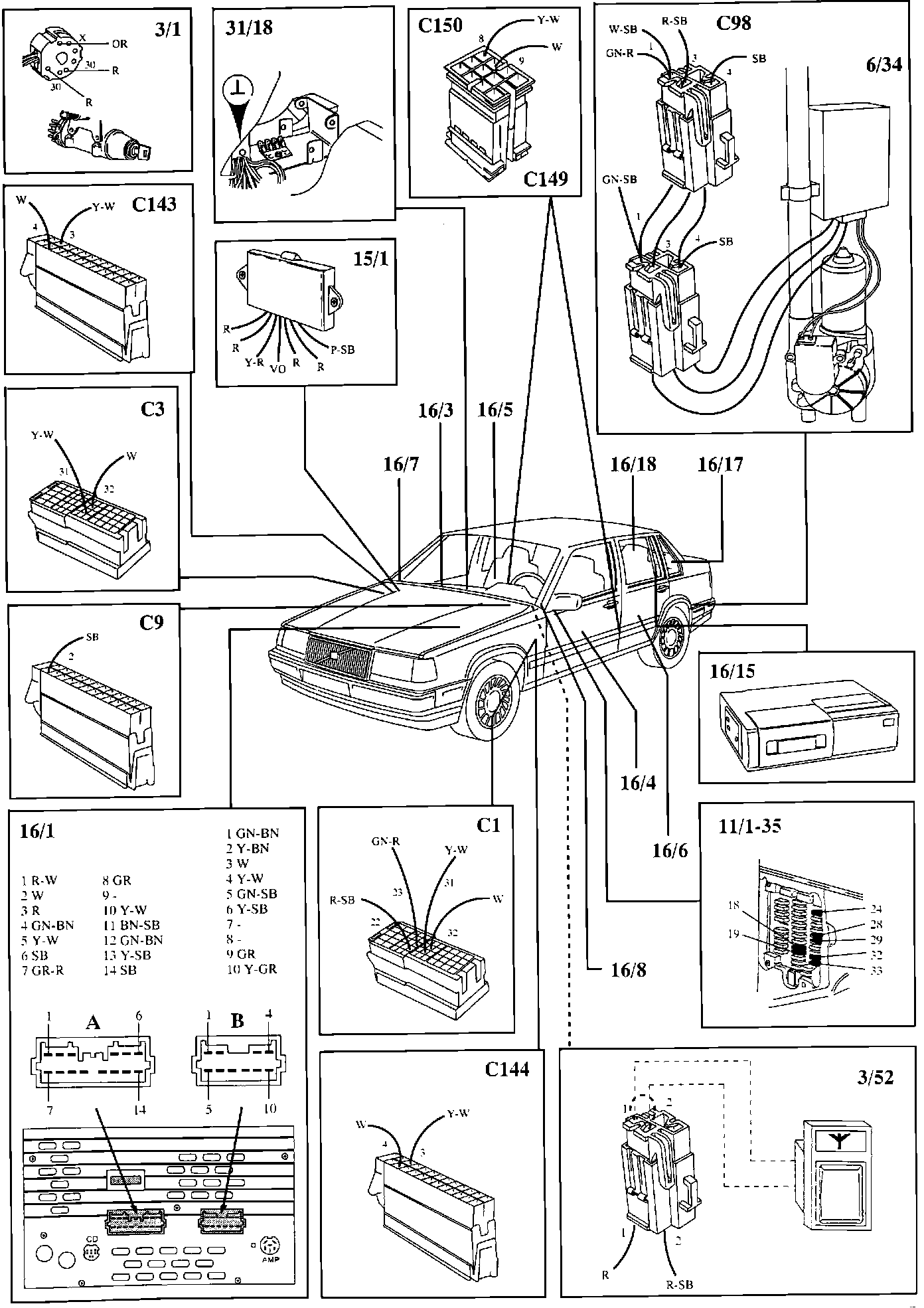

Radio/CD/Antenna Components:

Component Locations
