Rear Defogger
Rear Defogger

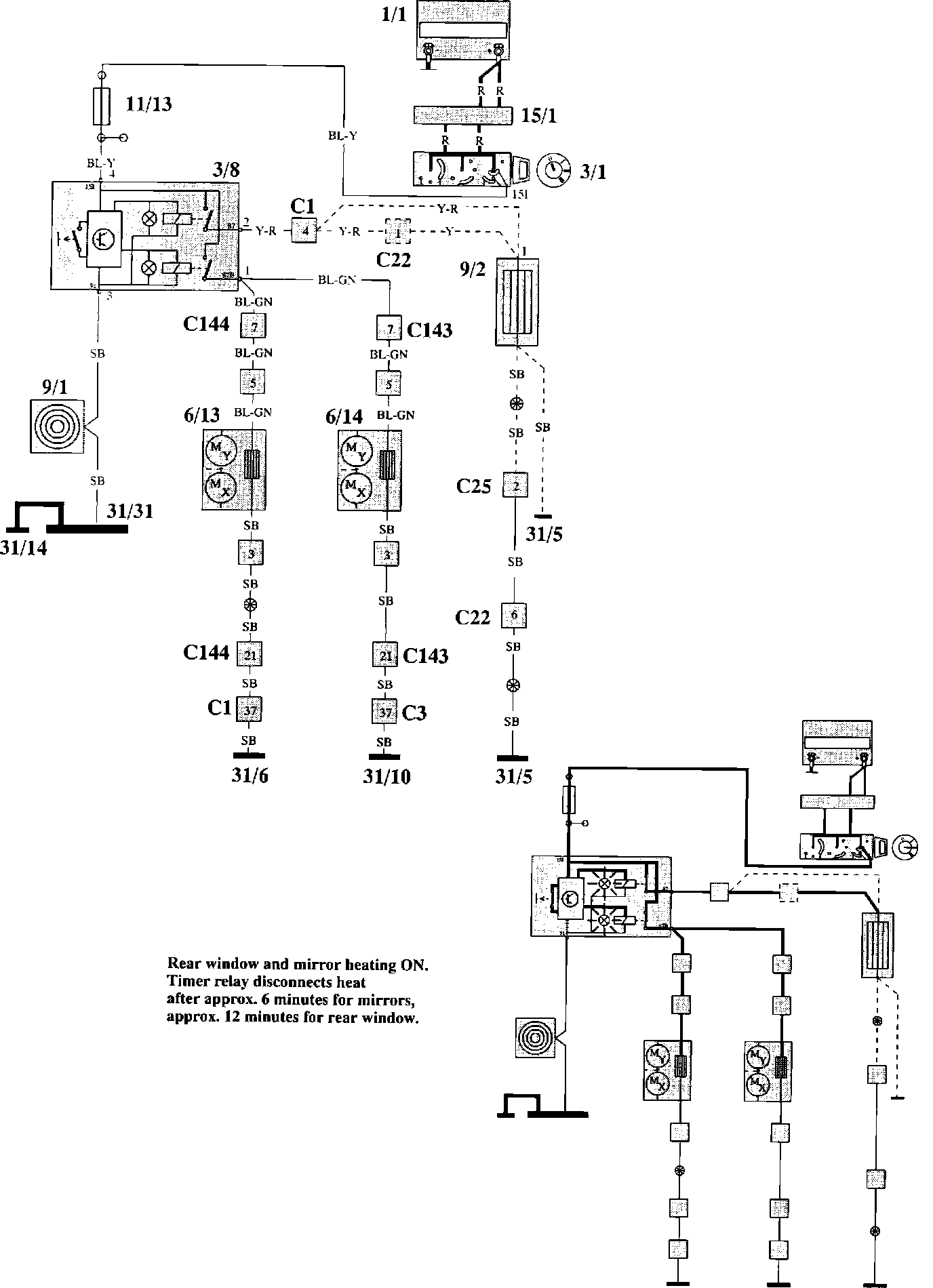

Heated Rear Window & Door Mirror Wiring:
Wiring Diagram
Heated Rear Window & Door Mirror Components:
Component Locations
