Vacuum Control Solenoid Valve, M/T

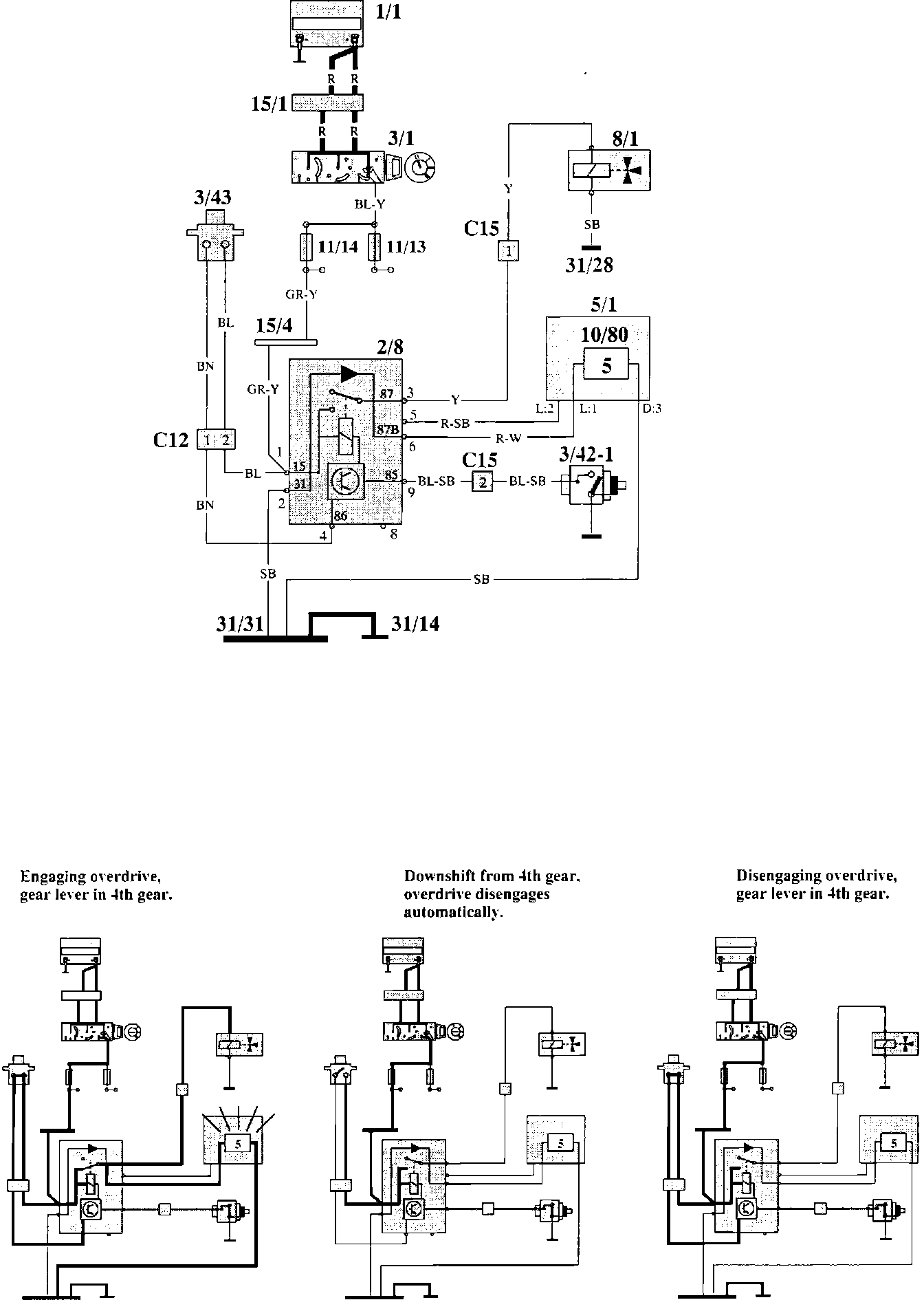

M46 Overdrive Wiring:





Wiring Diagram

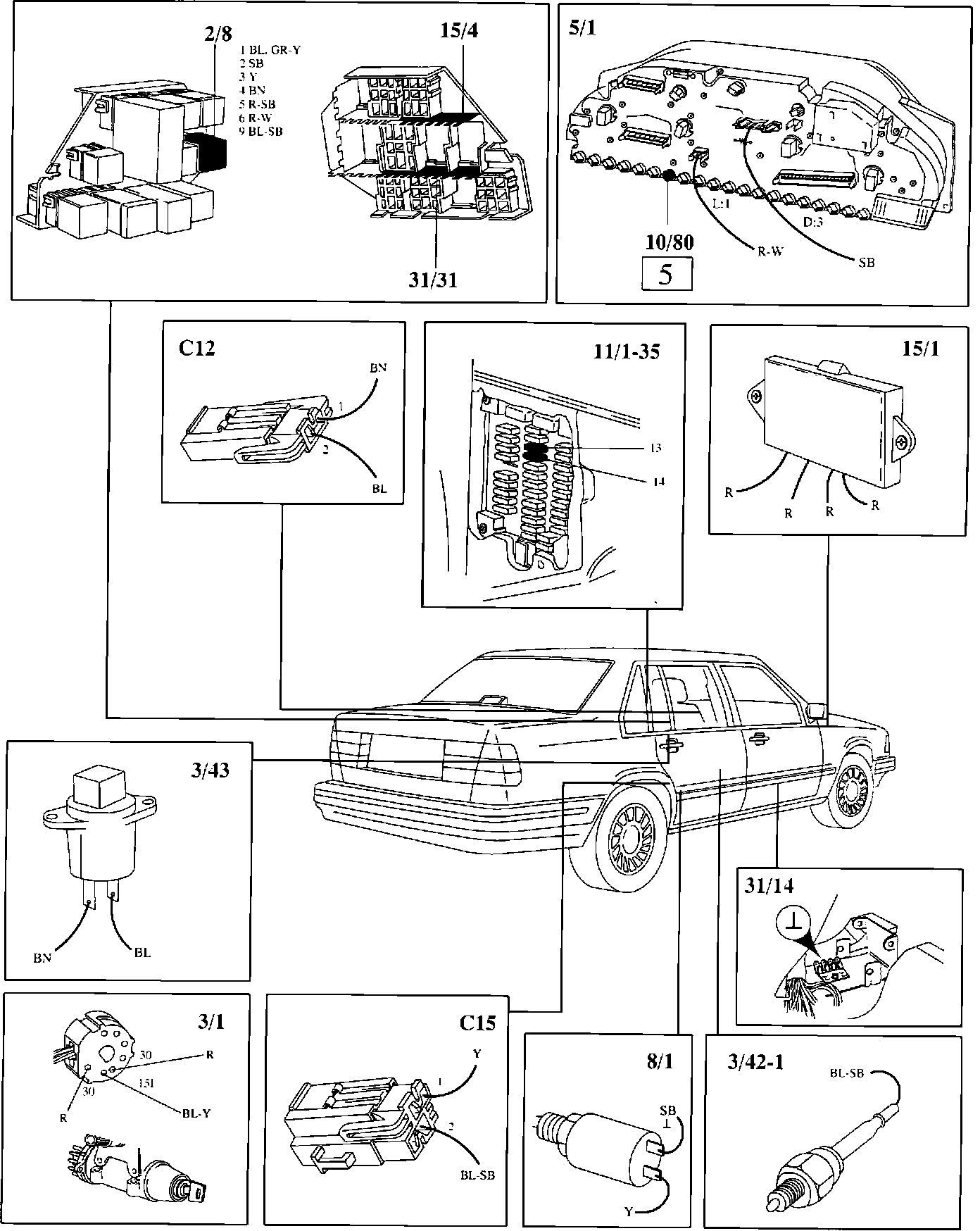

M46 Overdrive Components:





Component Locations
