System Diagram

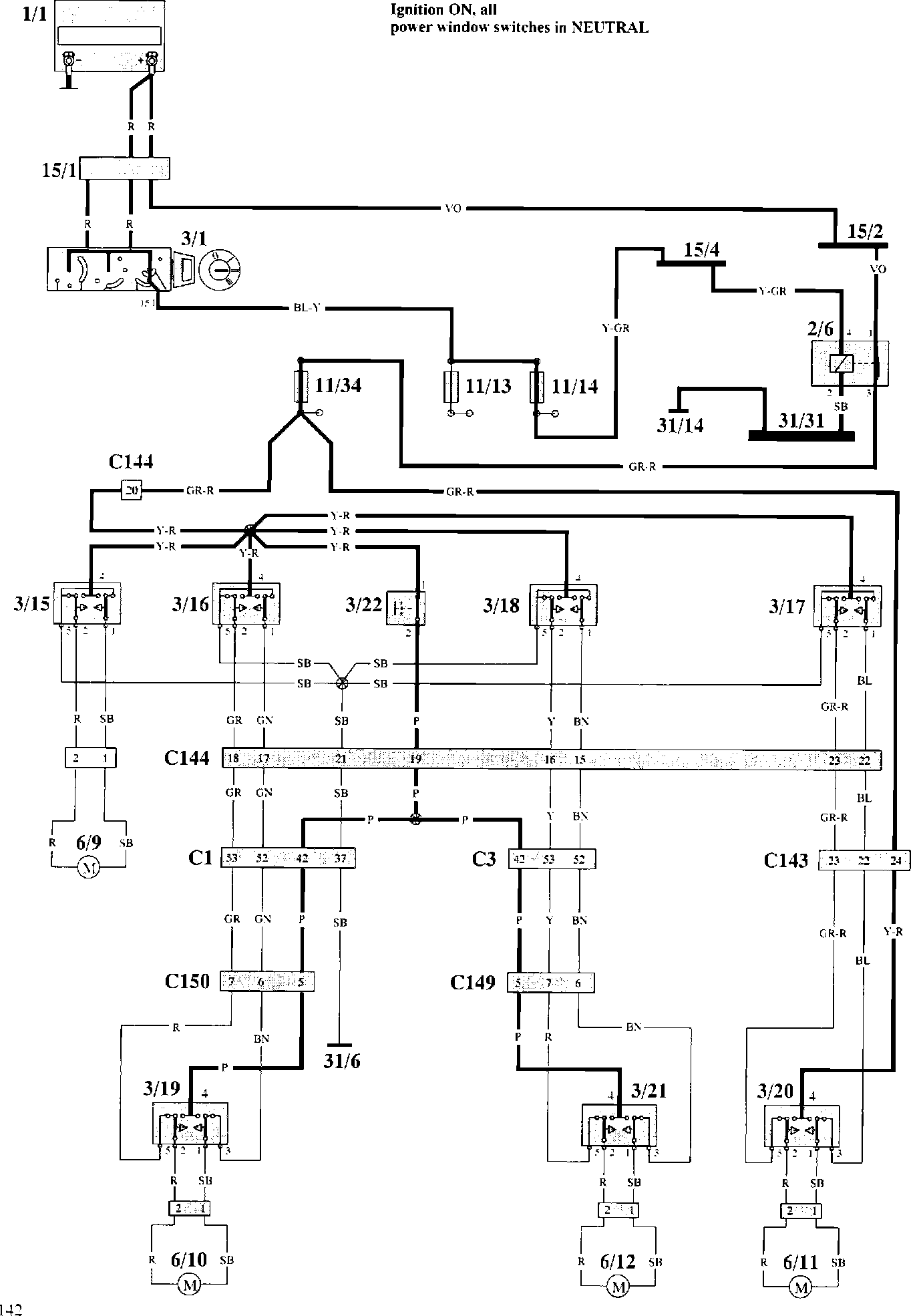

Power Window Wiring:





Wiring Diagram

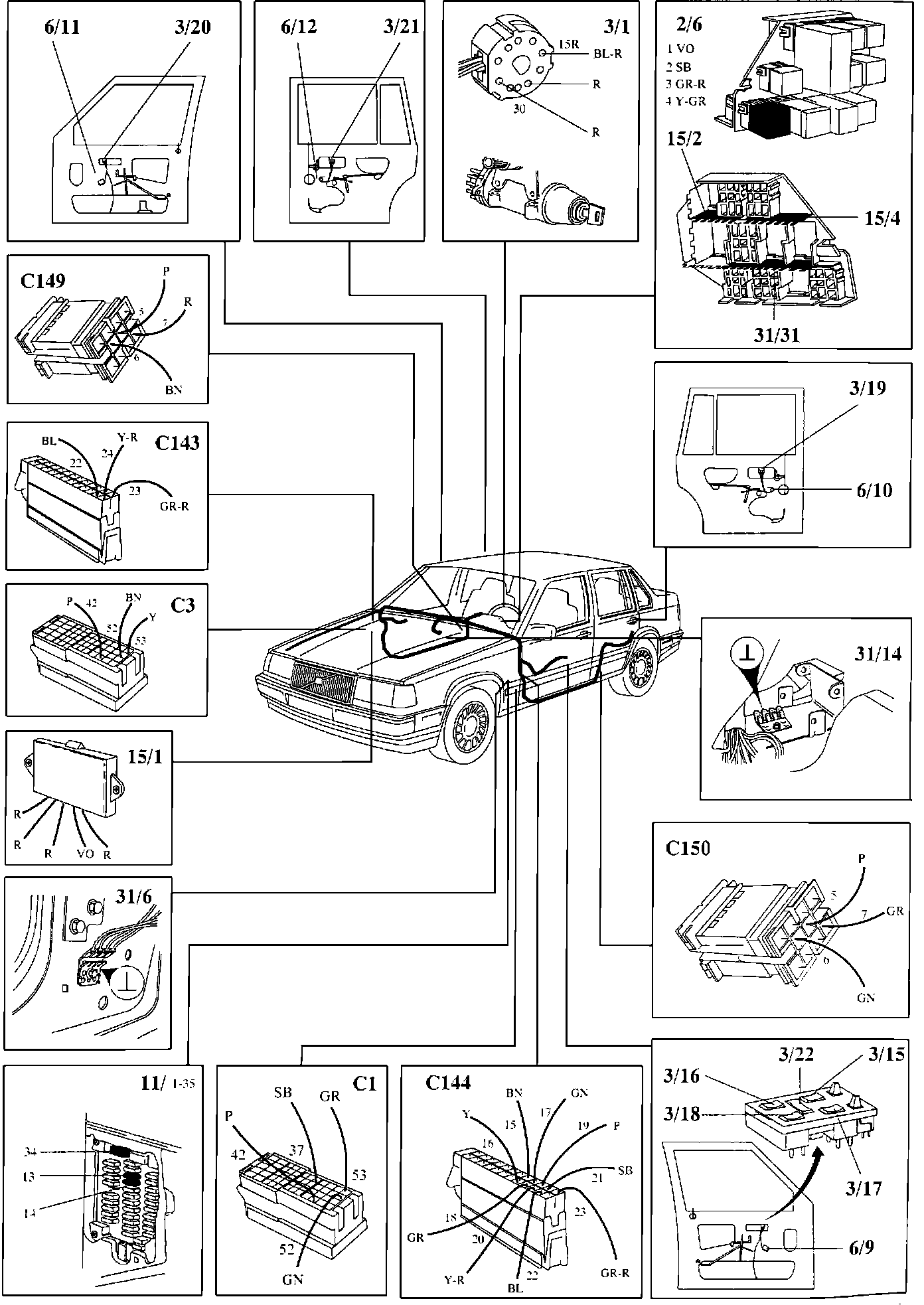

Power Window Components:





Component Locations
