Combined Instrument
Combined Instrument

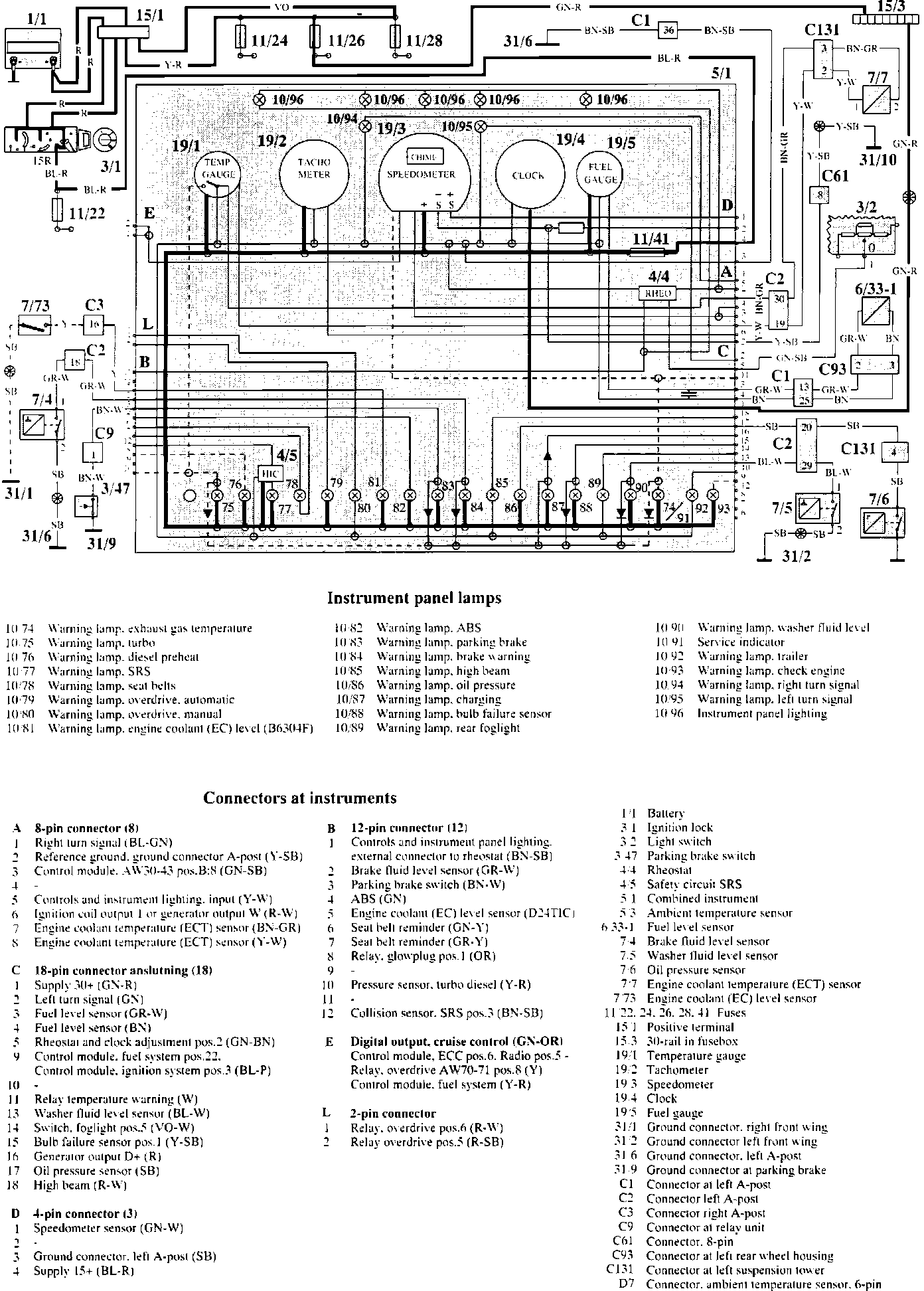

Combined Instrument Wiring:
Wiring Diagram

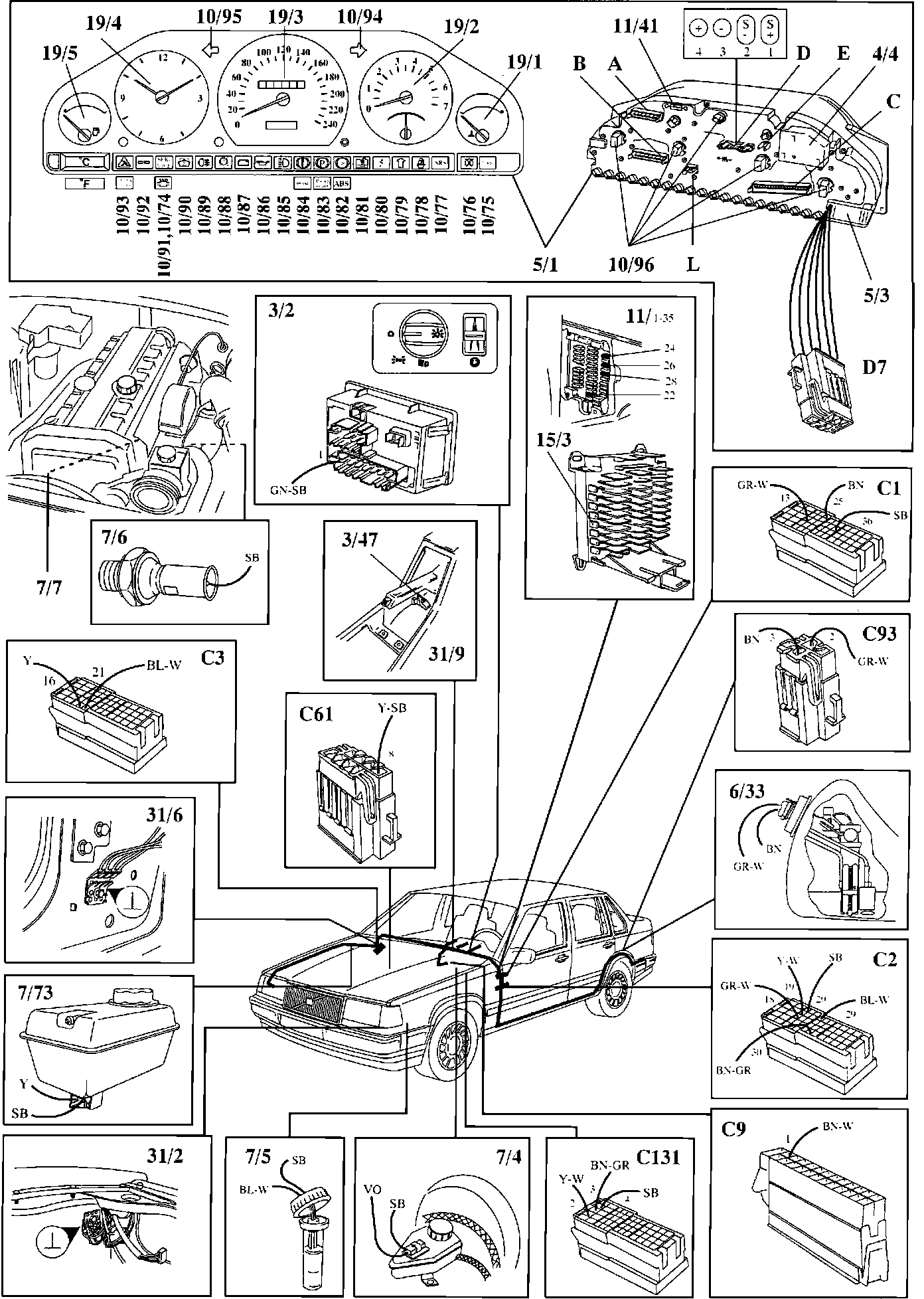

Combined Instrument Components:
Component Locations
