Lighting, Instrument and Controls

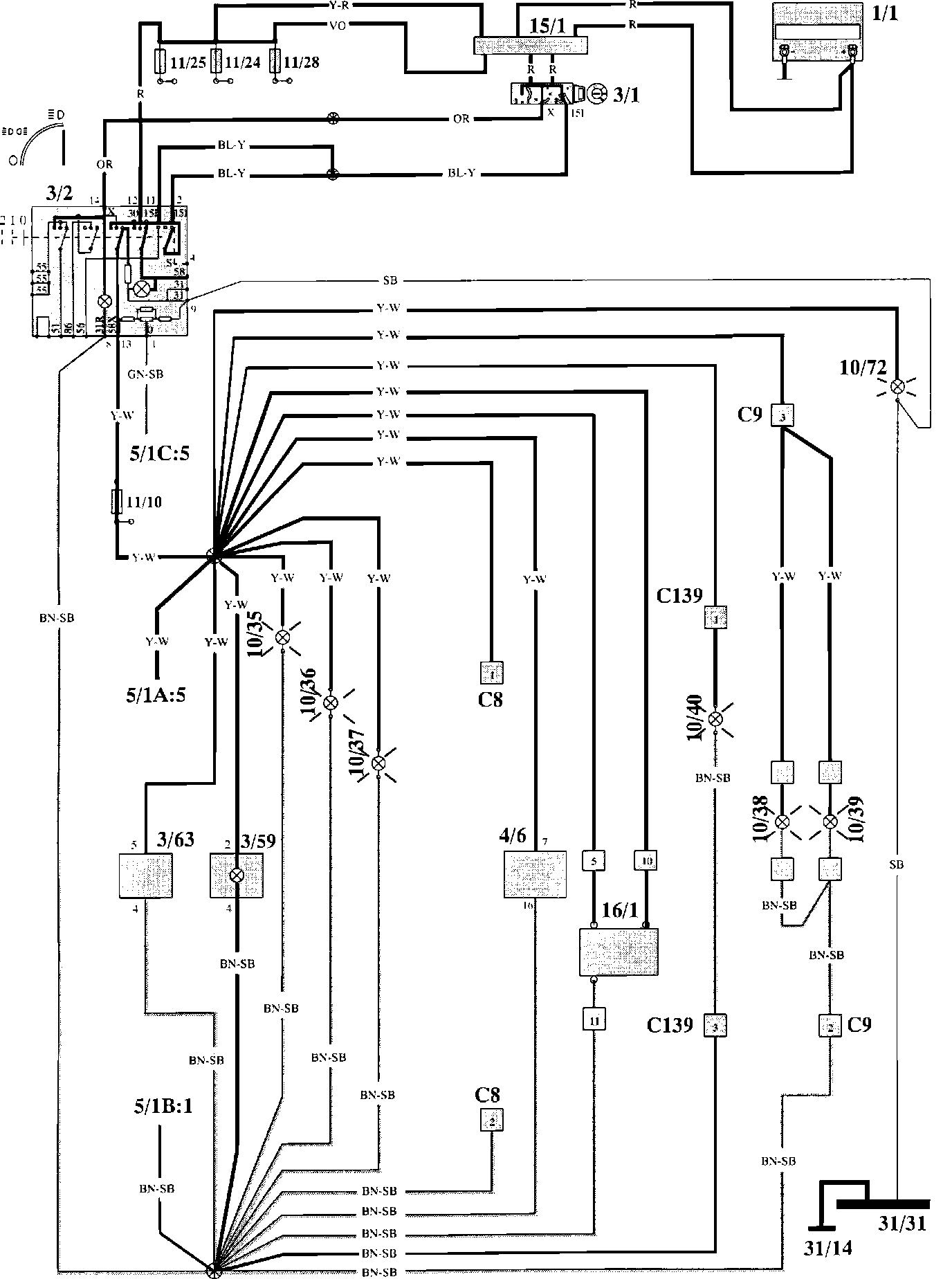

Control Illumination Wiring:

Wiring Diagram

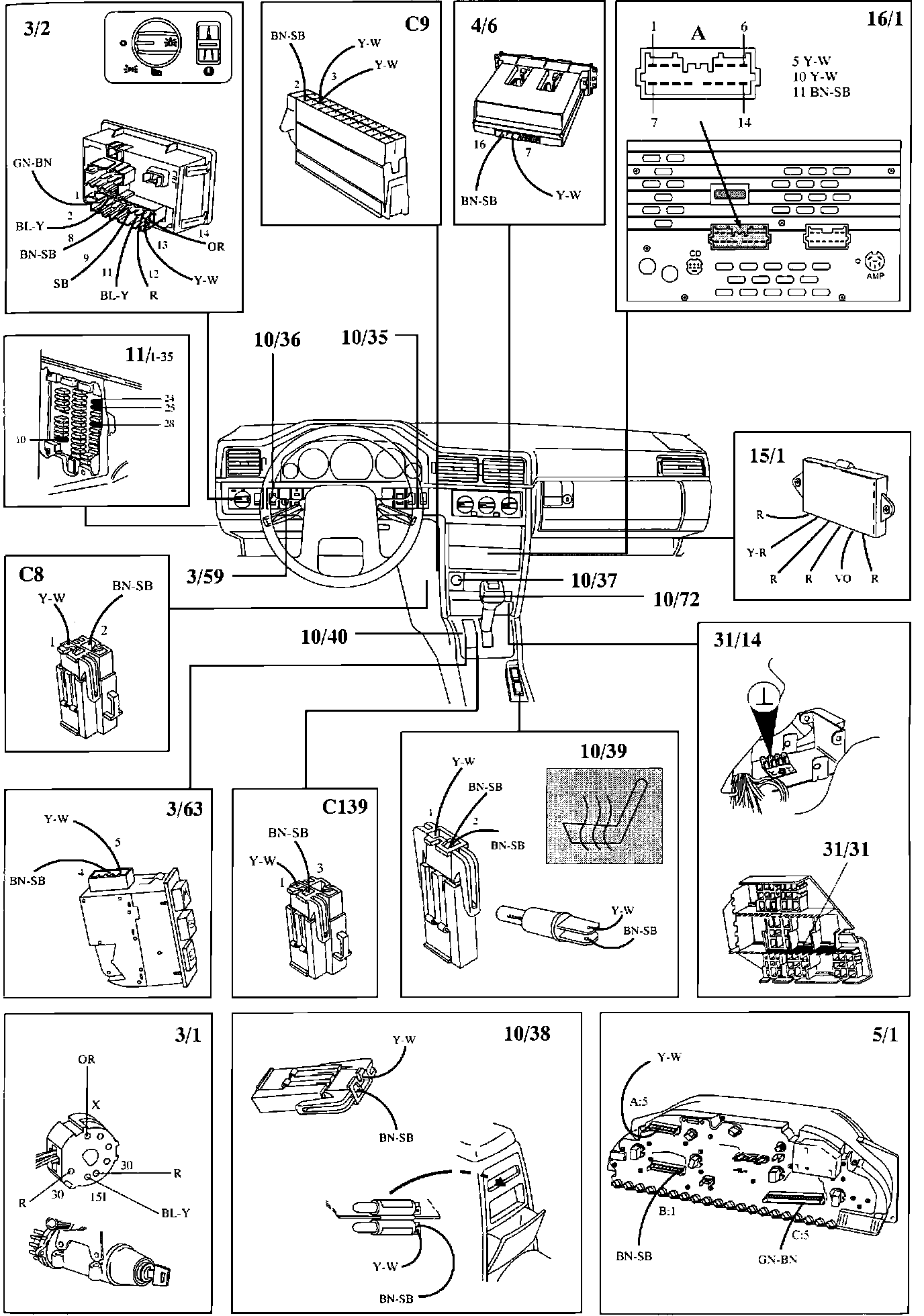

Control Illumination Components:

Component Locations
