Electrical Diagrams

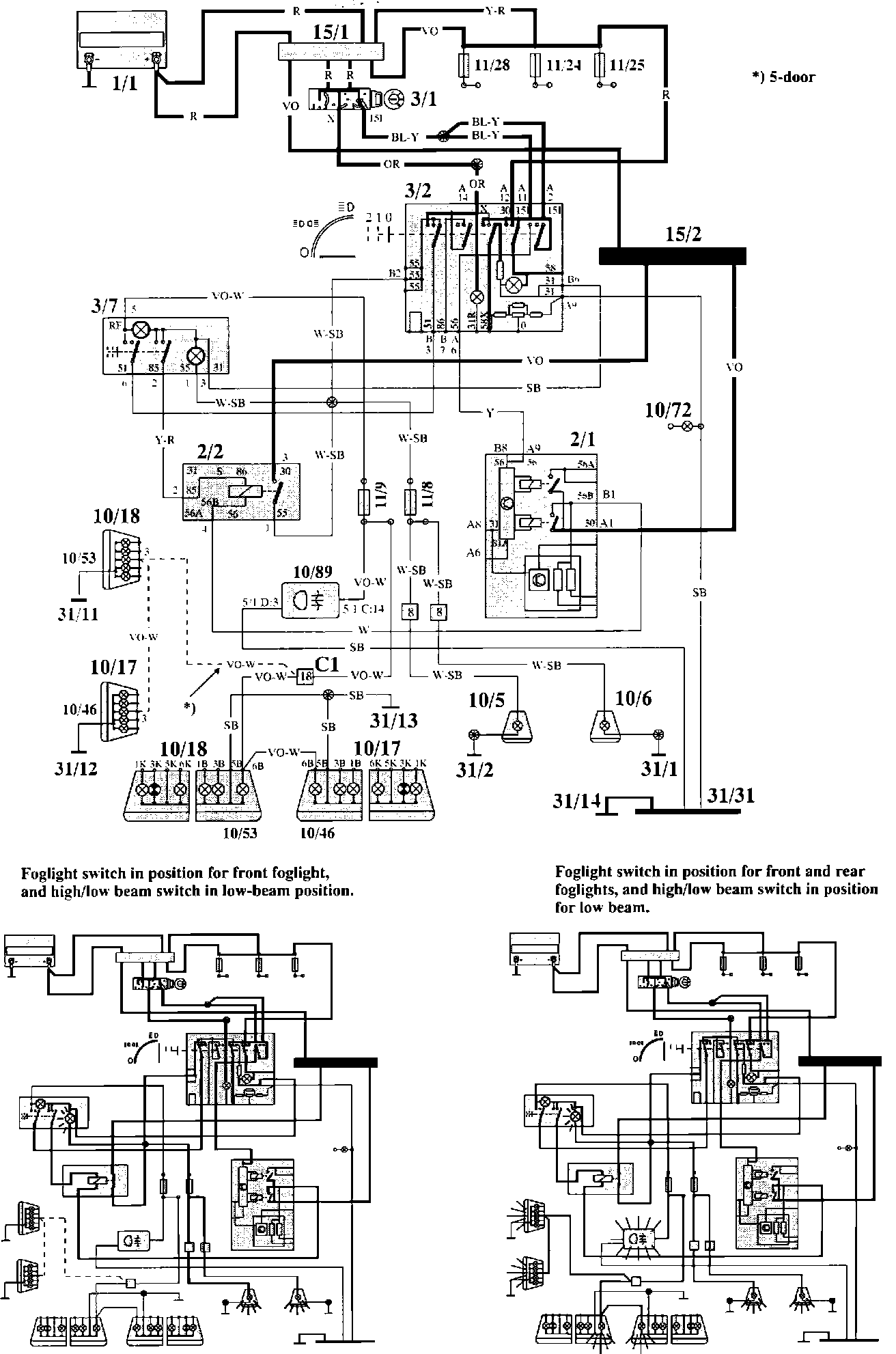

Fog Light Wiring:





Wiring Diagram

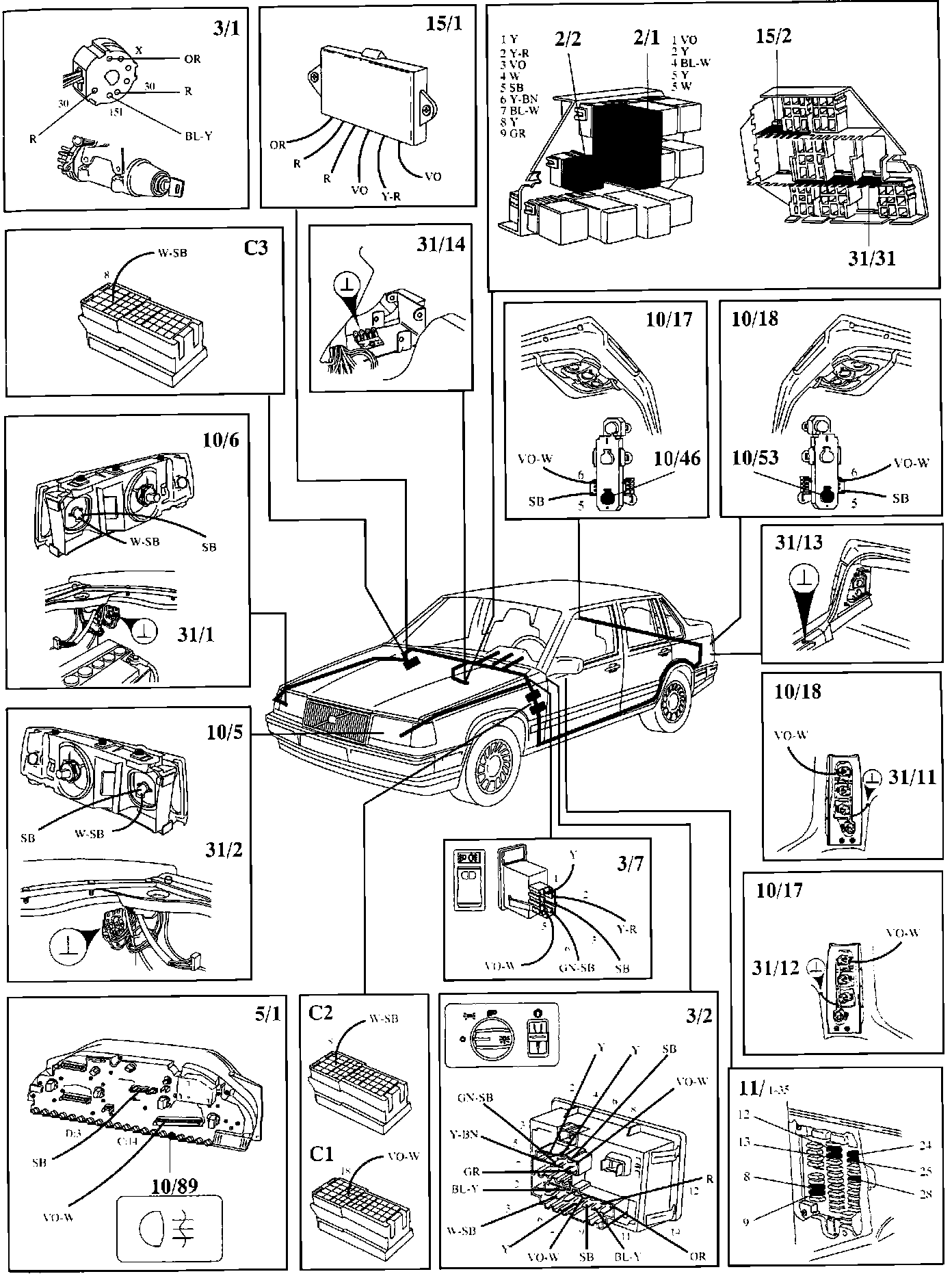

Fog Light Components:





Component Locations
