Electrical Diagrams

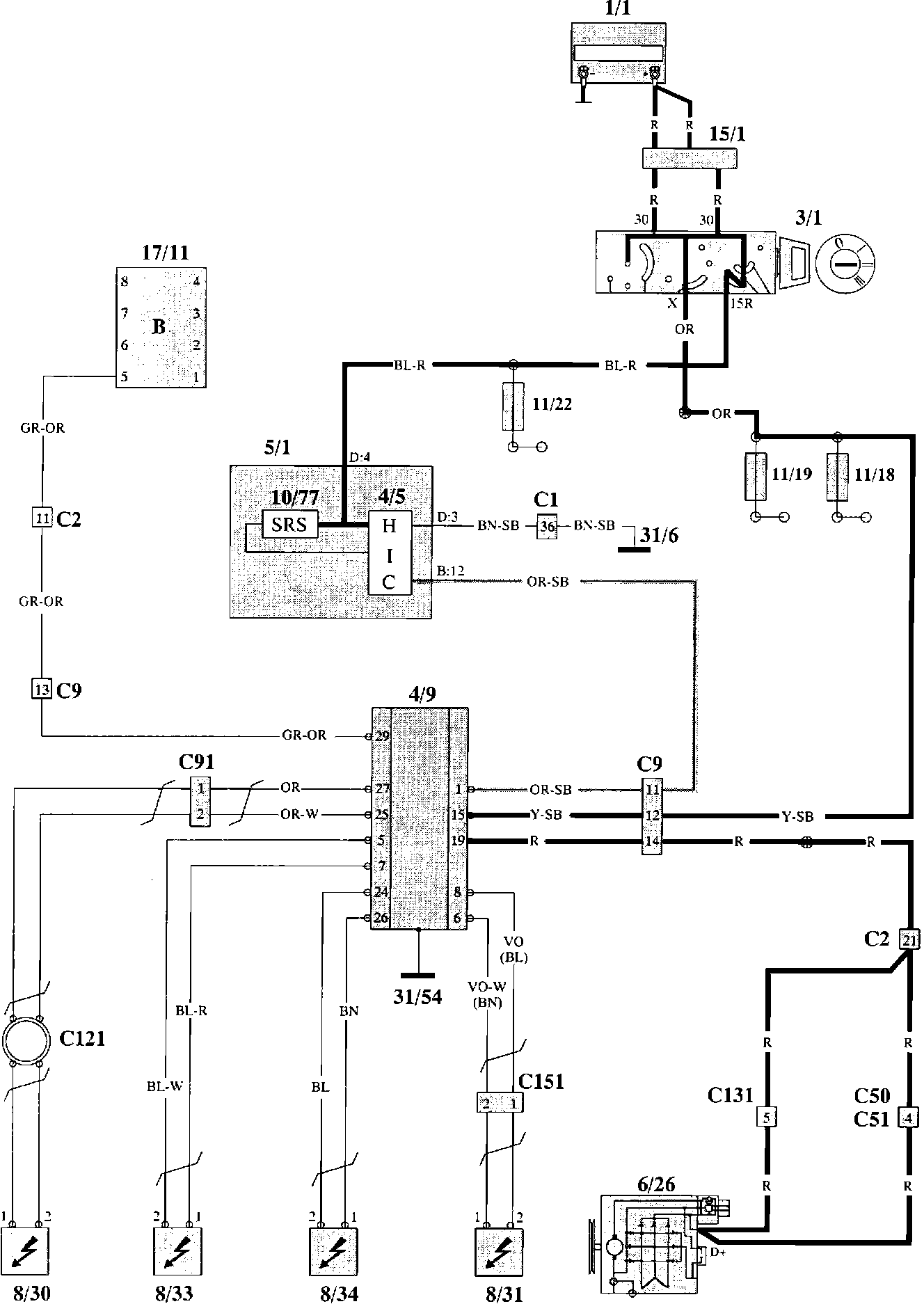

Supplemental Restraint System (SRS) Wiring:





Wiring Diagram

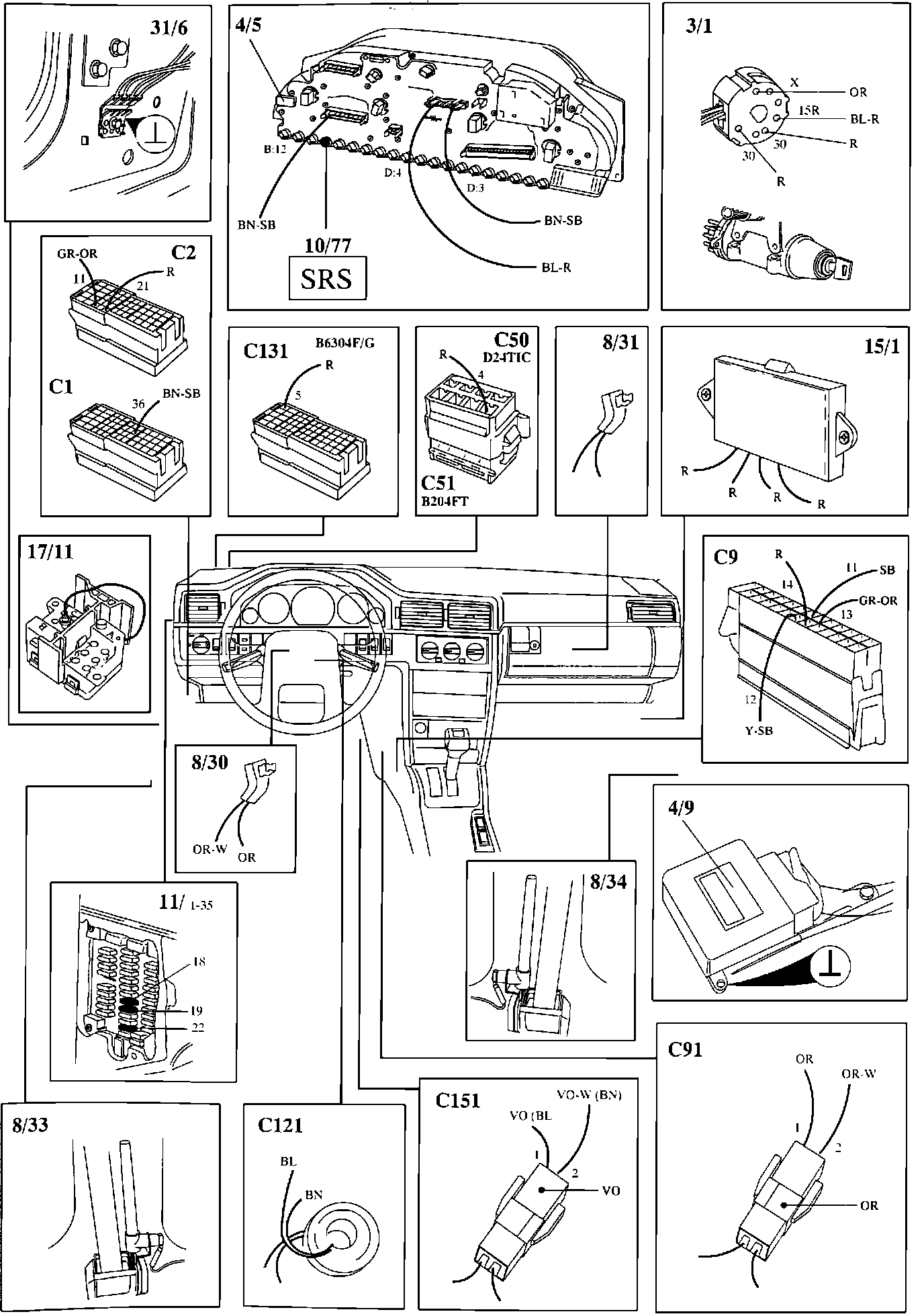

Supplemental Restraint System (SRS) Components:





Component Locations
