Electrical Diagrams


Wiring Diagram

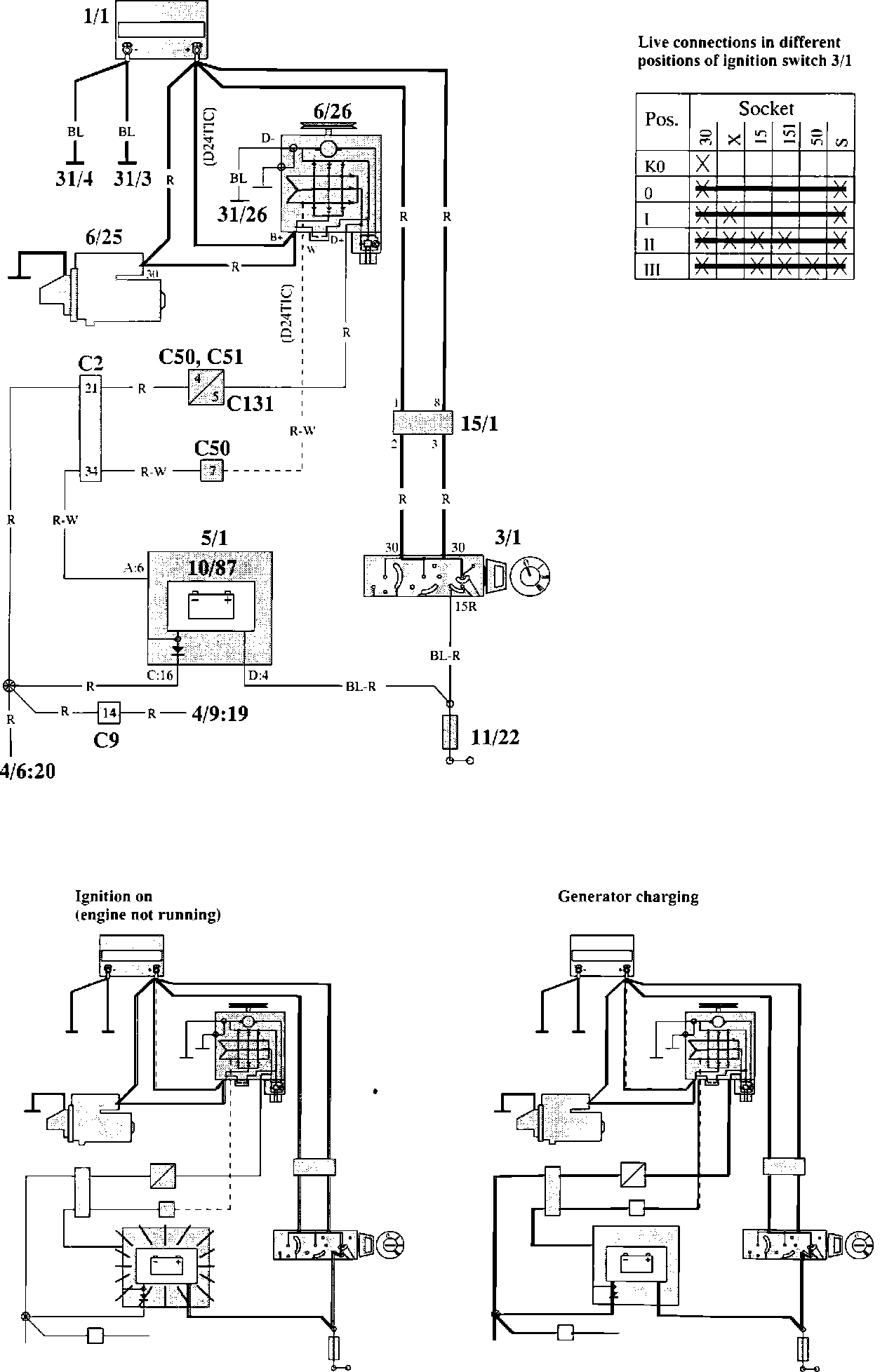

Power Supply Wiring:





Component Locations

Power Supply Components:
