Headlamp Wiper/Washer

Headlight Wiper/Washer Wiring:





Wiring Diagram

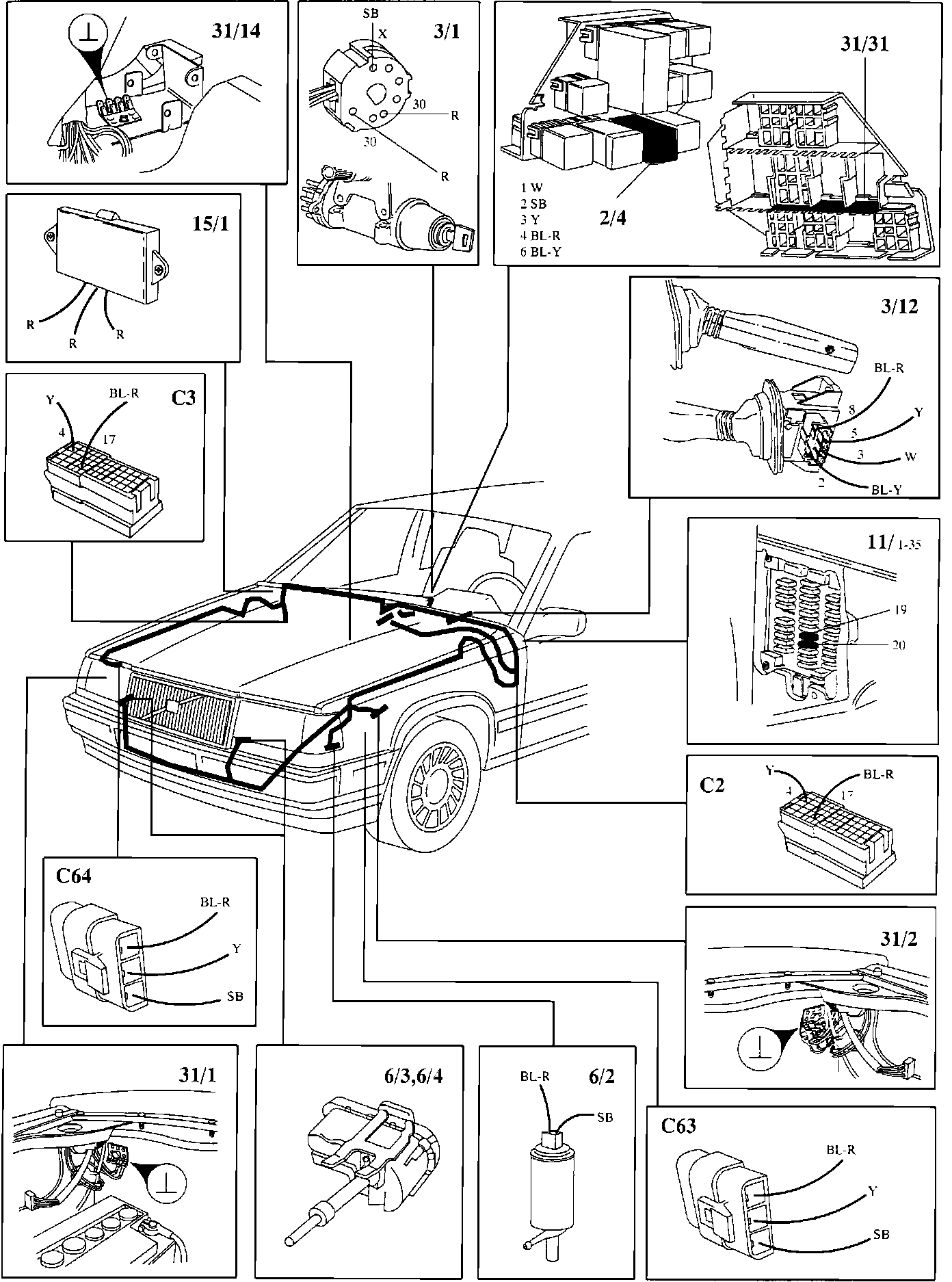

Headlight Wiper/Washer Components:





Component Locations
