Tailgate Washer & Wiper

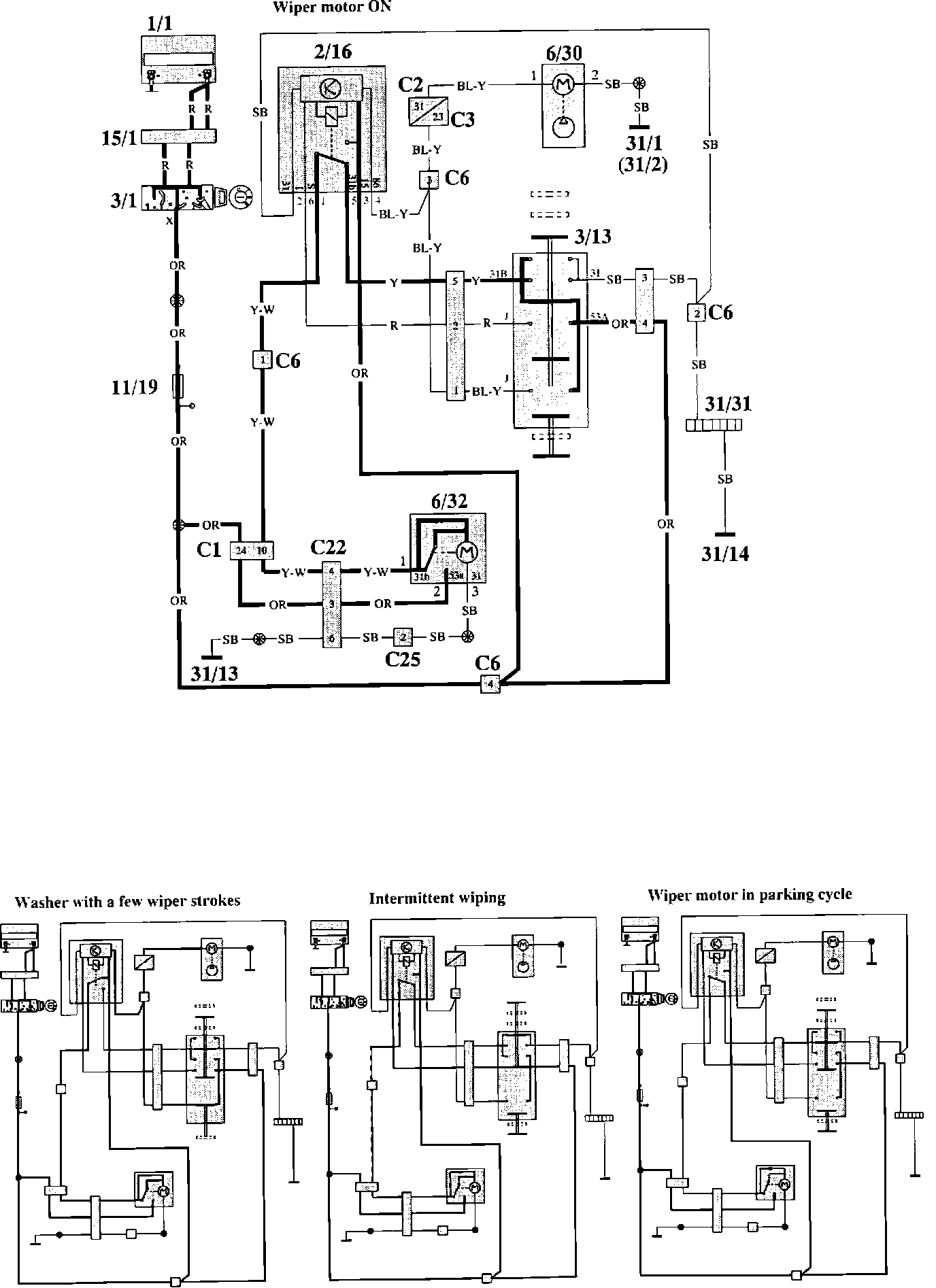

Tailgate Wiper/Washer Wiring:





Wiring Diagram

Tailgate Wiper/Washer Components:





Component Locations
