Central Locking With Dead Lock, 4-Door

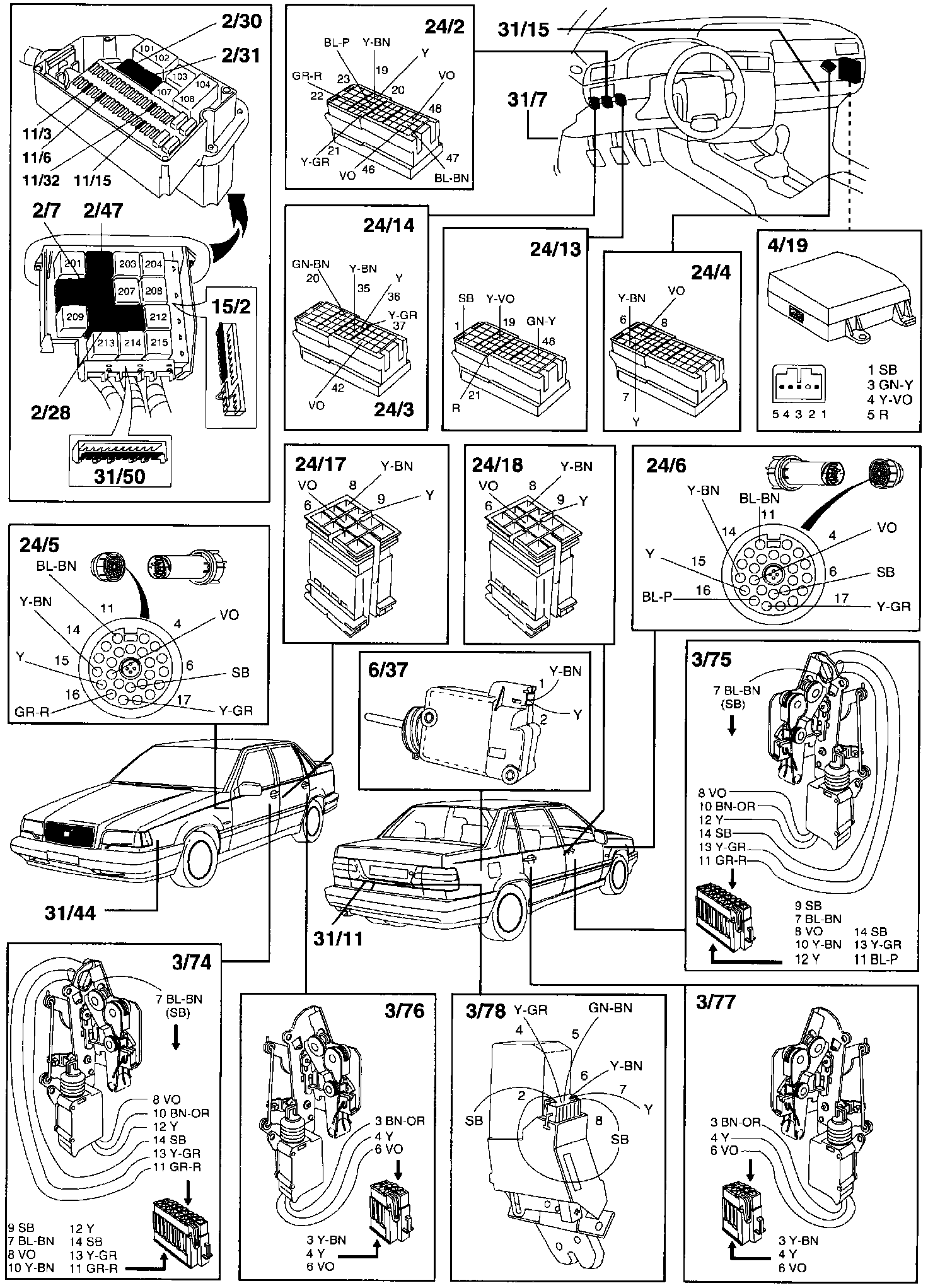

Component Location

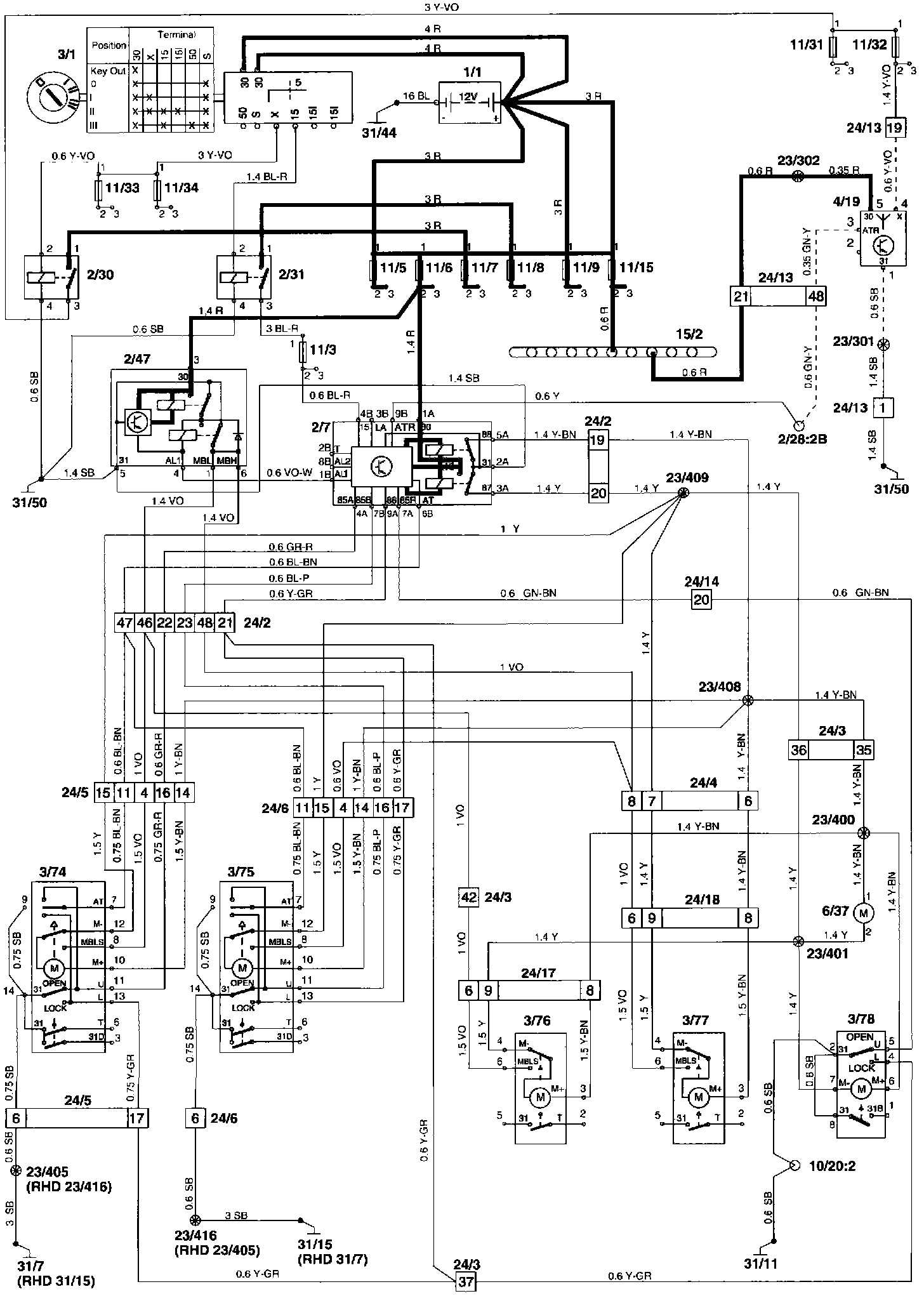

Wiring Diagram

Component I.D.List
2/7 Central lock/delayed courtesy lighting relay
2/28 Alarm relay
2/30 Overload relay X+
2/31 Overload relay 15+
2/47 Relay, deadlock setting
3/74 Lock, left front
3/75 Lock, right front
3/76 Lock, left rear
3/77 Lock, right rear
3/78 Lock tailgate
4/19 Remote control module, central lock/anti-theft alarm
6/37 Central lock motor, tank cap
11/3 Fuses
11/6 Fuses
11/15 Fuses
11/32 Fuses
24/2 Connector, 53-pin
Engine compartment harness - Firewall harness
24/3 LHD cars:
Connector, pos. 26-53 in 53-pin
RHD cars:
Connector, 53-pin
Firewall harness - Door sill harness, left
24/4 Connector, pos. 1-37 in 53-pin
Firewall harness - Door sill harness, right
24/5 Connector, 24-pin
Firewall harness - Left front door harness
24/6 Connector, 24-pin
Firewall harness - Right front door harness
24/13 Connector, 53-pin
Engine compartment harness - Instrument panel harness
24/14 Connector, pos. 1-25 in 53-pin
Engine compartment harness - Door sill harness, left
24/17 Connector, 11-pin
Rocker panel (door sill) harness, left - Left rear door harness
24/18 Connector, 11-pin
Rocker panel (door sill) harness, right - Right rear door harness
31/7 Ground point, A-post driver's side
31/11 Ground point, trunk, left side
31/15 Ground point, A-post passenger's side
31/44 Ground point, engine compartment
(ground connection battery - body)
31/50 Ground point, central electrical unit (power ground)
