Power Door Mirrors

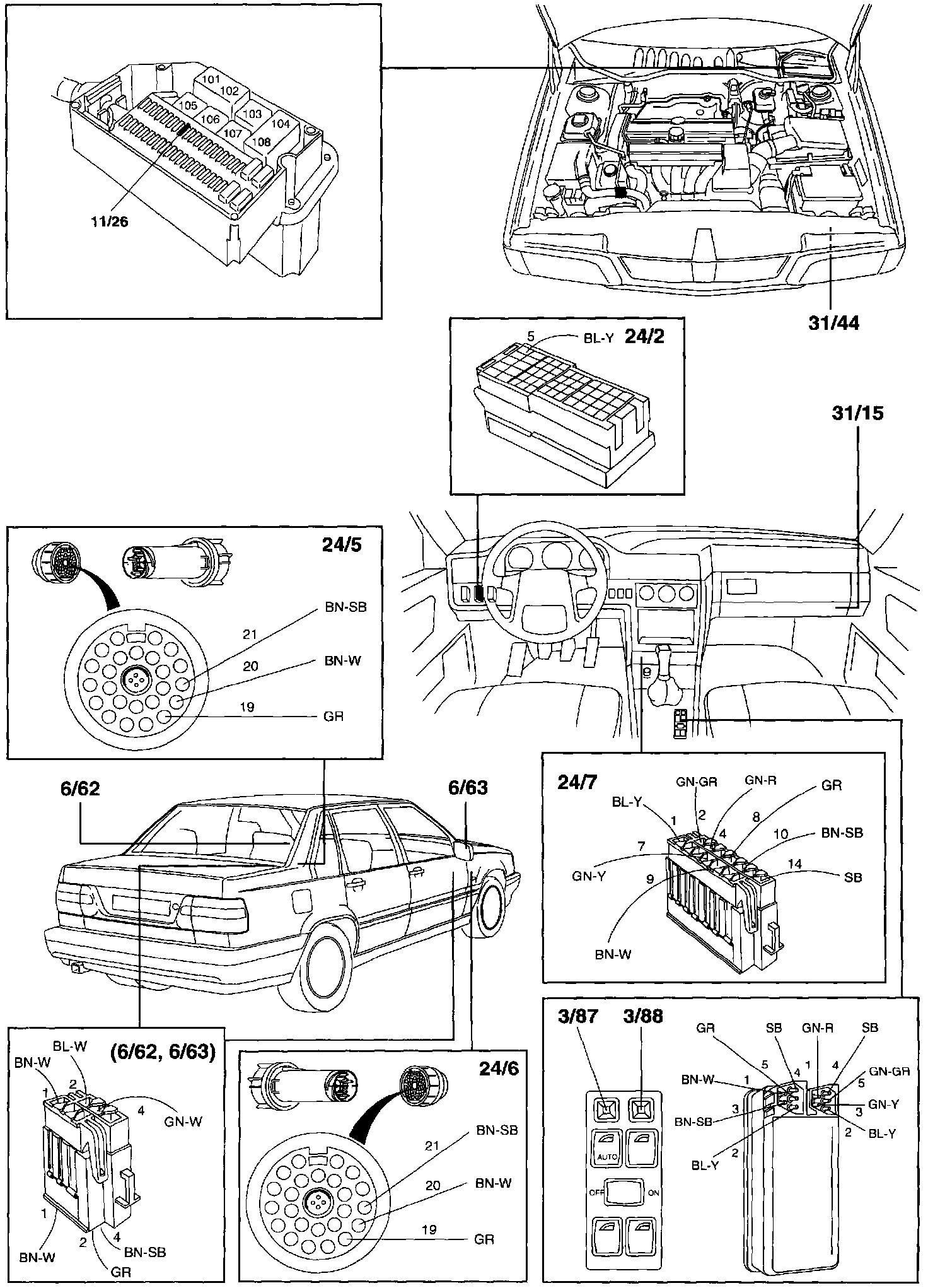

Component Location




Wiring Diagram

Component I.D.List
3/87 Switch, power door mirror, left side
3/88 Switch, power door mirror, right side
6/62 Power door mirror, left side
6/63 Power door mirror, right side
11/26 Fuses
24/2 Connector, 53-pin
Engine compartment harness - Firewall harness
24/5 Connector, 24-pin
Firewall harness - Left front door harness
24/6 Connector, 24-pin
Firewall harness - Right front door harness
24/7 Connector, 14-pin
Firewall harness - Tunnel harness
31/15 Ground point, A-post passenger's side
31/44 Ground point, engine compartment
(ground connection battery - body)
